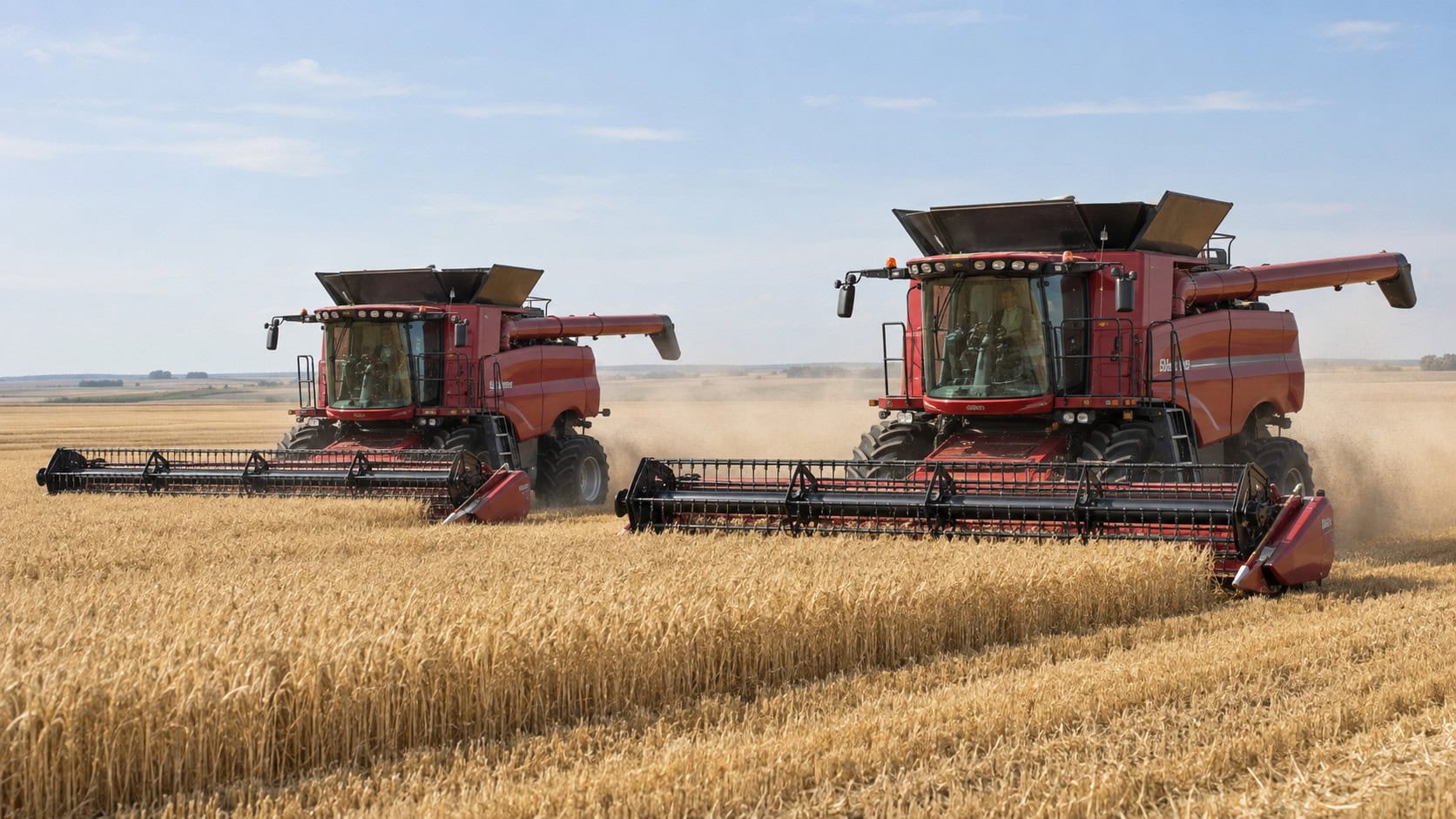

Case IH Axial-Flow 6160 vs 7160: Which 160 Series Combine Fits Your Farm?

The Case IH Axial-Flow 6160 and 7160 are the two current models in the North American Axial-Flow 160 Series.

At first glance, the difference seems straightforward.

The 7160 has more horsepower and a larger grain tank.

But the two combines share much more than they differ.

Both use the same 8.7 L FPT engine architecture, Case IH’s single AFX rotor, Cross Flow cleaning system, six-auger preparation bed, Harvest Command automation and the current precision technology environment.

That makes this a much cleaner comparison than choosing between two completely different combine platforms.

The Case IH Axial-Flow 6160 is rated at 348 horsepower, reaches 411 peak horsepower and carries 300 bushels of grain.

The Case IH Axial-Flow 7160 increases those numbers to 375 rated horsepower, 442 peak horsepower and a 350-bushel grain tank.

So the real question is not which combine has better technology.

They share most of it.

The question is whether your operation can make practical use of the additional engine reserve and 50 bushels of grain capacity that come with the 7160.

Case IH 6160 vs 7160 Quick Comparison

Specification	Axial-Flow 6160	Axial-Flow 7160
Combine type	Rotary	Rotary
Rotor system	Single AFX rotor	Single AFX rotor
Engine	FPT	FPT
Engine displacement	8.7 L	8.7 L
Rated horsepower	348 hp	375 hp
Power rise	63 hp	67 hp
Peak horsepower	411 hp	442 hp
Unloading Power on Demand boost	34 hp	34 hp
Grain tank capacity	300 bu	350 bu
Cleaning system	Cross Flow	Cross Flow
Preparation system	Six-auger bed	Six-auger bed
Harvest Command	Available	Available
Displays	Dual Pro 1200	Dual Pro 1200
Guidance	AccuGuide	AccuGuide
Multi-machine data	AccuSync	AccuSync

The pattern is easy to see.

The 7160 does not move to a larger engine family, different rotor or different cleaning system.

It gives the same basic 160 Series architecture:

• 27 more rated horsepower
• 31 more peak horsepower
• 4 more horsepower of power rise
• 50 more bushels of grain capacity

Everything else is much closer than the model numbers might suggest.

The 160 Series Is One Platform With Two Capacity Levels

This is the easiest way to understand the lineup.

Axial-Flow 6160

The smaller 160 Series option.

It makes sense when 411 peak horsepower and a 300-bushel tank provide enough capacity for the normal harvest workload.

Axial-Flow 7160

The higher-capacity version.

It keeps the same basic harvesting architecture but provides more power and another 50 bushels of onboard grain.

That means farms do not need to choose between two fundamentally different harvesting systems.

They can first decide whether the 160 Series itself is the right platform, then choose which capacity level fits better.

Same 8.7 L FPT Engine Architecture

Both machines use an 8.7 L FPT engine.

This is important because the step from 6160 to 7160 is not created by installing a physically much larger engine.

Case IH uses different power ratings within the same engine family.

6160

• 348 rated hp
• 63 hp power rise
• 411 peak hp

7160

• 375 rated hp
• 67 hp power rise
• 442 peak hp

The 7160 adds 31 peak horsepower.

That additional reserve can matter when several combine systems are demanding power at once.

Examples include:

• heavy crop through the rotor
• tough straw
• residue chopping
• unloading on the move
• rolling terrain

For a Prairie farm that regularly operates near the limit of a 6160-sized machine, the additional engine output can help maintain crop flow.

For an operation that rarely works the 6160 hard, the difference may be much less noticeable.

What Does 31 More Horsepower Actually Get You?

Thirty-one horsepower does not automatically mean a fixed percentage increase in acres per hour.

A combine is not limited by engine power alone.

Capacity can also be restricted by:

• header feeding
• rotor separation
• cleaning losses
• grain tank capacity
• unloading
• grain-cart availability
• trucking
• crop conditions

If the 6160 reaches high engine load while grain loss remains acceptable, more power can be useful.

If cleaning loss becomes excessive before the engine is heavily loaded, the 7160’s additional horsepower may not solve the real problem.

The same applies outside the combine.

If both machines spend time waiting for a grain cart, the larger engine is irrelevant during that wait.

Same Single AFX Rotor

Both the 6160 and 7160 use Case IH’s single AFX rotor.

This is the core of the Axial-Flow design.

Crop enters the combine and moves around and along one longitudinal rotor while threshing and separation take place.

That is different from the New Holland CR Series, which uses two longitudinal rotors.

It is also different from Deere’s X9 platform, which uses two rotors.

The Case IH design remains deliberately simple.

One rotor handles threshing and separation, with the rotor configuration adjusted around crop and conditions.

For farms moving between wheat, barley and canola, that adaptability is an important part of the Axial-Flow appeal.

Why the Rotor Matters More Than Horsepower

Imagine two combines with similar engine output but completely different crop-processing systems.

Horsepower alone cannot tell you which will have higher useful capacity.

The rotor determines how crop moves through the combine.

The cleaning system determines whether separated grain can be cleaned without excessive loss.

The feederhouse determines whether material reaches the rotor consistently.

This is why the 6160 vs 7160 comparison is particularly simple.

Those major systems are shared.

The main question is how hard the farm needs to push them.

Harvest Command on Both Models

Harvest Command is available on both 160 Series combines.

This means automation is not a reason by itself to move from 6160 to 7160.

The system can adjust multiple combine functions as crop conditions change.

Case IH currently supports Harvest Command on the 160 Series for crops including:

• corn
• soybeans
• canola
• barley
• wheat
• rice

That crop list makes the technology especially relevant to Canadian grain farms.

The operator chooses the harvest objective, maximum speed and power limits, then Harvest Command works around those targets.

Four Harvest Command Strategies

Case IH provides several automation strategies.

Performance

Balances grain savings and grain quality while optimizing throughput.

This is the general-purpose setting when harvest conditions are good.

Grain Quality

Places greater priority on maintaining grain quality while still considering loss and throughput.

This can be useful where cracked or damaged grain has a meaningful effect on crop value.

Maximum Throughput

Allows the combine to prioritize throughput while automation continues adjusting the machine to manage grain loss.

This can become useful when weather threatens and available harvest time is limited.

Fixed Throughput

The operator selects a desired throughput level and the combine attempts to maintain it while managing other settings.

For farms with grain handling or logistics that operate best at a predictable rate, this can be useful.

Harvest Command Does Not Make 6160 and 7160 Equal

Automation helps a combine use its available hardware more consistently.

It does not remove the physical differences between the two models.

Harvest Command cannot give the 6160:

• another 31 peak horsepower
• another 50 bushels of grain capacity

Likewise, the larger 7160 does not automatically produce a better result simply because it has more engine power.

Both can use automation.

The mechanical platform still has to match the operation.

300 vs 350 Bushel Grain Tank

This is probably the most obvious everyday difference.

Axial-Flow 6160

300 bu

Axial-Flow 7160

350 bu

The 7160 therefore carries about 16.7 percent more grain before the tank is full.

That does not increase threshing capacity.

It increases the amount of time the combine can potentially operate between unloading cycles.

That can matter in:

• long fields
• high-yielding crops
• operations with one cart covering several machines
• fields where trucks are far from the combine
• opening passes where unloading access is difficult

For a farm with excellent grain-cart coordination, the difference may be less important.

When 50 Extra Bushels Really Matter

Consider a combine working in a heavy wheat crop.

With a good cart operator, the grain cart may arrive well before either combine reaches tank capacity.

In that situation, 300 versus 350 bushels changes very little.

Now consider a farm where one cart is servicing two combines.

The cart leaves the 7160 and travels toward the second machine.

Those additional 50 bushels give the first combine more buffer before it has to slow or stop.

That is where tank capacity starts creating real productivity.

The benefit depends on logistics, not the number alone.

When the 300-Bushel 6160 Tank Is Enough

A 300-bushel tank can be perfectly adequate when:

• the combine works alone
• the grain cart stays close
• fields are moderate in length
• crop yields do not fill the tank unusually quickly
• trucks and storage are nearby
• unloading on the go is routine

There is no benefit to carrying another 50 bushels if the farm never uses that buffer.

Same Power on Demand Unloading Boost

Both machines receive the same listed 34 hp unloading Power on Demand boost.

This is an interesting detail.

Case IH recognizes that unloading adds engine load while the combine may still be harvesting.

The rotor continues processing crop.

The cleaning system continues working.

The residue system may still be chopping.

Then the unloading system begins moving grain.

Additional engine reserve helps maintain field performance while unloading on the move.

Because the 34 hp boost is the same on both models, this is another shared 160 Series feature rather than an advantage unique to the 7160.

Cross Flow Cleaning on Both Machines

The 6160 and 7160 both use Case IH’s Cross Flow cleaning system.

This is significant because cleaning capacity can become the real limit of a combine before the engine does.

Cross Flow is designed to keep crop distributed across the cleaning area when the machine works on uneven ground.

An in-cab sensor detects the terrain angle, and the cleaning system uses an elliptical movement to help redistribute crop material.

Case IH claims up to a 20 percent productivity increase from the design under the manufacturer’s referenced conditions.

That should not be treated as a guaranteed gain on every farm.

The useful idea is simple.

More evenly loaded cleaning area means more of the shoe can work effectively.

Six-Auger Preparation Bed

Both machines also use the same six-auger preparation concept.

The augers move and distribute material before it enters the main cleaning area.

Case IH states that the system can support material flow up to 5,000 bushels per hour in the manufacturer’s referenced conditions.

That is not a realistic universal field-output number for every crop.

A Saskatchewan wheat farm should not use it to calculate expected acres per hour.

The meaningful takeaway is that the system is built to distribute significant material flow evenly across the cleaning shoe.

Which Model Has the Better Cleaning System?

Neither.

At the broad platform level, they share the same Cross Flow concept.

That means the 7160’s additional engine power should not be interpreted as an automatic increase in cleaning capacity.

If a specific crop condition causes the cleaning system to become the limit, both machines may run into that limit before the 7160 can fully use its additional horsepower.

This is why actual grain-loss checks matter.

Engine load is only one part of combine capacity.

Wheat: 6160 vs 7160

Both models are strong candidates for Prairie wheat.

Wheat is officially supported by Harvest Command, and the AFX rotor can be configured around changing threshing conditions.

The decision between models depends on how demanding the normal workload is.

Choose 6160 for wheat when:

• crop volume is moderate
• 300 bushels works with the grain-cart cycle
• the engine does not regularly become the limiting factor
• the normal harvest window can be comfortably completed

Choose 7160 for wheat when:

• heavy wheat is common
• tougher evening conditions regularly increase engine demand
• 300 bushels creates too much pressure on the grain cart
• additional daily capacity has meaningful value

For heavy wheat, the additional engine reserve of the 7160 is more likely to have practical value than it is in very light crop.

Canola: 6160 vs 7160

Canola is another officially supported Harvest Command crop.

Here, the bigger combine is not automatically better.

Canola can challenge:

• feeding
• rotor load
• cleaning
• residue handling

If the practical limit is cleaning or crop feeding rather than engine power, the 7160 may not gain as much as the horsepower difference suggests.

The extra 50-bushel grain tank can still be useful in a high-yielding crop.

But the decision should come from actual machine loading and losses.

Barley: 6160 vs 7160

Barley is also supported by Harvest Command.

Grain quality and straw condition can become particularly important.

The AFX rotor can be adjusted for different crop and moisture conditions.

Both models use the same basic architecture, so the 7160’s main advantage again comes from additional capacity rather than a completely different threshing design.

If cereal straw has especially high value on the farm, a conventional straw-walker combine such as the John Deere T6 800 may also deserve comparison.

What About Peas and Lentils?

Case IH’s specific 160 Series Harvest Command material lists corn, soybeans, canola, barley, wheat and rice.

That does not mean the combines cannot harvest peas or lentils.

It means farms should not assume the full Harvest Command automation strategy is officially supported for every pulse crop without confirming the current configuration with Case IH.

For Saskatchewan farms with significant pulse acreage, this is worth checking before making automation a major reason for choosing the machine.

Same Dual Pro 1200 Display Environment

Both current 160 Series machines use the updated dual Pro 1200 display environment.

This means the 7160 does not gain a premium cab technology package simply because it is the larger model.

Operators can configure multiple screens around functions such as:

• combine settings
• Harvest Command
• guidance
• yield information
• grain quality
• machine data

The dual-screen setup is useful because modern combines generate a large amount of information.

Keeping important functions visible without constantly switching screens reduces operator workload.

Grain Quality Imaging

Current 160 Series technology includes grain quality imaging.

This gives the operator a live view of harvested grain from the cab.

It can help identify changes in:

• cracked grain
• foreign material
• sample cleanliness

It should not replace physical checks.

But it can give the operator faster feedback when conditions or machine settings change.

Again, this technology is shared across the current 160 Series.

AccuGuide and AccuSync

Both models can work with Case IH AccuGuide integrated guidance.

With the correct receiver and correction signal, Case IH advertises sub-inch-level accuracy.

AccuSync can also share guidance lines and coverage information between multiple combines.

For one machine working alone, AccuSync may not be important.

For two combines working the same large field, it can make coordination easier.

These systems are another reason why technology should not decide 6160 vs 7160.

Both can access the same broader Case IH precision ecosystem.

Current 160 Series Connectivity

The current 160 Series includes Case IH precision connectivity on qualifying machines without a recurring basic subscription for the life of the qualifying modem hardware.

Data can integrate with the FieldOps environment.

That can help farms monitor:

• machine location
• progress
• operating information
• machine health
• harvest data

For farms already using connected Case IH equipment, this can simplify fleet management.

But connectivity does not replace a dealer.

During harvest, strong local service remains extremely important.

Same High-Capacity Feeding Concept

Both combines use the 160 Series high-capacity feeder system.

Smooth feeding matters because a rotor operates more consistently when crop arrives evenly.

Large crop slugs can create:

• sudden engine-load spikes
• rotor overload
• inconsistent threshing
• cleaning spikes
• increased grain loss

A larger engine helps handle those events, but preventing them is better.

The shared feederhouse architecture means both machines begin with the same general crop-delivery concept.

Residue Management

Both models also use the same general Case IH residue-management approach.

The system can:

• chop residue
• spread residue
• form windrows for baling

This is useful on Canadian farms that may treat different crops differently.

Wheat straw might be saved.

Canola residue might be chopped and distributed across the header width.

The Axial-Flow rotor still handles straw more aggressively than a conventional straw-walker architecture, so farms with a major requirement for long cereal straw should compare actual field results rather than assuming perfect straw quality.

6160 vs 7160 for a One-Combine Farm

For a one-combine operation, reliability and harvest-window capacity can matter more than theoretical maximum throughput.

The 6160 may be enough when the farm can comfortably finish harvest with:

• 411 peak hp
• 300-bu grain capacity

The 7160 provides more insurance when:

• yields are higher
• crop is frequently tough
• available harvest days are limited
• the machine needs to cover more acres

But the larger model only has value when that extra capacity gets used.

6160 vs 7160 for a Multi-Combine Farm

The answer can change when the operation runs several combines.

A farm may intentionally use more moderate-capacity machines because:

• one cart can service several machines
• fields are spread across multiple locations
• redundancy matters
• machines need to move between fields independently

On another operation, larger machines may reduce operator requirements and simplify the fleet.

There is no universal answer.

A 7160 is not automatically a better fleet machine simply because it has more capacity.

Is 7160 Worth It Over 6160?

This is the central question.

The 7160 gives you:

+27 rated horsepower

+31 peak horsepower

+50 bushels of grain capacity

What it does not give you is an entirely new combine.

The major 160 Series technology remains common:

• 8.7 L engine architecture
• AFX rotor
• Cross Flow cleaning
• six-auger preparation
• Harvest Command
• dual Pro 1200
• guidance and connectivity options

That makes the upgrade easy to evaluate.

If the additional power and grain capacity solve actual limitations, the 7160 makes sense.

If they do not, the 6160 provides most of the same platform.

Case IH 6160 vs John Deere S7 600

The John Deere S7 600 is a natural cross-brand comparison for the 6160.

Both are current single-rotor combines positioned toward the lower end of their respective modern rotary families.

The Case IH reaches 411 peak horsepower.

Deere lists the S7 600 at 382 maximum horsepower.

Those numbers should not be treated as identical rating standards without checking the definitions used by each manufacturer.

More importantly, the machines use different rotor, cleaning and automation systems.

Dealer support and crop performance are likely to matter more than a simple horsepower comparison.

Case IH 7160 vs John Deere S7 700

The John Deere S7 700 is a similarly useful competitor for the 7160.

Both are single-rotor machines.

Both are modern mid-range combines with automation capability.

The decision becomes about:

• crop handling
• cleaning
• grain capacity
• automation
• operator preference
• dealer support

For Canadian farms, local support can easily outweigh a small specification difference.

Case IH 6160 vs New Holland CR7.80

The New Holland CR7.80 offers a different architecture.

Case IH uses one AFX rotor.

New Holland uses two rotors.

Their published engine outputs sit in a broadly similar range, which makes the rotor comparison more interesting than the engine comparison.

For farms seriously comparing them, focus on:

• actual losses
• grain quality
• tough-crop performance
• residue condition
• dealer support

Case IH 7160 vs New Holland CR7.90

The New Holland CR7.90 is the logical higher comparison.

Again, the most important difference is architecture.

The Case IH keeps the single AFX rotor philosophy.

The New Holland uses Twin Rotor.

Neither system is automatically superior.

The best fit depends on crop, field conditions and the support network around the machine.

Should You Skip 7160 and Move to 260 Series?

Some farms considering the 7160 may actually need a bigger platform.

That is where the Axial-Flow 260 Series becomes relevant.

If the operation regularly needs:

• substantially larger grain capacity
• more engine reserve
• higher overall crop-processing capacity

then moving into the 260 Series may make more sense than choosing the largest 160 Series simply because it is the next available model.

The 7160 should be viewed as the upper end of the 160 platform, not as a substitute for every larger Case IH combine.

Common 6160 vs 7160 Comparison Mistakes

Choosing by peak horsepower alone

The difference is 31 hp, but combine productivity depends on much more than engine power.

Assuming 350 bu means 7160 processes more crop

The larger tank stores more grain. It does not create threshing capacity by itself.

Assuming 7160 gets better automation

Harvest Command and current 160 Series technology are available across both models.

Ignoring grain carts

The extra 50 bushels matter most when they solve an actual cart-cycle problem.

Ignoring crop losses

A larger engine is not useful if the cleaning system or separation loss becomes the limit first.

Buying the largest model automatically

The 7160 should solve a problem. If it does not, the 6160 may be the more sensible machine.

Which One Should You Choose?

Choose the Axial-Flow 6160 if:

• 411 peak hp is enough
• a 300-bu tank fits your grain-cart cycle
• crop volume is moderate
• the machine does not regularly operate at high engine load
• you want the current 160 Series platform without unused extra capacity

Choose the Axial-Flow 7160 if:

• tough crop regularly pushes the smaller machine
• 300 bu creates too little grain-cart buffer
• higher yields are common
• your harvest window makes additional capacity valuable
• you want the highest-output current 160 Series model

Our Verdict

The Case IH Axial-Flow 6160 and 7160 are best understood as two capacity levels of the same harvesting platform.

The 6160 provides 348 rated horsepower, 411 peak horsepower and a 300-bushel grain tank.

The 7160 raises those figures to 375 rated horsepower, 442 peak horsepower and 350 bushels.

Everything else is much closer.

Both use the 8.7 L FPT architecture.

Both use one AFX rotor.

Both use Cross Flow cleaning and a six-auger preparation bed.

Both can use Harvest Command.

Both sit inside the same current Case IH precision technology environment.

That makes the decision unusually clear.

Do not choose the 7160 simply because it is the larger model.

Choose it when the extra engine reserve and 50-bushel grain tank solve actual problems during harvest.

If a 6160 already completes the farm’s harvest comfortably and spends time waiting on carts or trucks, the larger combine will not magically make the operation faster.

If the 6160 is consistently the bottleneck, the 7160 is the natural next step without leaving the proven 160 Series architecture.

Browse other machines in the Aglist combines category or see more equipment on the Case IH brand page.

Frequently Asked Questions

What is the difference between Case IH 6160 and 7160?

The two combines share the same general 160 Series architecture. The 7160 increases rated horsepower from 348 to 375 hp, peak power from 411 to 442 hp and grain tank capacity from 300 to 350 bushels.

Do Case IH 6160 and 7160 use the same engine?

Both current models use the 160 Series 8.7 L FPT engine architecture, with different power ratings.

Which has more horsepower, 6160 or 7160?

The 7160. It reaches 442 peak hp compared with 411 peak hp for the 6160.

How big is the Case IH 6160 grain tank?

The 6160 has a 300-bushel grain tank.

How big is the Case IH 7160 grain tank?

The 7160 has a 350-bushel grain tank.

Do the 6160 and 7160 use the same rotor?

Both use Case IH’s single AFX rotor architecture.

Do both models have Harvest Command?

Harvest Command is available across the current Axial-Flow 160 Series.

Which crops does Harvest Command support on the 160 Series?

Case IH currently lists corn, soybeans, canola, barley, wheat and rice in its 160 Series Harvest Command material.

Does the 7160 have a better cleaning system than the 6160?

Both use the Case IH Cross Flow cleaning concept and six-auger preparation system. The 7160’s main differences are higher engine output and larger grain capacity.

Is the 7160 worth it over the 6160?

It is worth considering when the extra 31 peak horsepower and 50-bushel grain tank solve real harvest-capacity or logistics constraints. If a 6160 already fits the operation comfortably, the upgrade may provide limited practical benefit.

Which is better for wheat, 6160 or 7160?

Both use the same basic harvesting system and support Harvest Command for wheat. The 7160 becomes more attractive where heavy crop or tough conditions regularly use the additional engine reserve.

Which is better for canola?

Both are designed to handle canola and support Harvest Command for the crop. The better fit depends on crop volume, losses, grain-cart logistics and how hard the machine is normally loaded.

Should I choose a 7160 or move to a 260 Series combine?

If the farm needs significantly more overall capacity than the 160 Series provides, the 260 Series deserves comparison. If the basic 160 architecture is enough and only additional power or grain capacity is needed, the 7160 is the more logical step.

Compare Related Combines

• Case IH Axial-Flow 6160 – 411 peak hp and 300-bu grain tank.
• Case IH Axial-Flow 7160 – 442 peak hp and 350-bu grain tank.
• John Deere S7 600 – current single-rotor Deere alternative.
• John Deere S7 700 – higher-output S7 alternative.
• New Holland CR7.80 – Twin Rotor alternative in a similar part of the market.
• New Holland CR7.90 – higher-output traditional CR comparison.
• John Deere T6 800 – conventional straw-walker alternative.
• All Combines – compare combine types, models and brands.
• Case IH – browse Case IH equipment on Aglist.

Specifications and equipment can vary by model year, configuration and market. Confirm critical details for an individual combine with current Case IH documentation, the operator’s manual or your dealer.
