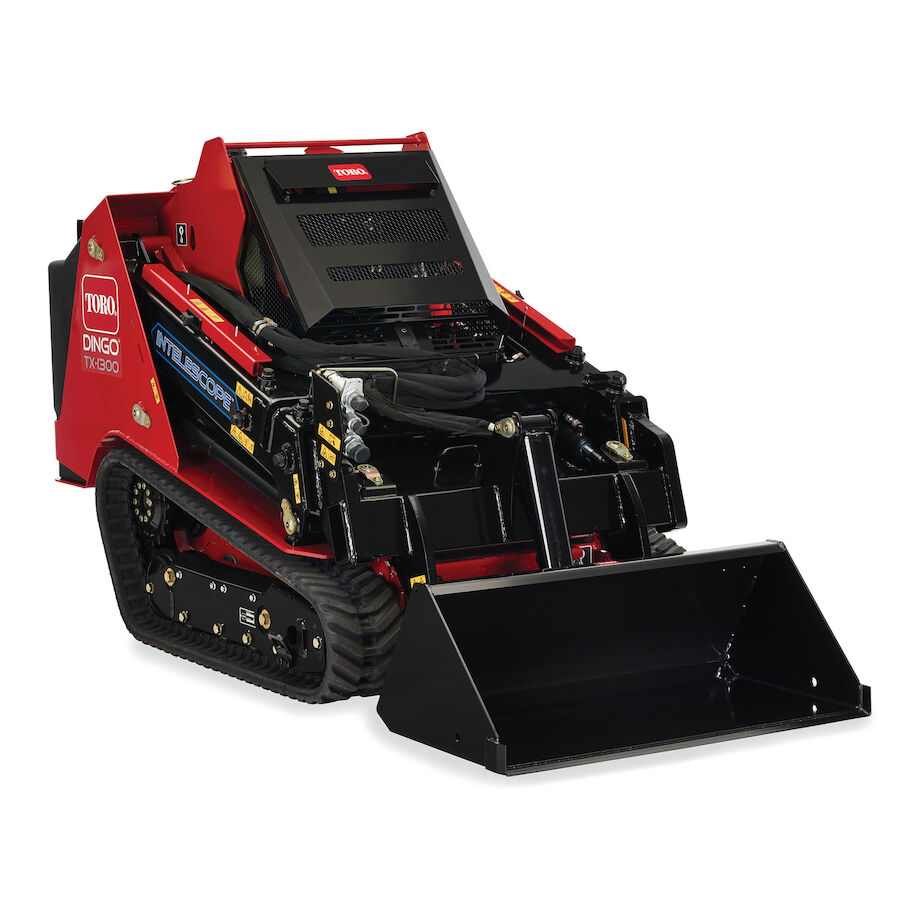

The Toro Dingo TX 1300 is a compact utility loader whose telescoping arm should be evaluated around a specific placement problem. It is worth investigating when a conventional compact carrier can approach the work but cannot put material far enough over an edge or into the required location. The extension is useful only when the corresponding approved load and attachment arrangement also fit.

For Canadian acreage, landscape and material-distribution work, the central buying rule is simple: do not combine the retracted capacity with the extended reach and assume both are available together. Toro publishes separate operating-capacity entries for the two arm conditions, and that difference can determine whether the proposed task is suitable.

The two arm conditions belong in the same table

Item	Retracted	Extended
Rated operating capacity	1,300 lb / 589.6 kg	618 lb / 280.3 kg
Hinge-pin height	89.4 in / 227 cm	109.2 in / 277.3 cm
Dump height	70.9 in / 180 cm	90.7 in / 230.3 cm

The Canadian TX 1300 page, model 22370, also lists 46-inch width and 14.3 US gpm auxiliary flow. Toro describes 26 inches of arm extension through its Intelescope system. Sources checked October 12, 2026. These summary entries are not a substitute for the exact attachment and operating information.

Begin with the destination, not the pile

A loader demonstration often begins at the material pile because collecting material is visually persuasive. For a telescoping machine, start at the other end: where must the load be placed, and what prevents the carrier from moving closer?

Draw a side view of the receiving body. Mark its height, the required landing point, the nearest suitable machine position and any obstruction. A high edge with a clear approach is different from a lower target set back behind a barrier.

Identify which part of the attachment must reach the target. For a bucket, the lip and discharge path matter. For forks, the load’s resting position and complete load geometry matter. Maximum hinge-pin height does not fully describe either task.

Then determine whether the required arm position is supported for the actual load and attachment. Reach without appropriate capacity does not solve the problem. Conversely, a load within a retracted rating may still fail the task if placement requires extension under different conditions.

Why the capacity reduction changes buying decisions

The extended entry is less than half the retracted entry in the reviewed table. The important implication is not a universal derating formula; it is that the two conditions must remain separate. Do not interpolate an operating allowance for an intermediate position unless the applicable manufacturer information provides it.

For a delivery, record the gross load including packaging and the pallet or container. Add attachment identity and relevant load-centre information. A bag’s printed contents mass does not describe the whole handled arrangement.

Suppose a hypothetical load is acceptable under one documented retracted arrangement but needs to be placed at a position requiring extension. The first approval does not carry over automatically. The destination must be assessed using its own conditions, or the handling method must change.

The ROC and tipping-load guide explains the terminology. Do not treat a tipping entry as a practical payload, and do not use an arbitrary percentage to create a new extended rating.

Extension, reach and height are different dimensions

The arm’s extension distance describes a mechanism movement. It should not be presented as an equal increase in horizontal reach at every arm angle. Likewise, the difference between two hinge-pin heights is not automatically the additional clearance beneath a bucket in its dumping position.

This is why a drawing of the actual receiving task is valuable. Keep the arm position, attachment orientation and required placement point together. If the public summary does not establish the geometry, obtain the relevant dimensional or operating information rather than combining unrelated maximums.

For repeated loading, observe the withdrawal after placement too. The machine may reach the target but still require a time-consuming repositioning sequence. The feature earns its value through the complete cycle, not only the moment when the arm extends.

Aglist’s loader-measurement guide supplies useful definitions, but its tractor examples are not TX 1300 ratings. Preserve the conditions of this carrier’s own documentation.

The wider machine changes the access discussion

The TX 1300 should not inherit a narrow-gate claim from smaller Dingo models. Its published width belongs in the initial site assessment, together with the selected tool and carried load.

Measure clear openings and the approach angle. Include hinges, posts, landscaping and any object that prevents a straight entry. Then examine the turn beyond the opening and the room needed to position the tool at the destination.

A hypothetical 48-inch opening and a 46-inch package leave two inches in total by subtraction. That is not a recommended working margin. The actual surface, alignment, protrusions and permitted operating arrangement must be assessed.

If an essential task cannot be reached, additional extension at the destination does not rescue the purchase. Consider a different route, delivery location or equipment type. The machine must solve both access and placement.

Hydraulic tools: the telescoping feature is not the power specification

A buyer interested mainly in an auger, trencher or other powered tool should begin with that tool’s requirements. Arm extension may offer little benefit to that particular job, while mounting, hydraulic supply and control arrangement may decide suitability.

Record permitted flow, pressure, return requirements, any additional control or electrical needs, tool mass and approved carrier configuration. The auxiliary entry in the specification is a screening input, not a guarantee that every compact attachment will operate correctly.

Keep traction and auxiliary circuits separate. A pump figure associated with travel is not extra supply to add to the tool circuit. A mechanically matching attachment plate is also only one part of the compatibility assessment.

The hydraulic attachment guide explains how to organise those checks. Write the exact approved attachment and installation into the quote before valuing a broad claim of versatility.

Three work patterns that deserve different demonstrations

Loading over a fixed receiving edge

Use the actual receiver or a reliable measured representation. Confirm the load and attachment arrangement before demonstrating the cycle. Observe where the material lands and whether the carrier can withdraw without an awkward manoeuvre.

If a lower or closer receiving arrangement is practical, compare it. A site change may remove the need for extension. Where the receiver cannot be changed and the approved TX 1300 arrangement fits, the telescoping feature has a clear purpose.

Landscape placement with restricted approach

Describe the load and location precisely. A bulky plant container or irregular item may have a different centre of gravity from a uniform pallet. Do not use the total mass alone to approve an unfamiliar attachment or lifting arrangement.

Plan separation from people and protect the work area using appropriate procedures. A compact machine should not depend on someone standing in a pinch area to guide a placement. The layout needs to support the permitted task.

General acreage material distribution

Map the repeated route and determine whether reach is actually the bottleneck. If most time is spent travelling between a pile and an open drop point, staging or another carrier may change the result more than extension.

Keep occasional difficult deliveries separate from routine light work. Supplier unloading or hired equipment may be a better solution for the exceptional task while a different machine serves the daily chores.

Quantify the value of reduced repositioning

Suppose a hypothetical approved arrangement saves one 20-second repositioning movement on each of 24 cycles. The arithmetic is eight minutes. That is a useful planning figure, but it is not a measured TX 1300 saving.

Now include setup, attachment changes and cleanup. If the telescoping arrangement requires extra preparation for the particular task, that time belongs in the same calculation. If it avoids repeated site changes, record that benefit too.

Use representative repeated observations rather than one unusually quick attempt. Keep material, receiver, operator and surface conditions as comparable as practical. Never create an apparent time saving by exceeding the documented operating arrangement.

Tracks, surface finish and seasonal routes

Track equipment does not guarantee an unmarked surface. Ground support, load, turning and repeated passes influence the outcome. Define the acceptable finish before the demonstration and inspect the route afterwards.

Include restoration where needed in the total job. A faster carrier movement can lose its advantage if it creates additional repair work. Conversely, do not assume another platform avoids all disturbance; compare evidence under similar conditions.

The ground-pressure guide explains why pressure alone is not a site prediction. Material staging and route selection can be as important as the running gear.

For Canadian winter use, identify the exact snow attachment and destination. Snowbanks can reduce access and change where material can be placed. Evaluate visibility and operator exposure, and follow the machine’s seasonal instructions rather than transferring a summer demonstration to icy conditions.

Alternatives to compare by task

The Bobcat L28 provides a seated articulated telescoping alternative to investigate. Its steering conditions and ratings are different, so compare the complete route and load documentation rather than only maximum reach.

A Bobcat MT100 represents another mini-loader option where the actual task does not need this extension arrangement. If substantially different handling requirements dominate, assess an appropriate larger platform with its own access and ownership implications.

A compact tractor remains a separate choice when rear-PTO or three-point work occupies most hours. A telescoping loader’s material-placement advantage does not automatically replace that equipment ecosystem.

Inspection and ownership of the extension system

For a used TX 1300, verify model and serial and obtain the corresponding instructions. Have a qualified inspection cover the extension mechanism and guidance components, lift linkage, attachment connection, tracks, drive, hydraulics and repairs.

Review maintenance records and evaluate abnormal operation or active warnings before assigning a repair allowance. These checks follow from the machine’s layout; they are not claims that the TX 1300 has a particular recurring defect.

Inspect every attachment independently and verify its approved installation. Missing identification or incomplete hardware can turn an attractive bundle into a poor fit. The value of a telescoping carrier depends on the tools and tasks it can actually perform.

For transport, include the configured machine, tools and all other carried equipment. Check the hauling and loading arrangement separately. Obtain Canadian prices for the complete package, service access and identified work, and test the ownership case at realistic utilisation.

Frequently asked questions

Can the retracted capacity be used at full extension?

No such assumption is supported. Toro publishes a separate, lower extended entry, and the exact attachment conditions still apply.

Does 26 inches of extension mean 26 inches more horizontal reach everywhere?

No. Arm position and geometry determine the relationship to the placement point.

Will it fit entrances intended for a narrow Dingo?

Do not assume that. Use the TX 1300’s complete configured dimensions.

Does the largest engine make it the best hydraulic-tool carrier?

The tool’s complete requirements and actual working arrangement decide that, not engine output alone.

What should justify choosing the TX 1300?

A measured recurring placement task that its approved extended or retracted configuration solves better than the alternatives, with access and ownership also confirmed.
