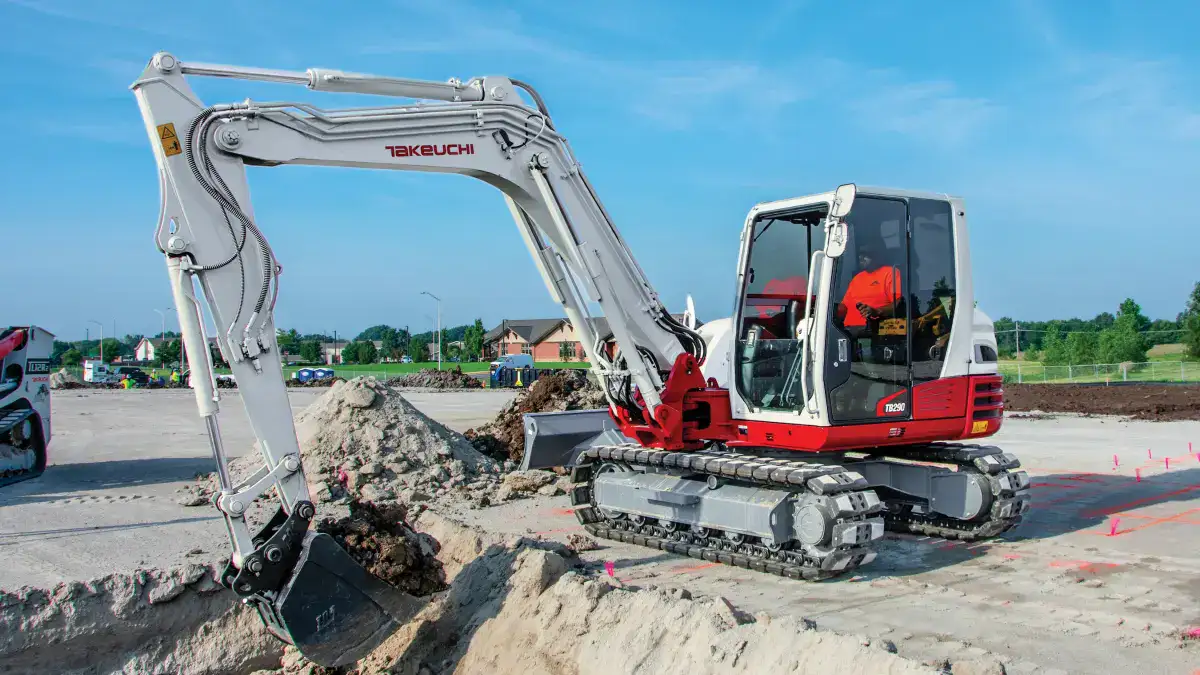

The Takeuchi TB290 is a candidate for buyers who need repeated excavation and loading from a compact excavator large enough to justify a serious transport and attachment plan. Its conventional rear layout and closed-centre, load-sensing hydraulics make coordinated working movements a useful focus for comparison. The model should be judged on completed work with the intended tool package, not on a single maximum depth or hydraulic-flow figure.

For Canadian farms and small contractors, the decision often begins with a workload that has outgrown a smaller property excavator. Before moving up, establish what the smaller machine cannot do efficiently. A genuine reach or handling constraint supports a different carrier; delays caused by material removal or scheduling may remain unchanged.

TB290 identity and the specification reference

This guide covers the North American TB290 shown on Takeuchi’s product page. The currently linked November 2020 brochure is the detailed reference used here. Do not silently substitute international TB290-2 specifications or a different boom arrangement.

Reference	November 2020 brochure	Buying significance
Engine output	69.2 hp at 2,000 rpm	Engine rating, not tool or lifting output
Operating mass, rubber / steel tracks	8,450 / 8,685 kg	Track-specific configuration
Arm length	2,130 mm	Use the matching range drawing
Maximum depth / ground-level reach	4,580 / 7,290 mm	Separate envelope measurements
Primary / secondary auxiliary flow	120 / 55 L/min	Different circuit references
Tail radius	1,650 mm	Rear-clearance planning

The current product-page headline weight differs from the dated brochure. The table therefore keeps its source basis explicit rather than blending entries from different presentations. Establish the actual machine’s serial identity and equipment before relying on any reference for transport or a purchase-critical limit.

What load sensing should change in your demonstration

The brochure identifies a closed-centre, load-sensing hydraulic system. For a buyer, the useful consequence is a reason to evaluate coordinated functions carefully. The system description alone does not prove a particular cycle time, fuel saving or sustained attachment output on your job.

Set up a representative sequence involving the movements normally used together. Observe the operator’s ability to fill, lift, swing and place material smoothly within the approved working setup. Compare the resulting work and control, rather than asking the operator to produce one unusually fast unloaded movement.

Keep the conditions comparable between candidate machines. Bucket size, material, operator familiarity and receiving position can change the outcome. If those differ, record them rather than attributing the entire result to the hydraulic architecture.

A useful test also includes the end of the cycle. Material placed where it must be moved again is unfinished work. The machine should be evaluated as part of the excavation and loading system, including the equipment that receives or removes the material.

The receiving vehicle can be the real bottleneck

When stepping up from a smaller excavator, buyers often focus on reach and bucket capacity. Those gains have limited value if the receiving vehicle cannot be positioned conveniently or leaves the machine waiting. Plan the material destination before deciding that more excavation capability is the missing ingredient.

Measure the receiving body and its intended position relative to the excavator. Include differences in standing elevation and the actual bucket and coupler. The bucket must clear, discharge usefully and return through a suitable path, not simply touch a point above the near side.

Do not confuse maximum digging height with dumping clearance. Nor should either maximum be assumed available at every horizontal reach. Use the configuration’s drawing and a practical assessment of the intended loading arrangement.

For a farm moving material around one property, several shorter handling stages may be involved. Map where the material is excavated, temporarily stored, loaded and finally placed. Removing one avoidable handling stage can be more valuable than a modest improvement in bucket-cycle speed.

Depth and reach without false margins

The 4,580 mm maximum-depth reference belongs to the documented arm arrangement. The 7,290 mm ground-level reach is another point in the envelope, not a horizontal distance available at that maximum depth. A purchase should be based on the shape and path of the recurring work.

Record the machine’s proposed standing level and several required bucket positions. Let the site plan establish appropriate positions first, then assess the machine’s reach from them. Do not force the site arrangement to fit a specification chosen before the project was measured.

The Aglist depth and reach guide explains the distinction between touching a point and completing a productive digging movement. It is particularly useful when a larger machine is being considered for a task near the limits of an existing one.

A longer reach can change the range without solving every limitation. Tool mass, lifting information, material resistance and the discharge position remain separate questions. Compare the whole configuration instead of treating one additional dimension as an automatic improvement in every task.

Conventional rear space and the access route

The TB290’s conventional rear needs a suitable rotation area. The brochure’s tail-radius entry is a starting measurement, while the front equipment and any load create additional space requirements. A compact-excavator label does not establish that the machine can operate beside any obstruction.

On a site sketch, mark the rear’s path through the required swings and the location of other equipment. If the receiving vehicle occupies the space needed for the counterweight, the problem must be resolved in the layout. It cannot be answered by the machine’s maximum digging depth.

The tail-swing comparison can help build the shortlist where clearance is restrictive. If the work area is open, evaluate conventional and compact-tail candidates on their complete fit rather than treating one category as inherently better.

Survey access separately. Track configuration, blade, turns and carried tool all affect the route. A convenient operating position is of little value if delivery requires disproportionate preparation or leaves restoration costs out of the estimate.

Rubber and steel are different equipment packages

The cited brochure lists different track choices and corresponding operating-weight references. Compare the actual machine, not an advertisement that mixes the lighter weight with a photograph of another setup. Track selection also belongs in the access, surface and transport discussion.

For a contractor crossing finished surfaces, consider the complete route and the consequences of manoeuvring as well as straight travel. For rougher work, assess the approved configuration against the material and site conditions. No track type guarantees that every surface will remain undamaged.

The Aglist track guide separates rubber, steel and pad choices. Use it to frame questions about the particular package rather than assuming that the name of the track material determines service life or the lowest ownership cost.

On used equipment, obtain a competent undercarriage assessment and realistic replacement estimates. The apparent value of a machine can change substantially when worn components are treated as immediate costs rather than deferred surprises. No universal remaining-life estimate should be assigned from a listing photograph.

Attachment hydraulics and control requirements

The primary and secondary circuit figures should remain separate. They are not a combined supply promised to one attachment, and the total hydraulic-system figure is not a substitute for either. Begin with the circuit that will actually power the tool.

Match the attachment’s accepted flow, pressure, return, controls, mounting and mass to the offered installation. For a tool with more than one function, document how each is supplied and controlled. The existence of multiple outlets does not settle that question.

The brochure describes adjustable flow and attachment presets. Use those features to support a properly commissioned package, with settings identified by tool. A saved value is not evidence that a newly purchased attachment is compatible or that a previous owner’s setup should be retained.

Keep the coupler and thumb in the same comparison. They can alter geometry and add mass. A useful package identifies which buckets work with the installed connection and companion equipment, then demonstrates the approved change and working procedures.

Lifting is a separate purchase requirement

If handling objects is important, describe the loads and required positions before shopping. Use the applicable load chart for the exact configuration, radius, height, direction and blade condition. Engine power, breakout force and the machine’s own weight are not interchangeable with lifting capacity.

Account for attachments according to the manufacturer’s chart assumptions and procedures. Do not subtract an estimated bucket weight from an unlabelled maximum and call the remainder an approved load. Likewise, a thumb’s ability to grip something does not establish the carrier’s capacity at the intended position.

A digging demonstration therefore cannot close the lifting question. Keep it as a separate acceptance item with the correct documentation and equipment. This prevents a general impression of strength from replacing the information the actual task requires.

Canadian ownership: engine, cab and service access

The documented package includes DOC and DPF after-treatment, a cab with climate control and a rear-view camera. Check the actual machine’s equipment and operation. A factory feature list does not establish that every function remains serviceable on a used example.

Use the appropriate manual for cold-weather fuel, fluids, starting, warm-up and after-treatment requirements. An enclosed station helps address operator conditions, but frozen material and changing site access need their own work assessment. Summer output should not be promised for a different season.

Establish the maintenance arrangement before buying. A machine working remotely may need a different support plan from one returning to a workshop each evening. Obtain concrete information about service access, required work and local support rather than assuming a particular parts lead time.

Review records and have warnings, leaks or unexplained behaviour investigated by a competent technician. These checks are about the condition of the individual machine. The sources used here do not establish a model-wide failure pattern, guaranteed service life or a fixed annual repair budget.

Compare whole-project economics

Suppose a hypothetical larger-machine package saves 30 minutes of excavation on each job but adds 20 minutes of transport preparation. The net time difference is ten minutes, before any change in material handling or finishing. Across 60 comparable jobs, that is ten hours rather than the 30 hours suggested by counting the excavation saving alone.

At an assumed internal value of C$100 per hour, the net example is C$1,000 before extra ownership costs. These are illustrative inputs, not TB290 test results or market rates. The calculation shows why a stronger carrier must be compared with its delivery and support requirements included.

For occasional major farm projects, hiring suitable equipment may be preferable to carrying the annual cost of unused capability. For repeat contracting, capability that removes a genuine recurring constraint can be valuable. Build either case from actual job frequency and costs.

Used TB290 inspection and alternatives

Verify that the machine is the TB290 configuration described in the offer, including serial identity, arm, tracks, blade and hydraulics. Inspect the structure, linkage, undercarriage, engine and attachment installation with a qualified evaluator. Include representative coordinated operation after the initial checks.

The TB250-2 guide offers a smaller-carrier comparison when the work may not require this scale. A smaller machine is not an equivalent substitute for every task, but it can change access and ownership logistics. Keep essential task requirements ahead of price preferences.

Frequently asked questions

Is TB290 the same specification as TB290-2?

Do not assume so. This guide uses the North American TB290 and the linked November 2020 brochure. Confirm model identity, market and installed arrangement before applying another specification sheet.

Does load sensing guarantee faster work?

No specific productivity result follows from the system name. Compare representative coordinated work, useful output and the complete material-handling sequence.

Can total pump flow be used to select an attachment?

Use the actual supplying circuit and the tool’s full requirements. Combined system flow is not a promise of flow at the attachment connections.

What should decide whether to move up to this machine?

A recurring task that the configured TB290 can perform appropriately, together with workable access, transport and support. The larger package should solve a measured limitation often enough to justify the costs it adds.
