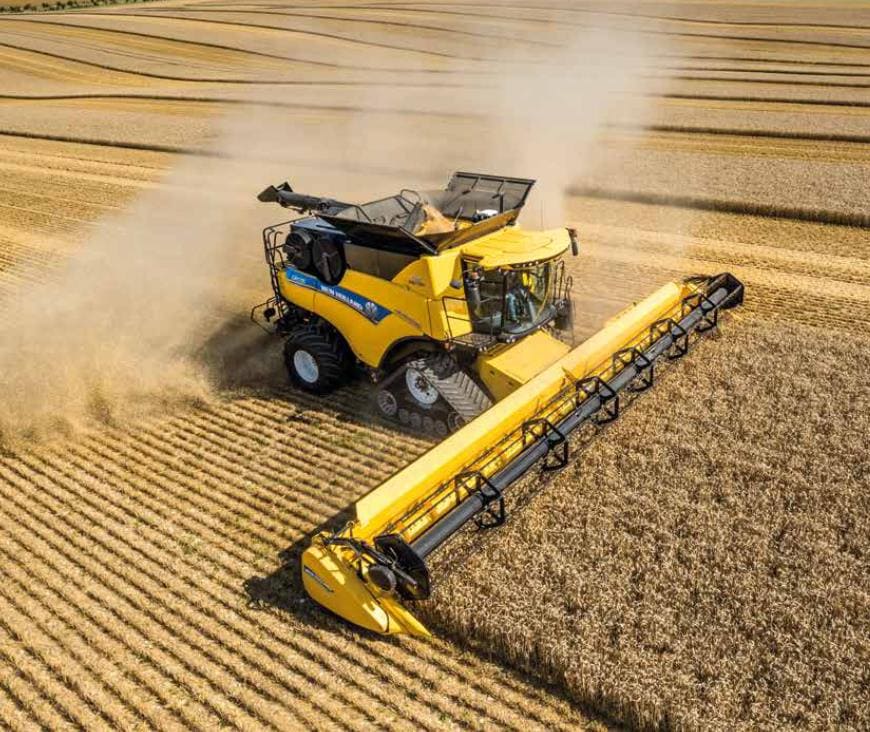

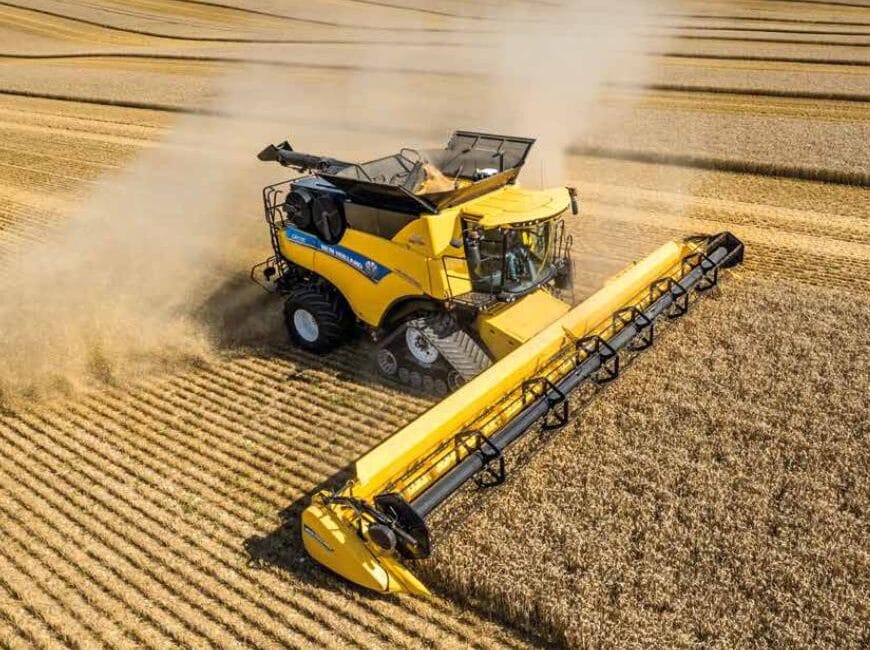

New Holland CR9.90 Combine

Introduction

The New Holland CR9.90 is a high-capacity Twin Rotor combine that sits one step below the CR10.90 in New Holland’s traditional CR Series.

With 544 gross horsepower and up to 600 maximum horsepower, this is still a very large combine. It is aimed at grain operations that need serious harvesting capacity but do not necessarily need the 700 hp of the New Holland CR10.90.

The CR9.90 uses New Holland’s long-running Twin Rotor layout, with two longitudinal rotors handling threshing and separation. The idea is straightforward: move a large amount of crop through the machine while keeping grain damage and losses under control.

For Western Canadian farms, that combination makes sense. Wheat, canola, barley and pulses can all put very different demands on a combine, and harvest conditions can change quickly between a dry afternoon and a tougher evening.

The CR9.90 has enough capacity to work on large-acre operations while still sitting below the biggest machines in the New Holland lineup.

New Holland CR9.90 Key Specifications

Specification	New Holland CR9.90
Combine type	Twin Rotor rotary combine
Gross engine power	544 hp (406 kW)
Maximum engine power	600 hp (447 kW)
Threshing and separation	Twin Rotor
Cleaning systems	Opti-Clean or Aggressive Shake, depending on configuration
Combine automation	IntelliSense available
Guidance	IntelliSteer available
Feed-rate control	IntelliCruise
Track option	SmartTrax
Residue management	Opti-Spread available
Cab	Harvest Suite Ultra
Emissions	Tier 4 compliant
Manufacturer	New Holland Agriculture

The CR9.90 is offered with different cleaning-system configurations. New Holland North America currently lists both CR9.90 Aggressive Shake and CR9.90 Opti-Clean versions. They are not different combine models, so we treat them as configurations of the same CR9.90 on Aglist.

Engine and Power

New Holland rates the CR9.90 at 544 gross horsepower and 600 maximum horsepower.

That puts it directly below the CR10.90, which reaches 700 maximum horsepower.

The 100 hp difference sounds substantial, and it is, but combine performance cannot be judged from horsepower alone.

A combine also has to feed crop evenly, thresh it, separate the grain, clean it, move that grain to the tank, handle residue and unload without creating another bottleneck somewhere in the machine.

That is why the CR9.90 is more interesting than simply calling it a 600 hp combine.

For many large farms, 600 hp already provides considerable power reserve. If the machine spends part of harvest waiting for a grain cart or working in crops that do not fully load the threshing system, moving up to a CR10.90 may not automatically produce more acres per day.

Where the larger CR10.90 begins to make more sense is when the CR9.90 can regularly be pushed close to its capacity.

Twin Rotor Threshing and Separation

The CR9.90 uses New Holland’s Twin Rotor system.

Instead of sending crop through one large longitudinal rotor, incoming material is divided between two rotors. Crop then moves rearward through the machine while threshing and separation take place.

New Holland has used the Twin Rotor concept for decades, and the CR Series is built around maintaining relatively straight crop flow through the combine.

For the operator, the important part is what happens when crop volume changes.

Heavy standing wheat may load the machine differently from canola. Tough straw late in the day creates another challenge. Pulse crops bring their own concerns around grain damage and losses.

The CR9.90 has the capacity to process a large volume of material, but settings still matter.

Rotor speed, concave clearance, cleaning settings and ground speed all need to match the crop. A large combine operated with poor settings can still lose grain.

Opti-Clean vs Aggressive Shake

This is worth explaining because New Holland currently lists the CR9.90 in both Opti-Clean and Aggressive Shake configurations in North America.

They should not be confused with separate CR9.90 models.

Opti-Clean

Opti-Clean is New Holland’s cleaning-shoe system designed to improve grain cleaning while reducing vibration transfer through the machine.

The system coordinates the movement of the cleaning components while grain and chaff move across the shoe.

For a farm harvesting a range of small grains, the goal is to maintain a clean sample without turning the cleaning shoe into the limiting factor as crop volume increases.

Aggressive Shake

Aggressive Shake is another available cleaning configuration.

It uses more aggressive cleaning-shoe movement to help distribute material across the cleaning system and maintain cleaning performance under high crop loads.

Which configuration is preferable depends on the machine setup and the crops being harvested.

The important point for someone comparing used CR9.90 combines is to check which cleaning system is actually installed rather than assuming every CR9.90 is identical.

Grain Quality

One of the reasons New Holland continues to emphasize Twin Rotor is grain quality.

Crop passes through the two rotors multiple times as grain is released from the crop mat. The objective is to separate grain without relying on extremely aggressive threshing.

New Holland reports very low broken-grain levels from the CR system under its comparative testing.

That matters with crops where damage directly affects grade and value.

But machine setup still plays a major role.

Running unnecessarily aggressive rotor settings can damage grain regardless of how the combine is designed. The advantage of a high-capacity machine is having enough threshing and separation area that the operator does not always have to compensate for crop flow by becoming more aggressive with settings.

IntelliSense Combine Automation

IntelliSense automation is available on the CR Series.

The system monitors combine operation and can automatically adjust settings as field conditions change.

New Holland says the system evaluates combine settings every 20 seconds.

The operator can choose what the system should prioritize, such as:

• throughput
• grain quality
• reduced grain loss
• a balance between several harvesting goals

This becomes useful on a machine like the CR9.90 because conditions rarely stay identical all day.

The crop may become tougher toward evening. One section of the field may be heavier than another. Yield can change as the combine moves across different soil zones.

Without automation, the operator has to recognize those changes and continually adjust the combine.

IntelliSense does not replace an experienced operator, but it can reduce the amount of constant adjustment required during a long harvest day.

IntelliCruise Feed-Rate Control

IntelliCruise is another useful part of the CR system.

Rather than maintaining one fixed ground speed regardless of crop density, feed-rate control can adjust combine travel speed based on crop load.

In lighter crop, the machine can move faster.

When crop becomes heavier, travel speed can decrease so the threshing and separation systems are not suddenly overloaded.

That is more useful than simply trying to hold the highest possible ground speed.

The goal is consistent crop flow.

For a large combine, consistent flow is often where real productivity comes from. Constantly speeding up and slowing down manually can make the machine harder to keep properly loaded.

Straw Quality

Rotary combines sometimes get a reputation for destroying straw.

That is not quite that simple.

The CR9.90 uses a relatively straight crop path and New Holland specifically promotes the Twin Rotor system for both grain and straw quality.

Rotor settings, crop moisture and how hard the combine is being pushed still determine what comes out the back.

A farm that intends to bale a large amount of straw may still prefer a conventional machine such as the New Holland CX8.90. Its straw-walker design is particularly well suited to operations where maintaining long, baleable straw is a major priority.

But choosing a CR9.90 does not automatically mean the straw is unusable.

For grain operations that occasionally bale straw while placing greater importance on combine capacity, the CR platform offers a useful middle ground.

Residue Management

At this capacity level, residue management cannot be treated as an afterthought.

A CR9.90 working with a wide header can put a large volume of straw and chaff through the machine every hour.

That material then needs to be distributed across the full harvested width.

Uneven residue can create problems during the next seeding season. Heavy strips hold moisture differently, can interfere with openers and may produce uneven soil temperatures.

New Holland offers the Opti-Spread residue-management system for the CR Series to spread material over a wide working width.

For Prairie no-till or minimum-till farms, that is an important part of the combine rather than simply a convenience.

SmartTrax

The CR9.90 can also be equipped with New Holland SmartTrax.

Tracks increase the machine’s ground-contact area and can reduce ground pressure compared with a conventional tire setup.

That can matter during a wet Prairie harvest when a heavy combine has to continue working without leaving deep ruts throughout the field.

It can also help reduce localized compaction.

There are trade-offs.

Tracks add cost, maintenance points and complexity. A farm that normally harvests in firm conditions may be perfectly happy with tires.

But for operations regularly dealing with softer ground, SmartTrax can make the CR9.90 considerably more usable when conditions deteriorate.

Harvest Suite Ultra Cab

The CR9.90 uses New Holland’s Harvest Suite Ultra cab.

Cab comfort may sound less important than horsepower or rotor size when comparing combines, but operators can spend very long days in these machines during harvest.

Visibility, noise level, seat comfort, control placement and how easily the operator can monitor the combine all matter after ten or twelve hours.

The cab integrates the combine controls with New Holland’s precision-farming and guidance systems, including IntelliSteer.

For operations that use different operators throughout harvest, automation and a clear control layout can also reduce the learning curve compared with relying entirely on manual machine adjustment.

IntelliSteer Guidance

IntelliSteer automatic guidance is available on the CR9.90.

Guidance helps the combine use more of the header width and reduces unnecessary overlap from one pass to the next.

The benefit becomes more noticeable as headers get wider.

Even a small amount of unused width on every pass adds up across thousands of acres.

But perhaps the bigger advantage is operator workload.

Instead of concentrating constantly on steering, the operator can spend more attention on header performance, grain loss, machine settings, crop conditions and coordinating with the grain cart.

CR9.90 vs CR10.90

The New Holland CR10.90 is the most obvious comparison.

Specification	CR9.90	CR10.90
Gross engine power	544 hp	639 hp
Maximum engine power	600 hp	700 hp
Threshing system	Twin Rotor	Twin Rotor
IntelliSense available	Yes	Yes
IntelliSteer available	Yes	Yes
SmartTrax available	Yes	Yes

The CR10.90 provides another 95 gross horsepower and 100 maximum horsepower.

The two combines still share the same basic harvesting philosophy.

For a farm that routinely works the CR9.90 near its limit in heavy crops, the extra power of the CR10.90 provides more reserve.

For an operation where logistics or field size prevent the CR9.90 from reaching full capacity anyway, the larger engine may not translate into much more crop harvested per day.

That is why the decision should be based on the entire harvest operation rather than horsepower alone.

CR9.90 vs New CR10

The newer New Holland CR10 makes another interesting comparison.

Despite the similar names, the CR9.90 and CR10 belong to different generations.

The CR9.90 is part of the traditional CR platform.

The CR10 is part of New Holland’s redesigned next-generation CR family alongside the New Holland CR11.

The newer machines bring a substantially redesigned harvesting platform, larger rotor architecture, TwinClean cleaning and newer automation.

That does not automatically make a CR9.90 obsolete.

For a farm looking at used equipment, acquisition cost, machine hours, service history and familiarity with the established CR platform can matter more than having the newest architecture.

A well-maintained CR9.90 remains a very high-capacity combine.

CR9.90 vs CX8.90

The CR9.90 and CX8.90 represent two different approaches to harvesting.

The CR9.90 is a Twin Rotor rotary combine built primarily around high throughput.

The New Holland CX8.90 is a conventional straw-walker combine.

If maximum harvesting capacity is the priority, the CR9.90 is the stronger fit.

If straw condition matters heavily because a farm bales large quantities for livestock feed or bedding, the CX8.90 deserves serious consideration.

There is no universally better design.

The right machine depends on what the farm needs from both the grain and the material leaving the back of the combine.

You can see the broader rotary and conventional lineup in the Aglist combines section.

Best Applications

The New Holland CR9.90 makes the most sense for:

• large grain farms with substantial annual acreage
• Prairie operations with short harvest windows
• wheat, barley, canola and pulse production
• farms wanting high Twin Rotor capacity below the CR10.90
• operations using large headers and grain carts
• farms wanting IntelliSense combine automation
• operators that need both strong capacity and reasonable straw quality

It is considerably more combine than many smaller farms need.

That is not a criticism of the machine. It simply means the CR9.90 works best when the acres, headers and grain-handling system are large enough to keep it productive.

What to Check on a Used CR9.90

Used CR9.90 combines can now vary considerably in hours, condition and configuration.

Do not judge one only by engine hours.

Check:

• separator hours
• rotor and concave wear
• feeder components
• elevator chains and sprockets
• unloading system wear
• cleaning-shoe condition
• bearings and drive components
• chopper and residue components
• track condition if equipped with SmartTrax
• maintenance and repair records
• which cleaning system the machine has

Crop history matters too.

A combine that has spent years working in abrasive or difficult crops can show wear differently from one that harvested easier conditions even when the hour meters look similar.

A documented maintenance history is worth paying attention to on a machine this complex.

New Holland CR9.90 Reviews & Ratings

Owner experience becomes especially useful with combines like the CR9.90 because specifications cannot tell you everything.

On Aglist, the Reviews & Ratings section is intended to show how these machines perform outside the brochure: how they handle wheat and canola, how much adjustment they require as conditions change, whether IntelliSense works well in real fields, how the residue system performs with wide headers, and what owners see for reliability as separator hours increase.

If you operate a CR9.90, adding your experience can help another farm understand what ownership is actually like.

Is the CR9.90 Still Worth Considering?

Yes.

The arrival of the CR10 and CR11 changes where the CR9.90 sits in New Holland’s lineup, but it does not change what the machine can do.

Six hundred maximum horsepower and Twin Rotor threshing still put the CR9.90 firmly in high-capacity territory.

For a farm shopping the used market, that can actually make the machine more interesting.

You can get substantial harvesting capacity without necessarily moving into the cost and complexity of New Holland’s newest generation.

Condition matters more than the badge at that point.

A clean CR9.90 with a strong service history can make considerably more sense than a newer combine that stretches the machinery budget without providing capacity the farm can actually use.

Final Thoughts

The New Holland CR9.90 occupies a useful place in the CR lineup.

It is powerful enough for serious large-acre harvesting but sits below the CR10.90, giving farms another option before moving to the biggest machine in the traditional series.

Its real strengths are not just the 600 hp maximum output. They are the combination of Twin Rotor threshing, high crop-flow capacity, available IntelliSense automation, guidance and flexible residue management.

For large Western Canadian grain operations, that makes the CR9.90 a legitimate high-capacity harvest machine.

The key question is not whether it is big enough.

For most farms, it clearly is.

The better question is whether the rest of the harvest operation can keep a machine of this size moving.

Frequently Asked Questions

How much horsepower does the New Holland CR9.90 have?

New Holland North America rates the CR9.90 at 544 gross horsepower and up to 600 maximum horsepower.

Is the CR9.90 a rotary combine?

Yes. The CR9.90 uses New Holland’s Twin Rotor system with two longitudinal rotors for threshing and separation.

What is the difference between the CR9.90 and CR10.90?

The biggest obvious difference is engine power. The CR9.90 reaches 600 maximum horsepower, while the CR10.90 reaches 700 hp. Both belong to New Holland’s traditional Twin Rotor CR family.

Is CR9.90 Opti-Clean different from CR9.90 Aggressive Shake?

They are different cleaning-system configurations of the CR9.90 rather than completely different combine models. New Holland North America currently lists both versions.

Does the CR9.90 have IntelliSense?

IntelliSense combine automation is available on the CR Series. It can automatically adjust machine settings as harvesting conditions change.

Can the CR9.90 use tracks?

Yes. SmartTrax is available for CR Series combines and provides a larger ground-contact area than a conventional tire arrangement.

What is the difference between the CR9.90 and the new CR10?

They belong to different generations. The CR9.90 uses the established CR platform, while the CR10 is part of New Holland’s newer next-generation CR family together with the CR11.

CR9.90 or CX8.90: which is better?

The CR9.90 is the better fit when high rotary harvesting capacity is the priority. The CX8.90 uses a conventional straw-walker design and can make more sense for farms that place a high value on straw condition for baling.

Is the CR9.90 suitable for Saskatchewan and Alberta grain farms?

Yes, particularly for larger operations. Its high capacity, Twin Rotor system and available automation fit farms harvesting substantial wheat, canola, barley or pulse acreage during a relatively short Prairie harvest window.

Related

• New Holland CR10.90 – the next model up in the traditional CR Series with up to 700 hp.
• New Holland CR10 – the newer next-generation CR combine below the CR11.
• New Holland CR11 – New Holland’s top next-generation Twin Rotor combine.
• New Holland CX8.90 – the top conventional alternative for farms that value straw quality.
• Combines – compare rotary and conventional combines on Aglist.
• New Holland – browse more New Holland equipment.

Note: We try our best to keep specs and information accurate, but configurations can vary by model year and market. Confirm critical specifications and installed options with New Holland, the operator’s manual, or your dealer.
