John Deere 770 Specs, Reviews & Used Price Canada (2026)

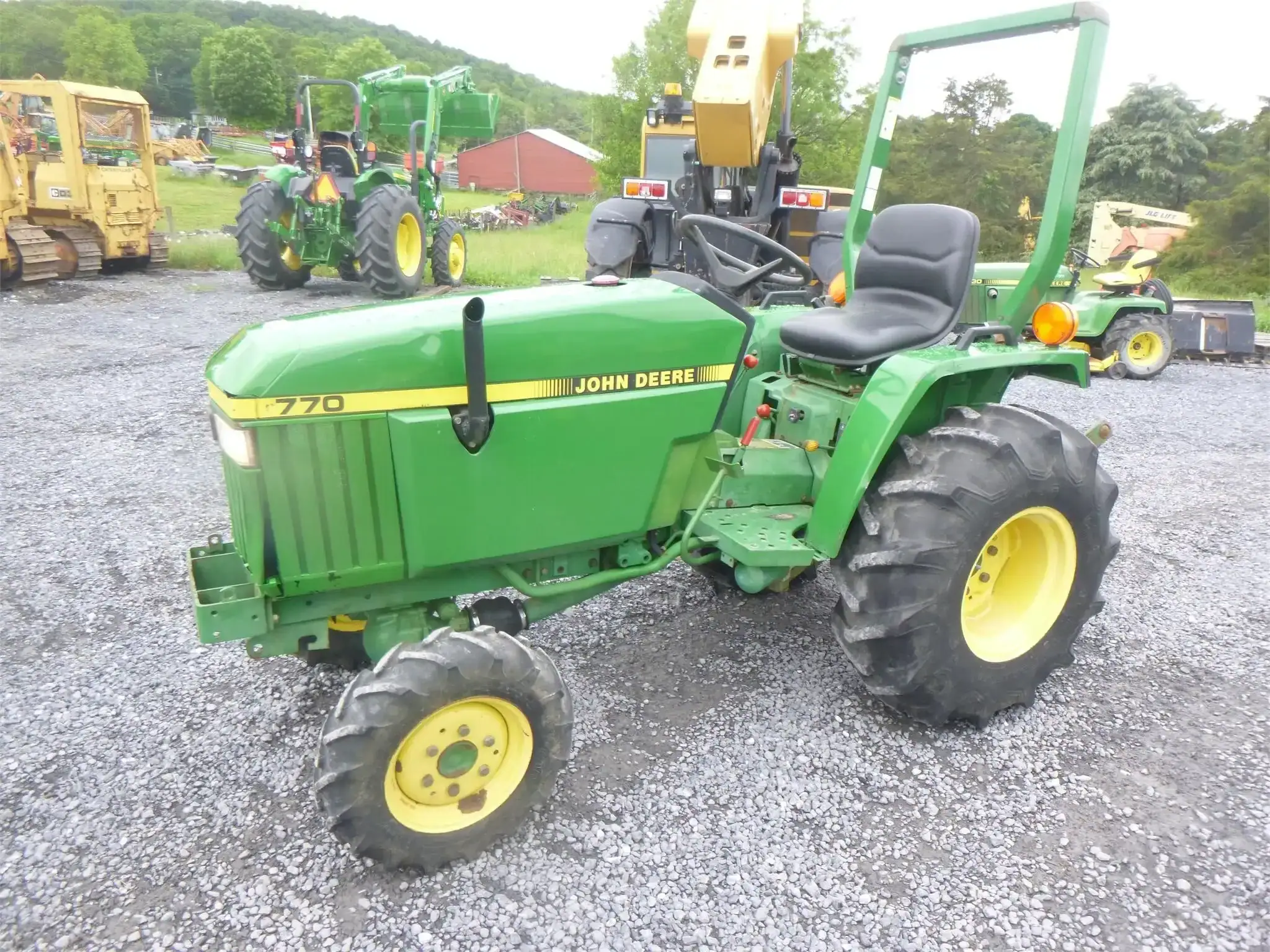

The John Deere 770 is the middle generation of Deere’s small Yanmar-built gear tractors — the 1989–1998 successor to the original 750, and the machine whose formula the John Deere 790 carried into the 2000s. It pairs a 23-horsepower Yanmar 3TN82-RJX direct-injection diesel with the family’s 8F/2R gearbox, a Category 1 hitch lifting 815 lb, a differential lock, and 2WD or 4WD (MFWD). One naming note first: Deere also builds 770-series motor graders — different machines entirely. This page covers the compact tractor.

Status disclosure up front: the 770 is long discontinued. Its mainline successor was the 4200 (1998–2001), while the budget-friendly 790 continued this exact gear-drive formula from 2000 — right down to the engine family, since late 790s use the same 82-mm Yanmar architecture introduced here. Like every tractor on this branch of the family tree, the 770 predates Tier 4 emissions entirely: no DPF, no DEF, no electronics — and dealer listings still lead with that fact.

Aglist quick take: The 770 is the quiet value pick of the small Deeres — it fixes the two things owners disliked about the 750 (adds a differential lock and offers hydrostatic power steering) while keeping everything they loved (a simple direct-injection Yanmar, a bulletproof gearbox, sub-1-tonne weight). The honest framing: the rear PTO is transmission-driven unless the optional live PTO is fitted — verify on the specific unit — and at 20 claimed PTO horses this remains a 4-ft-implement tractor. Buy the 4WD with the JD 70 loader and power steering, and you have most of a 790 for meaningfully less money.

Quick Verdict — Who the 770 Is For

Buy it if: you want the 790’s virtues at a discount — a simple, pre-emissions 23 HP diesel for mowing, loader chores, and acreage work — and you’ll hold out for the right configuration: 4WD, the JD 70 quick-attach loader, power steering, and ideally the live-PTO option, at roughly CAD $9,000–$17,000. The diff lock makes it the most sure-footed small Deere of its era in spring mud.

Skip it if: your implements are 5-ft class (that’s 850/950 territory), you need guaranteed live PTO without hunting (the 790 MFWD has it standard), or you want hydrostatic drive and a warranty — the modern John Deere 2025R is this tractor’s direct descendant in spirit and size.

Full John Deere 770 Specifications

Compiled from John Deere technical literature for the 70 Compact Series, cross-checked against reference databases and period market documentation. No widely cited Nebraska test exists for this model, so power figures are manufacturer-claimed. Verify configuration on any specific used unit — the 770’s option list was long.

Category	Spec	Value
Equipment type	Compact utility tractor	Built by Yanmar (Japan) for John Deere
Production	Model years	1989–1998 (70 Compact Series)
Lineage	Position	Successor to the 750; formula continued by the 790 (2000–2007)
Engine	Model	Yanmar 3TN82-RJX, 3-cyl liquid-cooled diesel, direct injection
	Displacement	83.1 cu in (1.4 L); 82 mm bore × 86 mm stroke
	Rated power	23 HP (17.2 kW) @ 2,600 rpm (claimed)
	Compression / firing order	18.1:1 / 1-3-2
	Cold-start aid	Factory intake pre-heater
PTO power	Claimed	20 HP (14.9 kW)
Emissions	Aftertreatment	None — pre-Tier 4 (no DPF, no DEF)
Transmission	Type	8F/2R unsynchronized sliding gear, dry disc clutch
Drive	Options	2WD or MFWD (4WD); differential lock
Steering	Type	Manual; hydrostatic power steering optional
Brakes	Type	Dry shoe
Hydraulics	Type	Open centre, 2,050 psi; 5.6 gpm implement pump (up to 9.9 gpm total with power-steering pump)
3-point hitch	Category	1
	Lift	815 lb (370 kg) at 24 in. behind link ends
Rear PTO	Type / speed	Transmission-driven standard; live PTO optional; 540 rpm
Mid PTO	Availability	Optional, 2,100 rpm (60-in. mid-mount deck)
Fuel	Tank	6.3 gal (23.8 L)
Oil / coolant	Capacity	4.2 qt / 5.1 qt
Electrical	System	12 V; 35/40 A alternator
Weight	Shipping	1,930 lb (2WD) to approx. 2,105 lb (4WD, as equipped)
Dimensions	Wheelbase / length / width	61 in. / 111 in. / 52.5 in. (4WD)
Tires	Standard ag	4.00-15 front (2WD; 4WD fronts larger), 9.5-24 rear; turf options common
Front loader	Factory match	John Deere 70 quick-attach (60-in. bucket typical; factory joystick offered)
Backhoe	Factory match	John Deere 7 quick-attach, frame-mounted; aftermarket subframe support is thin for this model
Mower	Mid-mount	60-in. 3-blade deck (mid-PTO units)
Operator station	Type	Open station, 2-post ROPS
Mainline successor	Model	John Deere 4200 (1998–2001); gear-drive formula continued by the 790

The option list is the buying guide. Unlike its x50 predecessors, the 770 could be ordered plain or genuinely well equipped: MFWD, hydrostatic power steering, live PTO, mid PTO, the 70 loader with factory joystick, the 7 backhoe. Two 770s can be the same tractor on paper and CAD $6,000 apart in the real world — decode the configuration before you compare prices.

Owner Reviews & Ratings on Aglist

Deere’s brochure numbers are thirty-five years old; owner experience isn’t. As owners share their history on Aglist, the rating system tracks:

• Reliability — the 3TN82’s record, cold-start behaviour with the factory pre-heater
• Transmission and PTO — gear engagement, and whether the live-PTO option changed daily life
• Loader performance — the JD 70 quick-attach in real chore work
• Parts and service — sourcing for a 1990s Yanmar-Deere in your region
• Value for money — cost per year of ownership against the pricier 790

If you own or have run a 770 in Canada, please leave a star rating and a short note below — configuration-level detail (live PTO? power steering?) is exactly what future buyers can’t get from listings.

John Deere 770 vs the Alternatives

The 770’s true comparison set is its own bloodline — three generations of the same idea.

Spec	John Deere 750	John Deere 770	John Deere 790
Years	1981–1989	1989–1998	2000–2007
Engine	Yanmar 3T80, 1.3 L IDI	Yanmar 3TN82, 1.4 L DI	Yanmar 1.5 L / 1.3 L DI by year
Gross HP	20	23	30
PTO HP	18.54 (Nebraska tested)	20 (claimed)	26 (claimed)
Rear PTO	Transmission-driven	Transmission std / live optional	Live standard on MFWD
Diff lock	—	Yes	Yes
Power steering	Optional	Optional (hydrostatic)	Standard on MFWD
Weight (2WD)	~1,700 lb	~1,930 lb	~1,930 lb
Typical Canadian price	CAD $6,500–$12,000	CAD $9,000–$17,000	CAD $10,000–$20,000

Where the 770 wins: it’s the generational sweet spot. Over the John Deere 750 it adds direct injection with a factory pre-heater (better cold manners), the diff lock, three more horsepower, and the option of real power steering. Against the John Deere 790 it gives up seven horsepower and standard live PTO — and typically costs CAD $2,000–$4,000 less in equivalent condition, which is the whole argument.

Where the math flips: if your work needs 5-ft implements or guaranteed live PTO without option-hunting, step to the 790 or an 850-class machine. If new equipment is on the table, the John Deere 2025R and Kubota B2601 are the modern descendants at this exact size — hydrostatic, warrantied, several times the outlay.

Real-World Performance

Engine

The 3TN82-RJX brought Yanmar’s TN-series direct injection to this size class — easier starting than the old indirect-injection x50 engines, helped by a factory intake pre-heater that period dealers listed as a feature. It’s an understressed 1.4 L that owners report as frugal and effectively unkillable on clean fuel and oil changes; in Canada, the pre-heater helps but a block heater remains the winter habit.

Transmission, Diff Lock & PTO

Eight forward, two reverse, stop to shift — the family constant. The genuine 70-series upgrade is the differential lock: in wet spring ground or on a slick loader pad, it’s the difference between working and digging holes, and it’s why a 4WD 770 punches above its 2,000 lb. The PTO is the configuration item: transmission-driven standard (the implement stops — and can push — with the clutch; fit an overrunning coupler before any rotary cutter), with a live-PTO option worth actively hunting for. Mid-PTO units run the 60-in. belly deck.

Loader & Backhoe Work

The John Deere 70 quick-attach loader is the factory match — commonly with a 60-in. bucket and, on well-optioned units, a factory joystick — and it’s the same loader family the 790 later used, so buckets and knowledge transfer. Backhoe work has a wrinkle worth knowing: the factory John Deere 7 quick-attach hoe (frame-mounted) is the proper route, because major aftermarket makers didn’t produce subframe kits for the 770 the way they did for the 790. A 770 already wearing the 7 hoe is worth a premium; adding one later takes patience. The 815-lb hitch handles box blades, 4-ft cutters and tillers, and rear blades comfortably.

Canadian Winters

Direct injection plus the intake pre-heater makes the 770 the easiest-starting of the small gear Deeres — with a block heater and winter diesel it’s a dependable cold-morning machine. The classic Canadian setup is a rear blower or blade on turf tires with chains; 4WD and the diff lock earn their keep in packed snow. Open station rules apply — our prairie winter equipment operation guide covers the setup details.

Common Problems & Reliability Notes

Transparency note: these are patterns reported across a 30-plus-year-old ownership base, not confirmed defects. Configuration and care vary enormously unit to unit.

Hydraulic seepage and tired seals. The most-reported age item — weep at the pump, steering circuit (on power-steering units), rockshaft, and loader cylinders. Weeping is negotiable; dripping is a repair quote.

Configuration confusion sold as fact. Listings routinely mis-state PTO type and steering. Verify live vs transmission PTO and manual vs power steering physically — both change the price and the ownership.

Unsynchronized shifting wear. Every gear should engage cleanly from a stop; grinding or popping out of gear on a test drive is a negotiation point, not a surprise for later.

Dry shoe brakes. Simple, serviceable, adjustment-hungry. Check pedal feel and evenness.

Modest hitch and loader limits. Not defects — sizing. At 815 lb of hitch lift and a compact loader, the 770 rewards owners who match implements to it and frustrates those who won’t.

The core endures. No engine or driveline failure pattern exists on maintained 770s, and the shared Yanmar TN-series ecosystem (which the 790 extended into the 2000s) keeps wear parts flowing through Deere dealers and specialists.

Used Price Range in Canada (2026)

The 770 consistently undercuts the 790 for near-identical work — the market’s worst-kept secret. Indicative Canadian ranges:

• Project units: roughly CAD $6,000–$8,500
• Solid running tractors, basic configuration: roughly CAD $8,500–$12,000 — the heart of the market
• 4WD with the JD 70 loader, power steering: roughly CAD $12,000–$17,000
• Loaded low-hour units and 7-backhoe TLB combos: roughly CAD $17,000–$22,000

Current dealer data shows listings from about $6,000 to $19,000 with the market average near $12,000 — and fully optioned survivors (4×4, loader, backhoe, power steering, sub-1,000 hours) at the top. Supply is steady on AgDealer, MarketBook, Kijiji, and at auctions; filter out the 770-series motor graders that share the search results.

Best Use Cases in Canadian Conditions

Acreage all-rounder (SK / AB / MB / ON). Mowing, box blading, loader chores, and hauling on 3–20 acres — the 770’s design brief, executed cheaply. Mowing. The 60-in. belly deck or a 4-ft rear cutter (with an overrunning coupler on transmission-PTO units). Snow duty. Rear blower or blade with chains, 4WD and diff lock doing the work. Spring mud. The diff lock makes it the most planted small Deere of its era on soft Prairie ground. Budget TLB. With the factory 7 backhoe — if you find one already fitted. Not ideal for: 5-ft-plus implements, guaranteed-live-PTO needs on unverified units, or buyers who want hydrostatic ease and a cab.

Maintenance & Service

• Daily: engine oil, coolant, air cleaner, tire pressure, grease points
• Per the operator’s manual: engine oil and filter, fuel filter, hydraulic/transmission fluid and filter on schedule; clean, water-free diesel for the DI system
• Cold-start system: verify the intake pre-heater circuit each fall — it’s the difference-maker the x50s never had
• Gear drive: clutch free-play and shoe-brake adjustment as routine owner jobs
• PTO safety: overrunning coupler before any rotary cutter on transmission-PTO units
• Winter: block heater, winter-blend diesel, battery load-tested each fall

Engine and driveline parts remain well supported through Deere dealers and the Yanmar TN-series aftermarket the later 790 kept alive.

Where to Find a Used John Deere 770 in Canada

770s appear steadily on AgDealer, MarketBook, and Kijiji, and at farm auctions. Inspection priorities: decode the configuration first — 2WD vs MFWD, manual vs power steering, transmission vs live PTO, mid PTO or not — because it moves value more than hours; confirm the loader is the JD 70 quick-attach and check its pins and cylinders; test the pre-heater and cold-start honestly; shift every gear from a stop; engage the diff lock under load; sight hydraulic weep points; and on any TLB, inspect the 7 backhoe’s frame mounts. A 4WD, power-steering, live-PTO unit with the 70 loader is the configuration that makes the 790 comparison genuinely hard.

John Deere 770 FAQ

How much horsepower does the John Deere 770 have? 23 gross HP (manufacturer-claimed) from a Yanmar 3TN82-RJX 1.4 L direct-injection diesel at 2,600 rpm, with 20 claimed PTO HP.

Is this the same John Deere 770 as the motor grader? No — Deere’s 770/770G motor graders are large construction machines. This page covers the 1989–1998 Yanmar-built compact utility tractor.

Does the John Deere 770 have a live PTO? Only if optioned — the rear PTO is transmission-driven standard, with live PTO available. Verify on the specific unit, and fit an overrunning coupler before rotary cutter work on transmission-PTO tractors.

What loader fits a John Deere 770? The John Deere 70 quick-attach is the factory match, typically with a 60-in. bucket and optionally a factory joystick — the same loader family the later 790 used.

Can you put a backhoe on a 770? The factory John Deere 7 quick-attach, frame-mounted hoe is the proper route; major aftermarket subframe kits weren’t produced for the 770, so a unit already wearing the 7 is worth a premium.

John Deere 770 vs 790 — what’s the real difference? The 790 adds seven horsepower and standard live PTO on MFWD; the 770 adds a lower price for otherwise similar work, with the diff lock standard. Late 790s even use the same 82-mm Yanmar engine family. If your implements are 4-ft class, the 770 is the value play.

How much does a used John Deere 770 cost in Canada? Roughly CAD $6,000–$8,500 for projects, CAD $8,500–$12,000 for solid basic units, CAD $12,000–$17,000 for 4WD loader tractors with power steering, and up to CAD $22,000 for loaded low-hour or backhoe-equipped machines, as of 2026.

Does the 770 have a DPF or need DEF? No — it predates emissions equipment entirely, and dealer listings still advertise that fact.

Related Models on Aglist

• John Deere 790 — the 770’s formula continued into the 2000s, more power and standard live PTO
• John Deere 750 — the predecessor this generation improved on
• John Deere 2025R — the modern descendant at this size, new alternative
• Kubota B2601 — cross-brand modern alternative
• All tractors on Aglist — full tractor coverage

Disclaimer

Specifications compiled from John Deere technical literature for the 70 Compact Series and cross-checked reference and market sources; no widely cited Nebraska test exists for this model, so power figures are manufacturer-claimed, and the 770’s extensive option list (drive, steering, PTO type, mid PTO, loader, backhoe) means configurations vary significantly between units. The John Deere 770 is a discontinued model — availability is limited to the used market, and pricing reflects indicative Canadian ranges that vary by region, condition, hours, and configuration. Reviews on Aglist are written by real users and moderated for spam — opinions are personal. Always confirm specifications and configuration against the operator’s manual, a serial-number decode, and a physical inspection before committing to any specific machine.
