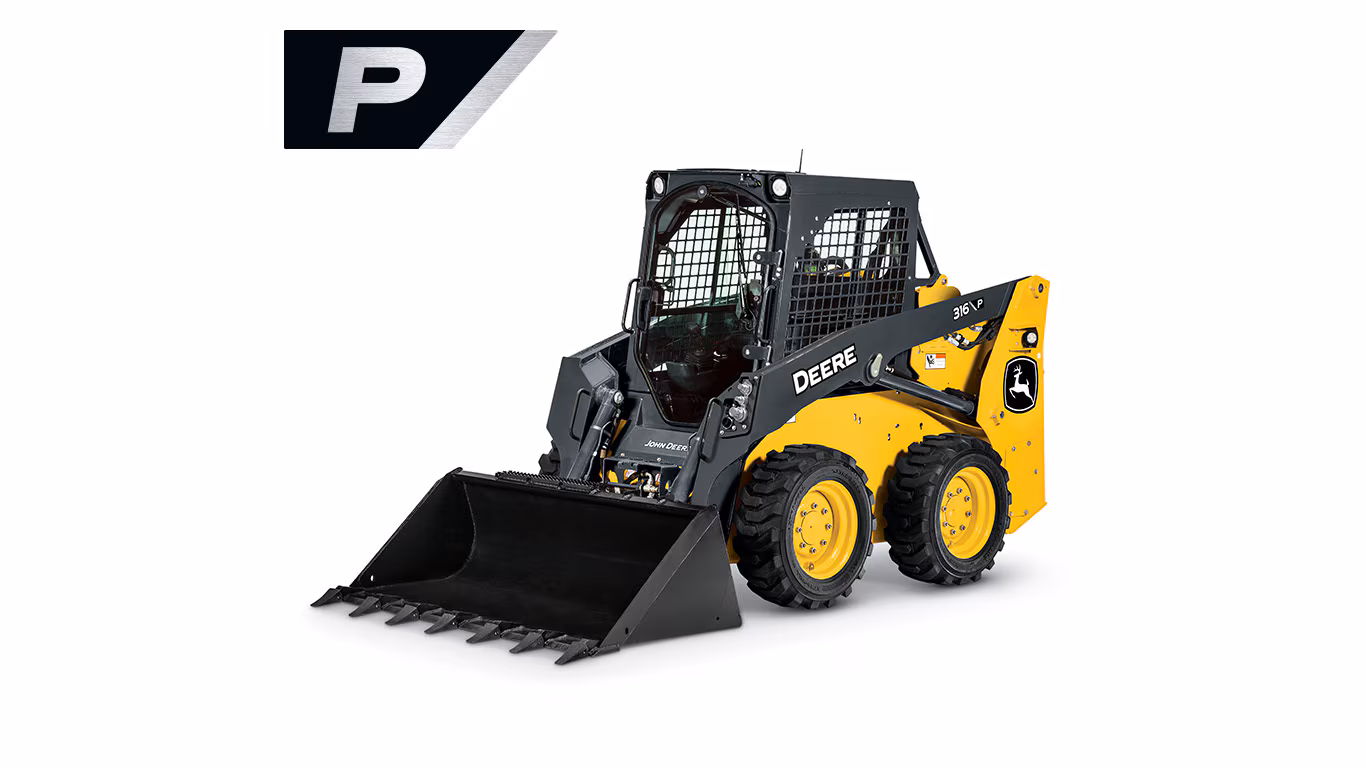

John Deere 316 P-Tier Skid Steer

A compact John Deere skid steer built for everyday loading and attachment work

The John Deere 316 P-Tier is a compact radial-lift skid steer designed for operators who want a practical machine for material handling, cleanup, pallet work, and attachment-driven jobs. On Deere’s Canadian product page, the 316 P-Tier is listed with 65 gross hp, 61 net hp, a rated operating capacity of 1,750 lb., and an operating weight of 6,180 lb.

For many buyers, that puts the 316 P-Tier in an attractive part of the market. It is large enough for serious daily work, but still compact enough for tighter yards, barns, livestock operations, snow removal routes, and general property maintenance. Deere also identifies this model as a radial-lift machine, which is often a good fit for digging, pushing, grading, and work done at mid-range lift heights.

John Deere 316 P-Tier key specifications

If you are comparing skid steers in this size class, these are the main published specifications for the 316 P-Tier:

Engine and driveline

• Engine manufacturer: Yanmar
• Engine model: 4TNV86CHT
• Aspiration: Turbocharged
• Displacement: 2.1 L
• Net power: 45.6 kW (61 hp)
• Gross power: 48.5 kW (65 hp)
• Max gross torque: 207 Nm (153 lb.-ft.)

Performance and capacity

• Rated operating capacity: 795 kg (1,750 lb.)
• Tipping load: 1,589 kg (3,500 lb.)
• Maximum speed: 11.1 km/h (6.9 mph)
• Breakout force, lift: 21 kN (4,750 lbf)
• Breakout force, bucket: 23 kN (5,250 lbf)

Hydraulics and fuel

• Hydraulic power: 25 kW (33 hp)
• Pump output: 63 L/min (17 US gpm)
• System pressure: 238 bar (3,450 psi)
• Fuel tank: 71 L (19 US gal.)

Dimensions and configuration

• Lift geometry: Radial
• Operating weight: 2,806 kg (6,180 lb.)
• Standard tire size: 10 x 16.5

Where the 316 P-Tier fits best

The 316 P-Tier makes sense for buyers who want a compact machine that can cover a wide range of routine jobs without stepping into a heavier, more expensive class. Its rated operating capacity and machine weight make it a practical fit for:

Farm and acreage work

On farms and acreages, this size of skid steer can be a strong choice for feed handling, manure cleanup, bedding, pallet work, moving bulk materials, and yard maintenance. Deere also highlights attachment versatility on this model family, including examples such as a bale spear, pallet forks, and rock grapple, which shows the type of work Deere expects these machines to handle.

Snow removal and property maintenance

For winter work and general maintenance, a compact wheeled skid steer can be attractive because it stays manoeuvrable in tighter areas and works well with a range of cleanup and handling attachments. The 316 P-Tier’s size also makes it easier to position around buildings, lanes, and crowded workspaces. Its published operating weight also supports lighter trailer transport than larger compact equipment classes.

Landscaping and small jobsite tasks

The radial-lift design can be appealing for jobs involving pushing into piles, grading, loading at moderate heights, and frequent ground-engaging work. Buyers who do not need the extra reach of a larger vertical-lift machine may find this configuration more aligned with everyday utility work. Deere specifically notes that the 317 P-Tier and 318 P-Tier use vertical lift for higher reach and added stability, which helps position the 316 P-Tier as the more compact radial-lift option in this group.

Cab, controls, and operator experience

John Deere puts a lot of emphasis on operator comfort and ease of use in the P-Tier skid steer lineup. On the 316 P-Tier page, Deere says the cab offers 25 percent more volume than the E-Series, along with design changes intended to improve long-day comfort. Deere also says the EH control transition helped reduce cab noise and vibration while improving cab sealing, pressurization, and HVAC performance.

For buyers comparing machines in person, these details matter. Spec sheets tell you the engine power and lift numbers, but everyday usability often comes down to visibility, entry and exit, control feel, noise level, and how tiring the machine is over a full day. Those are exactly the areas where owner impressions can add useful context beyond the numbers. Deere also notes features such as differential steering on EH machines and available creep control within the Joystick Performance Package for tasks that need low travel speed with full hydraulic power.

Attachment flexibility

One of the biggest strengths of the 316 P-Tier is how many jobs it can take on once attachments are added. Deere says there are more than 100 attachments in the John Deere portfolio for skid steers and compact track loaders, and it points buyers to the broader attachments guide for compatibility and options. Deere also mentions an available electrically actuated Quik-Tatch system that can allow some attachment connection steps to happen from inside the cab.

For Aglist users, this matters because a skid steer is rarely judged only by its base machine. Real-world value often comes from how well it runs the attachments you actually use most often, whether that is a bucket, forks, grapple, bale spear, broom, auger, or snow attachment. Owner feedback is especially useful here because it can reveal how a machine performs with specific tools and in real working conditions.

Owner feedback and real-world appeal

On paper, the John Deere 316 P-Tier offers a solid mix of compact size, moderate lift capacity, and attachment flexibility. The machine is easy to understand in the lineup: it gives buyers a smaller P-Tier skid steer with radial lift, a turbocharged Yanmar engine, published 61 net hp, and enough capacity for a wide range of general-purpose work.

In real ownership, buyers will often care about a few extra questions:

• Does it feel stable with forks and pallet loads?
• Is the cab comfortable enough for long cleanup or snow days?
• How well does it perform in cold weather?
• Is hydraulic response good enough for the attachments you plan to run?
• How easy is servicing and dealer support in your region?

Those are the areas where user impressions and field experience make a difference. For Aglist, this is exactly why the 316 P-Tier is a good model to build out with reviews, ratings, and practical usage comments over time.

Is the John Deere 316 P-Tier a good fit?

The 316 P-Tier is a strong fit for buyers who want:

• a compact John Deere skid steer
• a radial-lift machine for general utility work
• practical power without moving into a much larger frame
• good attachment flexibility
• a machine suited to farm, acreage, snow, and light commercial duties

It may be less ideal for operators who regularly need higher dump reach, more lifting headroom, or a larger-frame machine for heavier daily production work. In Deere’s own lineup, the vertical-lift 317 P-Tier and 318 P-Tier are positioned for buyers who want more reach and stability at lift height.

Final thoughts

The John Deere 316 P-Tier is a practical skid steer for buyers who want compact size, dependable published power figures, and flexibility for everyday attachment work. With 61 net hp, 1,750 lb. rated operating capacity, 6,180 lb. operating weight, and a radial-lift design, it fits well into the segment many farms, acreages, and property owners shop first.

For Aglist, this model has strong long-term value because it is the kind of machine people often compare not just by specs, but by everyday usability. That makes it a good candidate for adding owner feedback, buyer impressions, and ratings as the page grows.

FAQ

What engine is in the John Deere 316 P-Tier?

The 316 P-Tier uses a Yanmar 4TNV86CHT turbocharged diesel engine with 45.6 kW (61 hp) net power and 48.5 kW (65 hp) gross power.

What is the rated operating capacity of the John Deere 316 P-Tier?

John Deere lists the 316 P-Tier with a rated operating capacity of 795 kg (1,750 lb.).

Is the John Deere 316 P-Tier radial lift or vertical lift?

The 316 P-Tier is a radial-lift skid steer.

How much does the John Deere 316 P-Tier weigh?

Its published operating weight is 2,806 kg (6,180 lb.).

What attachments can be used with the John Deere 316 P-Tier?

John Deere highlights a broad attachment ecosystem for its skid steers and compact track loaders, including examples such as bale spears, pallet forks, and rock grapples, and says its portfolio includes more than 100 attachments.
