Kubota BX2680 Reviews, Specs & Ratings

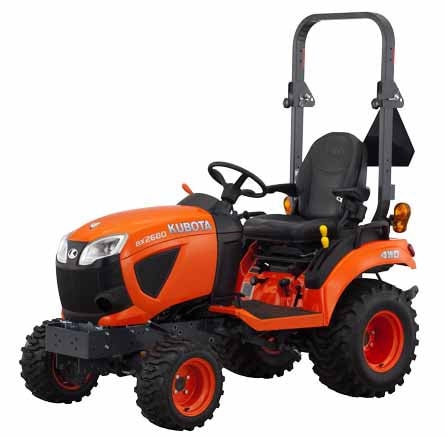

The Kubota BX2680 is the largest and most-capable model in Kubota’s bestselling BX80 sub-compact tractor lineup. With 24.8 gross horsepower from its Kubota D1005 3-cylinder diesel engine, the Swift-Tach front loader for tool-less attachment changes, and a wide range of compatible mid-mount mowers and rear implements, the BX2680 is engineered specifically for residential acreage owners, small property managers, large lawn enthusiasts, and homeowners with 1-10 acres who want serious tractor capability in a sub-compact footprint.

The BX Series is the #1 best-selling sub-compact tractor lineup in North America — and the BX2680 specifically is the model that most acreage buyers in Canada gravitate to once they understand the BX80 family. With 25% more horsepower than the smaller BX1880 and access to the same 60-inch mid-mount mower deck, the BX2680 hits a sweet spot: small enough to fit through standard garage doors and maneuver around landscaping, large enough to handle real loader work and meaningful PTO tasks.

On Aglist, this page goes beyond Kubota’s marketing materials to help Canadian buyers understand the BX2680’s actual capabilities, real-world strengths and limitations, and how it compares to both larger Kubota L Series tractors and to competing sub-compact tractors from John Deere, Mahindra, and others. Because the BX2680 is genuinely versatile, sizing it correctly to your property and intended work is the difference between a tractor you love and a tractor you outgrow within 18 months.

Aglist advantage: Use the BX2680 Reviews & Ratings section below to compare real Canadian owner feedback on loader performance, mowing quality, transmission feel, and long-term reliability before you commit to a purchase.

Quick Specs

• Equipment type: Sub-compact utility tractor
• Series: Kubota BX80
• Model: BX2680
• Engine: Kubota D1005 3-cylinder liquid-cooled diesel
• Engine displacement: 61.1 cu. in. (1,001 cc)
• Engine gross horsepower: 24.8 HP @ 3,200 RPM
• Engine net horsepower: 23.3 HP
• PTO horsepower: 19.5 HP @ 3,200 RPM
• Fuel system: Mechanical injection — no DPF, no DEF
• Transmission: HST with high-low gear shift (2 forward/reverse ranges)
• Drive system: 4WD standard
• Brakes: Wet disc
• PTO type: Live independent PTO with hydraulic clutch
• Rear PTO speed: 540 RPM
• Mid PTO speed: 2,500 RPM (standard)
• 3-point hitch category: Category I (limited)
• 3-point lift capacity (24″ behind pin): 680 lb
• Hydraulic pump output: 6.2 GPM
• Compatible front loader: Kubota LA344/LA344S Swift-Tach
• Compatible mid-mount mowers: 54″ or 60″ deck options
• Travel speed: 0-8.4 mph forward / 0-6.5 mph reverse
• Wheelbase: 55.1 in
• Overall length (with 3-point): 95.5 in
• Overall width (min. tread): 45.1 in
• Overall height (with ROPS): 83.1 in
• Ground clearance: 6.5 in
• Operating weight: 1,520 lb
• Fuel tank capacity: 6.6 gal (25 L)
• ROPS: Folding 2-post (under 84″ for garage door clearance)

Reviews & Ratings on Aglist

Factory specifications tell you what the Kubota BX2680 is engineered to do. Real owner reviews tell you what it’s actually like to live with through five Canadian seasons and 1,000 hours of acreage work.

What BX2680 buyers consistently want to know:

• How does the loader actually perform on real acreage tasks (gravel, snow, manure, mulch)?
• Is the 60″ mid-mount mower deck genuinely capable, or does it bog in heavy grass?
• Does the BX2680 have enough power for a serious property, or will I outgrow it?
• How does cold-start performance hold up in –30°C prairie conditions?
• Is the cab option worth the cost premium for year-round use?
• What’s fuel consumption like under typical mowing and loader work?
• How much does the BX2680 actually cost to own per year compared to a step-up L2502?

This is where real Canadian owner experience matters. The BX2680 has been Kubota’s BX80 lineup leader since 2017, which means there’s now a deep base of multi-year owner experience — particularly from Ontario, BC, and Alberta acreage owners who use these tractors year-round for varied work.

What Makes the BX2680 Different

Three engineering decisions define the BX2680 within Kubota’s lineup.

1. Sub-Compact That Actually Works

The “sub-compact” tractor category is small in physical dimensions but often disappointing in real capability. Many sub-compacts are essentially oversized lawn tractors that struggle with serious loader work or full-size implements.

The BX2680 is the exception. With 24.8 gross HP, 19.5 PTO HP, and the Swift-Tach LA344 loader, it delivers genuinely useful capability:

• 60-inch mid-mount mower deck for serious mowing (not just lawn-tractor capacity)
• Real loader work — gravel, snow, manure, light pallet handling
• Full Category I 3-point hitch (limited specification but functional)
• Independent PTO with hydraulic clutch (not a belt-driven afterthought)
• Backhoe-compatible chassis (BX23S is the dedicated TLB version of this platform)

2. Garage-Door Storage Compatibility

This sounds minor until you’re actually trying to store a tractor. With ROPS folded, the BX2680 stands at less than 7 feet tall — meaning it fits under most standard residential garage doors (7-foot clearance). This is engineered, not accidental:

• Folding ROPS designed to release with a single pin (no tools required)
• Overall height with ROPS down: under 60 inches
• Optional cab models stay within compact storage envelope
• Width of 45.1 inches fits through standard garage doors

For owners without dedicated outbuildings, this is often the deciding factor between “I can buy this tractor” and “I need to build a shed first.”

3. Same Workhorse Engine Family as Larger Kubotas

The BX2680’s Kubota D1005 engine is a direct relative of the engine families used in many of Kubota’s larger compact tractors. It’s a proven, mature design with extensive parts availability and well-known service intervals. Unlike many sub-compact tractors that use proprietary or short-run engines, the BX2680’s engine has been refined across decades of Kubota production.

The mechanical injection design (no DPF, no DEF) means the BX2680 sidesteps the same emissions complexity that the larger L2502 famously avoids. Sub-compact buyers get the same simple-ownership advantages without paying step-up tractor prices.

Engine & Performance

The BX2680 is powered by the Kubota D1005 — a 3-cylinder, 1.001L liquid-cooled diesel engine refined through multiple generations of Kubota production.

Key engine specifications:

• Type: 3-cylinder, liquid-cooled, 4-stroke diesel
• Displacement: 61.1 cu. in. (1,001 cc)
• Bore × Stroke: 76.0 mm × 73.6 mm (2.99 × 2.9 in)
• Rated speed: 3,200 RPM
• Gross horsepower: 24.8 HP @ 3,200 RPM
• PTO horsepower: 19.5 HP @ 3,200 RPM
• Torque: ~44 ft·lb @ peak
• Fuel system: Mechanical injection
• Cold-start: Glow-plug preheat
• Emissions: No DPF, no DEF

Note that the BX2680 develops its power at a higher RPM than larger compact tractors — 3,200 RPM versus 2,200 RPM on the L02 Series. This is typical of sub-compact tractors and reflects the engine’s smaller displacement. Operators coming from larger compact tractors sometimes find the higher RPM operation slightly louder; operators coming from lawn tractors find it quieter and smoother than gasoline alternatives.

Fuel consumption typical range: 0.7-1.2 gallons per hour during mixed acreage use (loader work, mowing, light tillage). At 6.6 gallons of tank capacity, that’s typically 6-9 hours of continuous work between fillings — appropriate for the BX2680’s typical use case.

Swift-Tach Front Loader (LA344)

The BX2680 is most commonly purchased with the Kubota LA344 Swift-Tach front loader — and the loader is one of the BX2680’s strongest selling points.

Swift-Tach refers to Kubota’s tool-less loader removal system. Removing the loader from the BX2680 takes approximately 30-60 seconds with no tools. This matters for two practical reasons:

1. Mowing without the loader. Removing the loader before mowing meaningfully improves turning radius, reduces ground compaction on lawn surfaces, and improves visibility. Sub-compact owners doing significant mowing benefit substantially from the easy removal.
2. PTO and 3-point work. Heavy 3-point implements work better without the front loader weight. Tool-less removal makes seasonal transitions practical.

LA344/LA344S key specifications:

• Maximum lift height (bucket pivot pin): Approximately 70 inches
• Lift capacity at pivot pin: Approximately 510 lb
• Lift capacity 500mm forward at max height: Approximately 410 lb
• Bucket roll-back angle: Strong for the size class
• LA344S (Skid-Steer Quick Attach): Compatible with skid-steer attachments via 2-lever quick coupler

The LA344 lift capacity is appropriate for the BX2680’s intended work — moving gravel, snow, mulch, manure, light pallet loads, and material handling typical of acreage maintenance. It is not designed for heavy round bale handling or large pallet loads (which require the L2502/L3902 with the LA526 loader). Buyers needing more loader capacity should step up to the L Series.

The optional 3rd Function Valve adds hydraulic capability for grapples and similar attachments. The optional Bucket Level Indicator Rod helps maintain a level bucket during material handling.

Mid-Mount Mower Capability

The BX2680 is purpose-engineered for mid-mount mowing — and this is where it differs most from the L Series compact tractors. Compatible mid-mount mower decks:

• 54-inch deck (RCK54-23BX-1) — popular for medium-sized properties
• 60-inch deck (RCK60B-23BX) — most-installed for larger acreages
• 48-inch deck options — for tight properties (less common in Canada)

The mid-mount mower mounts under the tractor body — closer to the ground than rear-mounted rotary cutters, with better cut quality, easier maneuverability around obstacles, and dramatically better visibility. Mid-PTO speed of 2,500 RPM is optimized for these mower decks specifically.

Real-world mowing capability:

• 5-7 acres of regular turf: Easily handled in 2-3 hours with the 60″ deck
• 10-15 acres of mixed turf and rough field: Possible but at the BX2680’s effective limit
• Heavy/wet grass conditions: The BX2680’s 19.5 PTO HP is at its limit; rear-PTO 6-foot rotary cutters struggle here
• Manicured lawn quality: Strong with proper deck setup and sharp blades

For property owners doing serious mowing as their primary use, the BX2680 with the 60-inch deck is the right choice. For properties over 15 acres with regular mowing, step up to the L2502 with a rear-mounted rotary cutter.

The mid-mount mower deck is fully removable (typically a 30-60 minute operation) for non-mowing work or off-season storage.

Transmission & Drive

The BX2680 uses 3-range hydrostatic transmission — but with a different control logic than larger Kubota tractors. The transmission has:

• 2 forward and 2 reverse ranges (low/high)
• Pedal-operated speed control within each range
• High-low shift lever for range selection (must stop to shift)

This is simpler than the 3-range HST on the L02 Series — and appropriate for the BX2680’s use case. Most operators use:

• Low range: Loader work, snow blowing, tight maneuvering, slow PTO work
• High range: Mowing, transport, normal work

4WD is standard on the BX2680 (no 2WD option). The 4WD system is full-time engaged, providing strong traction for loader work, snow operations, and slick conditions.

Hydrostatic Power Steering is standard, delivering smooth steering effort even with the loader installed and full bucket loads.

3-Point Hitch & PTO

The BX2680 features a Category I (limited) 3-point hitch — important to note that this is not a full Category I:

• Lift capacity at 24″ behind pin: 680 lb
• Position control: Standard
• Telescoping stabilizers: Optional

The 680-lb lift capacity is significantly less than the L2502’s 1,430 lb. This is the BX2680’s primary capability limitation versus the L Series. Implements that require strong lift capacity (heavy box blades, large rotary cutters, post-hole diggers with heavy augers) are at or beyond the BX2680’s practical limit.

The PTO is independent and hydraulically clutched — push the button to engage. Both rear (540 RPM) and mid (2,500 RPM) PTO are standard.

Practical PTO capability:

• 4-foot rotary cutter: Strong performance
• 5-foot rotary cutter: Capable in light grass; marginal in heavy conditions
• 6-foot rotary cutter: Underpowered — recommend 5-foot or smaller
• Mid-mount mowers (54″ or 60″): Optimized for the BX2680’s mid-PTO
• Tiller (4-foot): Strong in light soil; struggles in heavy clay
• Snow blower (front-mounted): Strong performance with the LA344’s mid-PTO drive
• Post-hole digger (9″ auger): Strong; (12″ auger) capable in moderate soil

Operator Comfort & Storage

Despite its sub-compact size, the BX2680 includes meaningful comfort features:

• Deluxe operator station with tilt steering wheel
• High-back seat with armrests (BX2680 specifically — smaller BX models have basic seats)
• Deluxe dash with analog tachometer, temp gauge, fuel gauge, LCD hour meter
• LED work lights standard
• Folding ROPS with single-pin release
• Optional Kubota factory cab — full enclosure with heat (and optional A/C)

The cab option is increasingly popular among Canadian BX2680 buyers in cold-weather regions. The factory cab provides:

• Full sealed enclosure
• Forced-air heat
• Optional A/C
• Wiper and defroster
• Sound dampening

Cab adds approximately $7,000-10,000 CAD over open-station base price. For year-round Canadian use, the cab transforms the BX2680 from “fair-weather tractor” to “all-season equipment.”

Storage compatibility: With ROPS folded, the BX2680 fits through standard garage doors (7-foot clearance). Wheelbase of 55.1 inches and overall length of 95.5 inches mean the tractor parks within most single-car garage spaces without modification.

Best Applications for the BX2680

The Kubota BX2680 fits a specific operational profile across Canadian properties.

Best fit for the BX2680:

• Residential acreages (1-10 acres) — comprehensive property maintenance
• Suburban properties with serious land — long driveways, large yards, garden areas
• First-time tractor buyers prioritizing affordability and storability
• Operators emphasizing mowing — the 60″ mid-mount mower is optimized for this tractor
• Properties without dedicated tractor storage — fits in standard garages
• Small-property snow removal — front blade, mid-mount snow blower, or loader pushing
• Garden-scale tillage and bed prep
• Year-round homeowners in moderate climates (or with the cab option for cold climates)

Best fit with cab option (for prairie/northern Canada):

• Year-round acreage work in Saskatchewan, Alberta, Manitoba
• Snow removal as a primary winter use
• Operators valuing all-season comfort

Less suitable for:

• Properties over 10-15 acres with regular heavy work — consider L2502 or L3902
• Operations needing 6-foot+ rotary cutting — underpowered
• Heavy round bale handling — loader capacity insufficient
• Commercial mowing operations — limited PTO HP and operating endurance
• Buyers needing full Category I 3-point lift capacity — step up to L Series
• Operators planning serious tillage in heavy soil — underpowered for ground engagement

The BX2680 vs L2502 decision is the most common cross-shop in Canadian compact tractor sales. The honest answer: BX2680 wins for mowing-focused properties under 10 acres with garage-storage requirements; L2502 wins for properties over 10 acres requiring serious loader work or larger PTO implements. Both are excellent tractors — they fit different operational profiles.

BX2680 vs BX2380 vs BX23S vs L2502

The BX80 lineup includes the BX1880, BX2380, BX2680, and BX23S. Here’s the practical decision framework:

Feature	BX1880	BX2380	BX2680	BX23S	L2502
Gross HP	16.6	21.6	24.8	21.6	24.8
PTO HP	13.7	17.7	19.5	17.7	20.5
Engine	D722	D902	D1005	D902	D1703-M-DI
Backhoe Standard?	No	No	No	Yes (BT603)	Optional (BH77)
Operating Weight	1,404 lb	1,454 lb	1,520 lb	~1,800 lb	2,601 lb
3-Point Lift	680 lb	680 lb	680 lb	680 lb	1,918 lb
Loader	LA203/LA243	LA344	LA344	LA340	LA526
Mid-Mount Mower	48″ or 54″	54″ or 60″	54″ or 60″	None	None (rear only)
Storage Height	<84″	<84″	<84″	<84″	Larger
Approx CAD price (loader, 2026)	$18-22K	$22-26K	$25-30K	$32-38K	$28-34K

Choose the BX2680 if: Property 2-10 acres, mowing is significant, garage storage matters, you want the most-capable BX without needing a backhoe.

Choose the BX2380 if: Smaller property (1-5 acres), you prioritize budget, willing to accept slightly less PTO HP for $3-4K savings.

Choose the BX23S if: You specifically need a backhoe alongside the loader, smaller-scale TLB use case, occasional digging work.

Choose the L2502 if: Property 5-50 acres, loader work is primary, serious 3-point implements (full Cat I lift), no garage-door storage requirement. About $3-5K more than BX2680 but meaningfully more capable for non-mowing work.

Cold Weather Operation in Canada

The BX2680 is a capable cold-weather tractor with proper preparation, though it presents some considerations specific to the sub-compact size.

Reliable cold-start temperature range: Down to approximately –25°C with proper preparation. Below that, the smaller engine (61 cu. in. vs the L2502’s 100 cu. in.) is more sensitive to cold-start conditions and a block heater becomes more important.

Cold-weather considerations for the BX2680:

• Smaller battery than L Series — replace at first signs of weakness
• Mechanical injection simplifies cold operation
• No DEF system — no freezing concerns
• Block heater available as Kubota dealer-installed option (essentially required for prairie use)
• Cab models strongly recommended for serious year-round prairie work

Recommended cold-weather setup for prairie operation:

• 5W-40 full synthetic engine oil (October-April)
• Winter-blend diesel with anti-gel additive
• Block heater plugged in 3-4 hours before start at –20°C and below
• Battery load-tested in fall, replaced if 3+ years old
• Cab model for serious year-round use

The honest assessment: the BX2680 is more popular in Ontario and BC than in Saskatchewan/Alberta, partly because the smaller cab interior (when equipped) is less comfortable for extended cold-weather work than the larger L Series cabs. Prairie buyers should weigh whether the L2502 cab is a meaningfully better choice for their winter usage patterns.

Maintenance & Long-Term Ownership

The BX2680 has a relatively simple maintenance profile:

Routine maintenance intervals:

• Engine oil and filter: Every 200 hours or annually
• Hydraulic/transmission filter: Every 400 hours
• Air filter: Every 200 hours (more frequently in dusty conditions)
• Fuel filter: Every 400 hours
• Coolant: Every 2 years
• Greasing of pivot points: Every 50 hours

Typical annual maintenance cost: $200-400 for owner-performed service; $500-900 for dealer service. Lower than larger tractors due to smaller fluid capacities.

Long-term reliability:

• The Kubota D1005 engine is one of Kubota’s longest-running designs, with extensive parts availability and well-understood service patterns
• 5,000-8,000+ hour service lives are common with regular maintenance
• The mechanical injection design avoids the most expensive electronic failure modes
• Dealer parts support is excellent across Canada
• Resale value remains strong — the BX Series is among the most-recognized used compact tractor brands

Frequently Asked Questions

Where can I read Kubota BX2680 reviews and ratings?

On Aglist, the Reviews & Ratings section helps Canadian buyers compare owner feedback, real operating experience, and long-term ownership impressions before choosing the BX2680.

How much horsepower does the Kubota BX2680 have?

Kubota lists the BX2680 at 24.8 gross HP with 19.5 PTO HP at 3,200 RPM.

Does the Kubota BX2680 have a DPF or DEF?

No. The BX2680’s mechanical injection diesel engine does not require diesel particulate filter (DPF) or diesel exhaust fluid (DEF). This simplifies long-term ownership and avoids regeneration complexity common on larger emissions-controlled compact tractors.

What’s the difference between the BX2680 and BX2380?

Both share the same chassis, but the BX2680 has a larger 1,001cc engine (vs. 898cc on the BX2380) producing 24.8 HP vs. 21.6 HP, and 19.5 PTO HP vs. 17.7 PTO HP. For mowing-focused properties, the BX2680’s additional power is meaningful — particularly with the 60″ deck. For lighter use, the BX2380 saves $3-4K CAD.

What loader does the BX2680 use?

The Kubota LA344 (or LA344S with skid-steer style quick coupler) Swift-Tach front loader. The Swift-Tach system allows tool-less loader removal in approximately 30-60 seconds.

Can I add a backhoe to the BX2680?

The BX2680 itself doesn’t have a factory backhoe option. For backhoe capability in the BX80 chassis, the BX23S is Kubota’s dedicated TLB (Tractor-Loader-Backhoe) model, which uses a similar but reinforced platform.

What size mid-mount mower fits the BX2680?

The BX2680 is compatible with 54-inch and 60-inch mid-mount mower decks (RCK54 and RCK60 models). The 60″ deck is more popular for serious acreage mowing. The 48″ deck is available but more typical of the smaller BX1880.

Will the BX2680 fit in my garage?

Yes, in most cases. With ROPS folded, the BX2680 stands at less than 7 feet tall (under 84 inches). Width is 45.1 inches, and overall length with 3-point hitch is 95.5 inches. This fits through standard residential garage doors and within standard single-car garage stalls.

Is the BX2680 a good first tractor?

Yes, for properties under 10 acres with significant mowing requirements. The HST transmission is forgiving for new operators, the Swift-Tach loader system simplifies attachment changes, and the dealer/parts support is excellent across Canada. For larger properties or properties focused on loader/PTO work over mowing, the L2502 is often a better first tractor.

Can the BX2680 handle a 5-foot rotary cutter?

Yes, in light grass conditions. In heavy or wet grass, the 19.5 PTO HP is at its limit. For regular 5-foot rotary cutting in medium-to-heavy conditions, the L2502 (with 20.5 PTO HP and significantly more low-end torque) is a meaningful upgrade. The BX2680 is best matched to the 60-inch mid-mount mower deck for primary mowing duties.

What’s the typical price of a BX2680 in Canada?

As of 2026, a BX2680 with the LA344 Swift-Tach loader typically lists in the $25,000–$30,000 CAD range from Canadian Kubota dealers, depending on configuration, attachments, and dealer financing programs. Cab models add $7,000–$10,000 CAD. Adding a 60″ mid-mount mower deck adds approximately $4,000–$5,500 CAD. Confirm current pricing directly with your local Kubota Canada dealer.

How long does a Kubota BX2680 last?

With proper maintenance, the BX2680’s D1005 engine and chassis are designed for 5,000-8,000+ hour service lives. For typical residential acreage use (200-400 hours per year), this represents 15-30+ years of service life. Many owners report their BX2680 outlasting their tenure on the property.

BX2680 vs L2502 — which should I buy?

For mowing-focused properties under 10 acres requiring garage storage: BX2680. For properties 5-50 acres with significant loader and 3-point implement work: L2502. The L2502 has roughly 70% more 3-point lift capacity and 50% more loader capacity, but is meaningfully larger and won’t fit through standard garage doors. Both tractors are excellent — they fit different operational profiles. Many Canadian buyers cross-shop these two specifically.

Reviews & Ratings on Aglist

Share your experience

Similar Equipment

• Kubota L2502 — step-up compact tractor with no DPF/DEF
• Kubota MX4900 — utility tractor for larger properties
• Kubota L4470 — older Standard L Series

Note: We try our best to keep specs and information accurate, but some details can be missing or different depending on the source. Before you buy, service, or repair equipment, please double-check key specs with the manufacturer, the owner’s manual, or your dealer.

About reviews: Reviews on Aglist are written by real users. We moderate them for spam and abuse, but opinions and claims are still personal—so use them as guidance, not as a guarantee.
