HLA Snow Pusher 3500X Series Reviews, Specs & Ratings

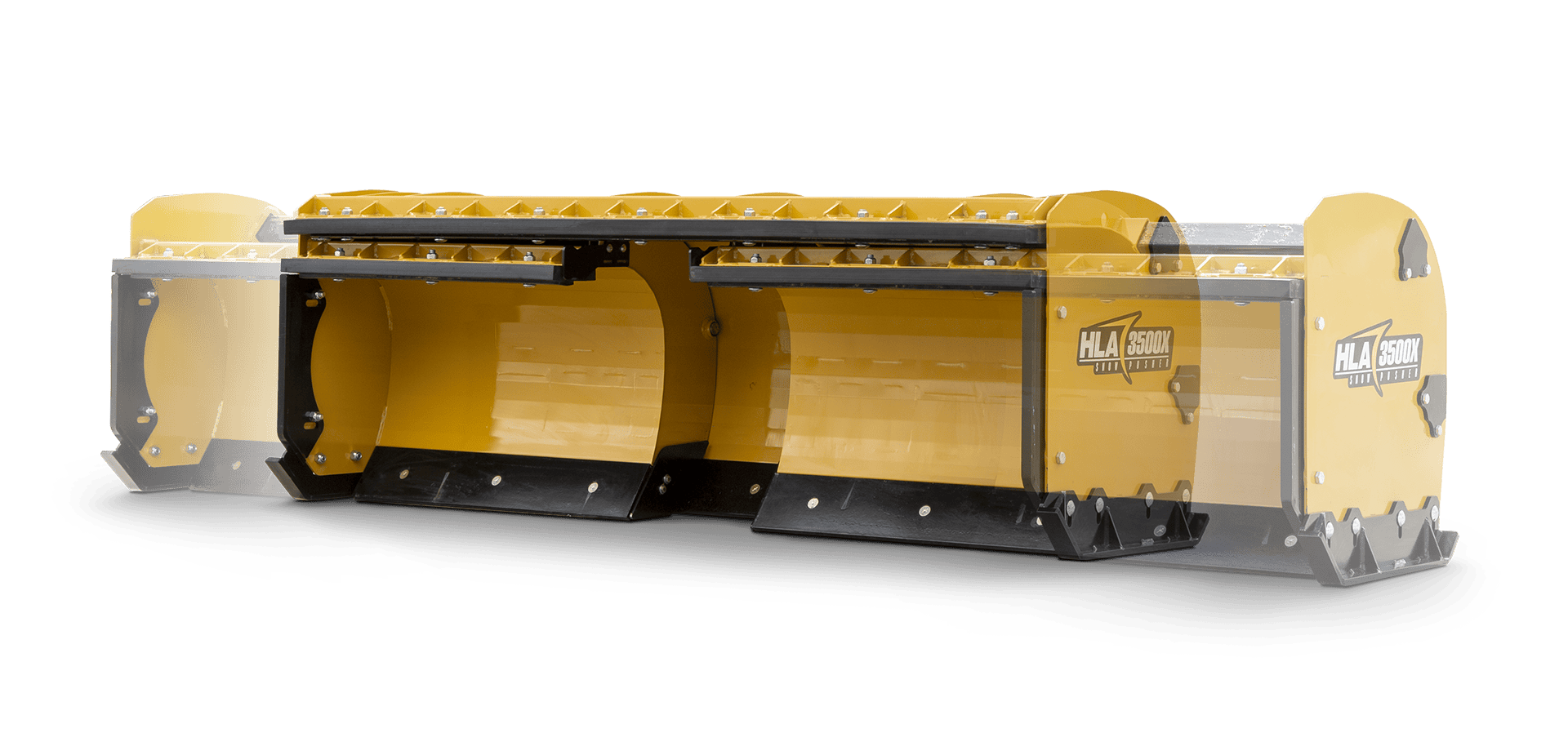

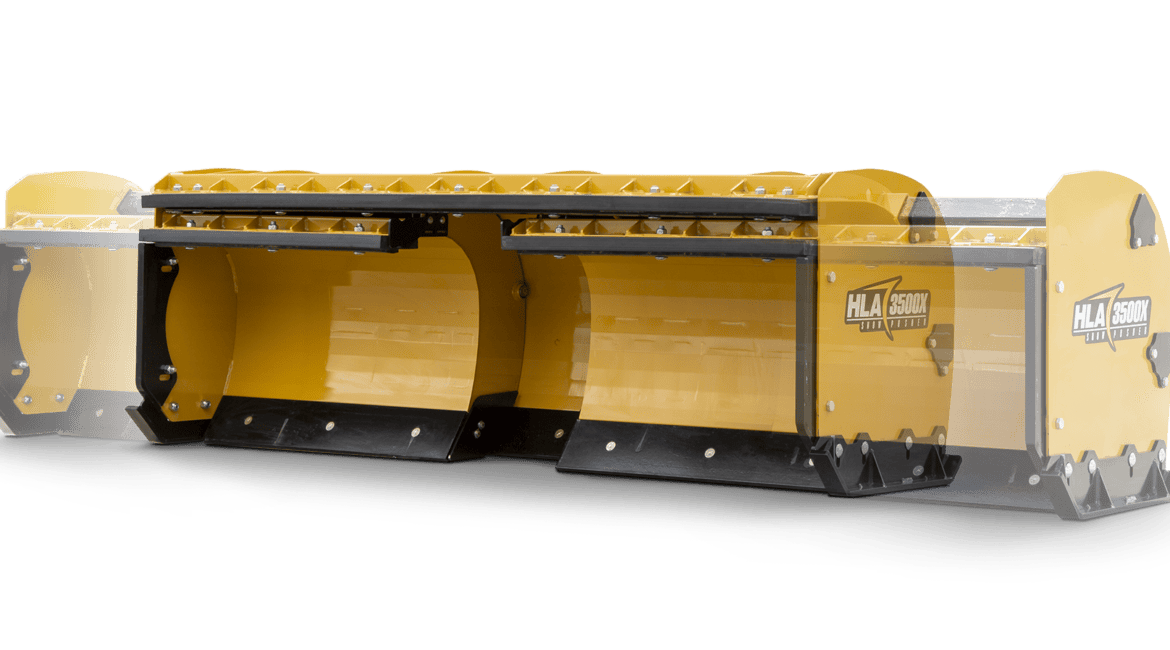

The HLA Snow Pusher 3500X Series is the most-innovative product in HLA Snow’s lineup — and the only hydraulic expandable snow pusher in HLA’s standard SnowPusher series. Built in Wallenstein, Ontario by Horst Welding, the 3500X uses a hydraulically activated expandable mouldboard that increases or decreases the working width on the fly — letting operators clear wide open areas at maximum width, then narrow the pusher to fit through gates, between buildings, or into tight loading dock access without changing attachments.

The 3500X is sized for skid steers, compact wheel loaders, and agricultural tractors from 6,000 to 10,000 lb operating weight — appropriate for mid-frame commercial machines including the Kubota SVL75-3, John Deere 318 P-Tier, and similar machines. With expandable widths from 6’→10′, 7’→11′, and 8’→12′ depending on model, the 3500X delivers the equivalent capability of multiple fixed-width pushers — without storage requirements or attachment-swap downtime.

Key features include the hydraulically activated expandable mouldboard (the signature 3500X feature), flow divider valve for balanced left-right cylinder performance, spring-trip cutting edge for obstacle protection (compression springs adjustable for tension), AR400 high-tensile skid shoes, 24-inch moldboard height, 16-inch fixed end plates, built-in back-drag system, and HLA’s 2-Year Commercial Warranty that specifically backs the 3000/4000/5000/6000 series.

For Canadian commercial snow contractors who clear properties with mixed-width requirements — wide commercial parking lots that connect through narrow gates, loading dock access ways, or properties with both open lots and tight side-paths — the 3500X is genuinely unique. There are very few competitor pushers offering true hydraulic expandable mouldboards in this size class, making the 3500X HLA’s strongest differentiation play against imported pusher alternatives.

On Aglist, this page goes beyond HLA’s brochure to help Canadian commercial buyers understand exactly when the 3500X’s expandable design is worth its meaningful premium over the fixed-width 3500 Series, how the hydraulic system works in real operation, and which machines pair best with the expandable pusher.

Aglist advantage: Use the 3500X Series Reviews & Ratings section below to compare real Canadian owner feedback on expandable pusher performance, hydraulic reliability in cold operation, the spring-trip cutting edge in commercial duty, and the long-term value of HLA’s most-innovative SnowPusher.

Quick Specs

• Equipment type: Hydraulically expandable commercial snow pusher
• Manufacturer: HLA Snow / Horst Welding (Wallenstein, Ontario, Canada)
• Series: 3500X SnowPusher
• Compatible machines: Skid steers, compact wheel loaders, agricultural tractors
• Target machine operating weight: 6,000 to 10,000 lb
• Maximum operating weight rating: 10,000 lb
• Available width models:
  • 6 ft retracted → 10 ft extended (Part # SP3500X610LF, weight 1,355 lb)
  • 7 ft retracted → 11 ft extended (Part # SP3500X711LF, weight 1,435 lb)
  • 8 ft retracted → 12 ft extended (Part # SP3500X812LF, weight 1,520 lb)
• Moldboard height: 24 inches
• End plate depth: 16 inches (fixed)
• Hydraulic system: Flow divider valve for balanced left/right cylinder performance
• Cutting edge: Spring-trip with adjustable compression springs (steel or rubber options)
• Skid shoes: AR400 high-tensile steel, fixed side skid shoes
• Back-drag: Built-in (integrated, not optional)
• Mounting: Universal SSL, JDQA, Euro/Global, Kubota, Bush Hog, Westendorf, and other major loader styles
• Country of manufacture: Made in Canada
• Warranty: 2-Year Commercial Warranty (HLA’s heavy-duty series designation)

Reviews & Ratings on Aglist

Factory specifications tell you what the HLA SnowPusher 3500X Series is engineered to do. Real owner reviews tell you whether the hydraulic expandable design actually delivers the operational versatility that justifies its premium over the fixed-width 3500.

What 3500X Series buyers consistently want to know:

• Does the expandable mouldboard actually save attachment-swap time in real daily operation?
• How reliable is the hydraulic system in Canadian cold-weather conditions (–25°C and below)?
• Is the 3500X worth the premium over running two fixed-width pushers (e.g., a 7-ft 3500 and a 10-ft 3500)?
• How does the flow divider valve perform in real heavy-snow expanding/retracting cycles?
• Real-world spring-trip cutting edge wear vs standard non-trip steel edges?
• How does the 3500X compare to other variable-width pushers (Kage SnowFire, Western Pile Driver XL)?
• For a 9,000 lb machine, is the 6→10 ft model enough or do I need the 7→11 ft?

This is where real Canadian owner experience matters most. The 3500X serves a specific niche — commercial operators with mixed-width clearing requirements — and the owner satisfaction pattern tends to be polarized. Operators who genuinely benefit from the expandable design love the 3500X; operators who use it predominantly at one width often regret paying the premium over the fixed-width 3500 Series. Owner reviews on this page help future buyers understand which camp they’re likely to land in before purchasing.

What Makes the 3500X Different

Three engineering decisions define the 3500X within HLA’s SnowPusher lineup.

Hydraulic Expandable Mouldboard

This is the 3500X’s signature feature and the entire reason to choose it over the fixed-width 3500 Series. The pusher’s mouldboard slides on a support shaft to expand or contract, controlled by hydraulic cylinders activated from the operator’s seat.

Working width adjustability:

• 6 ft retracted → 10 ft extended — small commercial / compact operations
• 7 ft retracted → 11 ft extended — mid-range commercial (most-installed)
• 8 ft retracted → 12 ft extended — larger commercial operations

The operator can extend, retract, or partially extend the mouldboard during operation — no leaving the seat, no attachment swap. Width adjustment happens in seconds via the in-cab hydraulic control.

Practical Benefits

The expandable design pays back in several specific scenarios:

• Property with wide lots connected through narrow gates — clear the lot wide, retract to fit through gates
• Mixed-tenant properties — different tenants with different working width preferences
• Commercial-residential mixed routes — wide for commercial lots, narrow for residential driveways
• Storage-constrained operations — single attachment that handles what would otherwise need two pushers
• Multi-machine fleet rotation — pusher adapts to whichever machine is available

For operators whose work doesn’t include these scenarios, the expandable design is paying premium for unused capability — the fixed-width HLA 3500 Series delivers comparable performance at lower cost.

Flow Divider Valve

The hydraulic system on the 3500X uses a flow divider valve that ensures balanced left-right cylinder performance when changing clearing width. The practical importance:

• Both sides of the mouldboard extend and retract at equal speed
• The pusher stays balanced and level during width changes
• No “racking” or asymmetric extension that would damage the mechanism
• Smoother operation across the full width range

This is a meaningful engineering detail — less-engineered competitor expandable designs often suffer from asymmetric extension that causes binding, premature wear, and operator frustration. HLA’s flow divider valve solves this problem at the hydraulic system level.

Spring-Trip Cutting Edge with Adjustable Tension

The 3500X uses a spring-trip cutting edge as standard equipment (not optional like on some other HLA SnowPusher models). When the cutting edge strikes a hidden obstacle (manhole cover, frozen curb, drainage grate), the edge trips backward to absorb the impact, then springs back to position.

The compression springs are adjustable for tension — operators can dial in the trip threshold based on operating conditions:

• Higher tension — edge stays planted firmly for aggressive scraping
• Lower tension — edge trips more easily, maximum obstacle protection

For commercial properties with hidden obstacles, the standard spring-trip cutting edge is a meaningful daily-operation advantage. Without spring-trip protection, obstacle strikes can damage the cutting edge, skid shoes, mounting hardware, and the machine’s loader arms.

How the Expandable Mouldboard Works

The expandable mouldboard is the 3500X’s defining feature — worth understanding in detail before purchase.

Mechanical Design

The mouldboard consists of:

1. Center fixed section — mounted to the attachment frame; doesn’t move
2. Left expandable section — slides outward on a support shaft, actuated by hydraulic cylinder
3. Right expandable section — slides outward on the same support shaft, actuated by separate cylinder
4. End plates — fixed to the expandable sections, move with them

When the operator activates the hydraulic control:

• Both cylinders extend simultaneously
• Both expandable sections slide outward equally
• The flow divider valve ensures equal extension speed
• Working width increases by up to 4 feet over the retracted width

When activated in reverse:

• Both cylinders retract simultaneously
• Both expandable sections slide inward
• Working width returns to the retracted dimension

Control & Operation

The hydraulic control is integrated into the operator’s existing in-cab hydraulic controls — typically using one of the auxiliary hydraulic functions already available on most commercial skid steers, compact wheel loaders, and ag tractors with hydraulic remotes.

Time to fully extend or retract is typically 5-10 seconds from operator activation. The hydraulic system flow is matched to the cylinder volumes to provide smooth, controlled movement.

What the Hydraulic Connection Requires

The 3500X requires the host machine to provide:

• Auxiliary hydraulic supply and return (one set of quick-couplers)
• Sufficient hydraulic flow (typical commercial skid steers have appropriate flow)
• Operator-accessible hydraulic control (standard auxiliary hydraulics function)

Most current Canadian commercial skid steers, compact wheel loaders, and ag tractors with hydraulic remotes are compatible. Verify hydraulic capacity with your machine’s specifications and with your HLA dealer.

Spring-Trip Cutting Edge

The standard cutting edge on the 3500X is a spring-trip steel edge with adjustable compression springs.

Cutting Edge Options

Standard spring-trip steel (factory): Reversible steel cutting edge with spring-trip protection. Most-installed configuration. Aggressive scraping with obstacle protection.

Rubber cutting edge (option): Surface-protective alternative. Available in lieu of the standard steel edge. Best for clean commercial pavement.

Why Spring-Trip Matters

Without spring-trip protection, hidden-obstacle strikes can cause meaningful damage:

• Cutting edge: bent, gouged, or torn
• Skid shoes: deformed by sudden force
• Mounting hardware: bolts stretched or sheared
• Machine: loader arms strained, hydraulic pressure spikes

Spring-trip absorbs the impact at the cutting edge level — the edge trips backward, then springs back to position. The host machine and the rest of the pusher structure see significantly reduced impact force.

For commercial operators clearing properties with unknown obstacles (especially shared commercial lots where you can’t pre-survey all hazards), spring-trip is a meaningful protection feature.

Adjustable Spring Tension

The compression springs can be adjusted for tension — typically by adding or removing washers, or adjusting bolt-on settings (verify exact procedure with your HLA dealer for your specific 3500X configuration).

Typical tension setup:

• High tension — edge stays firmly planted for hardpack scraping
• Medium tension — balanced default position
• Low tension — maximum obstacle protection (edge trips on lighter contact)

Most operators find the medium default works for typical conditions and only adjust if encountering specific problems.

Construction & Build Quality

The 3500X shares HLA’s signature SnowPusher construction principles, with additional engineering for the hydraulic system.

Mouldboard: 24-inch tall welded steel, with center fixed section and left/right sliding expandable sections.

End plates: 16-inch fixed depth, attached to the expandable sections (moves with them).

Support shaft: Heavy-gauge steel rod on which the expandable sections slide. Critical wear surface; designed for long service life with proper lubrication.

Skid shoes: AR400 high-tensile steel, fixed side configuration that maintains blade level so all cutting edges wear evenly.

Hydraulic system: Twin cylinders (one per side), flow divider valve, standard hydraulic couplers compatible with most commercial machines.

Cutting edge: Spring-trip standard, with adjustable compression springs.

Frame: Heavy-gauge welded steel throughout, reinforced mounting points, powder-coat finish.

Built-in back-drag: Integrated into the structure (not optional — included as standard).

Optional upgrades:

• Optional rear 3PH mount kit (use the 3500X as a rear-pull attachment)
• Optional rubber cutting edge (in lieu of steel)
• Optional snowblade marker for visibility
• Optional poly bolt-on endplate runner (for surface protection)

Sizing the 3500X

The 3500X is available in three width models. Match the model to your machine’s operating weight and your typical working width requirements.

Sizing by Model

Model	Retracted Width	Extended Width	Best For
SP3500X610LF	6 ft	10 ft	Small commercial / compact operations
SP3500X711LF	7 ft	11 ft	Mid-range commercial (most-installed)
SP3500X812LF	8 ft	12 ft	Larger commercial operations

Operating Weight Considerations

All three 3500X models share the same maximum operating weight rating: 10,000 lb. Match the width model to:

1. The machine’s HP and traction capability — wider extended widths require more push capacity
2. The typical working width — choose the model whose retracted width matches your tight-quarter requirements
3. The maximum width needed — choose the model whose extended width matches your wide-open requirements

For most Canadian commercial operators in the 7,000-9,500 lb skid steer / CTL class (Kubota SVL75-3, John Deere 318 P-Tier), the 7→11 ft model is the most-common choice — providing useful narrow working width for gates and tight quarters, plus enough extended width for typical commercial parking lots.

For broader sizing guidance and brand comparison covering all snow pusher options, see our Snow Pushers for Skid Steers buyer’s guide.

Best Applications for the 3500X

The HLA 3500X Series fits a specific operational profile.

Best fit for the 3500X:

• Commercial snow contractors clearing properties with mixed-width requirements (wide lots + narrow access)
• Property managers with multi-tenant or multi-function commercial buildings
• Operations clearing both commercial and residential properties on the same route
• Operators wanting to reduce attachment inventory — one expandable pusher replaces multiple fixed-width units
• Multi-machine fleets where the pusher rotates across different machines
• Storage-constrained operations with no room for multiple fixed-width pushers
• Operators valuing spring-trip cutting edge protection as standard equipment

Best fit with optional rear 3PH mount:

• Operations using the pusher both forward and rearward
• Properties with locations requiring back-drag clearing larger than the integrated back-drag handles

Less suitable for:

• Operations that predominantly clear at one fixed width — the HLA 3500 Series delivers comparable performance at lower cost
• Machines under 6,000 lb operating weight — step down to HLA 2500 Series
• Production-class operations with machines over 10,000 lb operating weight — step up to HLA 4500 Series
• Buyers without auxiliary hydraulic capacity on their machine — the 3500X requires hydraulic connection
• Buyers in extremely cold operating environments (-30°C+ regular) — hydraulic systems require special attention in extreme cold

The honest assessment: the 3500X is genuinely unique in HLA’s lineup and the commercial snow pusher market — but it only makes financial sense when the expandable feature is actually used regularly. Operators who use the variable width 30%+ of operating hours typically pay back the premium quickly. Operators who use the variable width occasionally often regret not staying with the HLA 3500 Series at lower cost.

3500X vs 3500 vs 3530W

The 3500X’s most-common cross-shop is against HLA’s other 3500-class options.

Feature	3500 Series	3500X Series	3530W Series
Target Operating Weight	5,500-15,000 lb	6,000-10,000 lb	5,500-15,000 lb
Working Width	Fixed (7-12 ft choice at purchase)	Variable (6→10, 7→11, 8→12 ft)	Fixed + hydraulic wings
Mouldboard Height	38″ (taller)	24″ (lower-profile)	30″ with wing extensions
End Plate Depth	36″	16″ fixed	Floating with wings
Hydraulic Required	No	Yes	Yes
Spring-Trip Cutting Edge	Optional	Standard	Optional
Carbide Cutting Edge Option	Yes	No	Available with Edge Flex
Edge Flex Option	Yes	Limited	Standard on 3530W
Maximum Clearing Width (extended)	12 ft	12 ft (extended)	15 ft (with wings)
2-Year Commercial Warranty	Yes	Yes	Yes
Approx CAD Price	$5,500-$10,500	$11,000-$18,000+	$14,000-$22,000+

Choose the 3500 Series if you predominantly clear at one fixed width and value lower cost. Most-popular HLA SnowPusher for commercial skid steers and CTLs. Higher 38″ mouldboard with deeper 36″ end plates contains more snow per pass at any given width.

Choose the 3500X Series if your work involves regular width-change requirements — wide lots connected through narrow gates, mixed commercial/residential routes, multi-machine fleet rotation. The hydraulic expandable design pays back when used regularly.

Choose the 3530W Series if you need both pusher AND angle-plow capability in one attachment — hydraulic wings pivot up to 180° for angled plowing in addition to straight pushing. Substantially more capable than 3500X but at meaningfully higher cost.

The 3500 vs 3500X decision is the most-common cross-shop. Most commercial operators choose the fixed-width 3500 unless they have specifically identified a mixed-width requirement that justifies the expandable premium.

For broader HLA Snow brand information, see the HLA Snow brand page.

Maintenance & Long-Term Ownership

The 3500X has a more involved maintenance profile than fixed-width pushers — primarily because of the hydraulic system and the sliding mouldboard.

Routine maintenance:

• Hydraulic system inspection monthly — check cylinder seals, hose condition, fluid level
• Support shaft lubrication — keep the sliding shaft greased per HLA’s recommended interval
• Cutting edge inspection weekly during heavy use; replace when worn or spring-trip ineffective
• Skid shoe inspection monthly; AR400 fixed-side shoes typically last multiple seasons
• Cylinder couplers — clean before each connection, verify positive engagement
• Spring tension check bi-monthly during season
• Powder-coat inspection annually

Typical wear part replacement costs:

• Steel spring-trip cutting edge (reversible): $500-800 CAD per replacement
• Rubber cutting edge: $400-650 CAD per replacement
• AR400 fixed skid shoes: $400-650 CAD per pair
• Hydraulic cylinder rebuild kit: $200-400 CAD per cylinder (if needed)
• Spring tension adjustment kits: $80-200 CAD

Cold-weather considerations:

The hydraulic system requires extra attention in Canadian cold conditions:

• Hydraulic fluid should be specified for cold operation (verify your machine’s fluid grade)
• Allow hydraulics to warm up before full-extension cycles at start of operation
• Inspect hose flexibility weekly during extreme cold
• Avoid full-extension cycles when hydraulic fluid is below operating temperature

For broader prairie winter operation guidance, see our prairie winter skid steer operation guide.

Long-term ownership:

• Structural pusher (mouldboard, side walls, frame) typically lasts 15-25+ years
• Hydraulic system requires periodic inspection and occasional cylinder seal replacement
• Strong resale value due to HLA brand recognition and unique expandable design

Frequently Asked Questions

Where can I read HLA SnowPusher 3500X reviews and ratings?

On Aglist, the Reviews & Ratings section helps Canadian buyers compare owner feedback, real operating experience, and long-term ownership impressions before choosing the 3500X.

Is the HLA 3500X made in Canada?

Yes. HLA Snow manufactures the SnowPusher 3500X Series in Wallenstein, Ontario, as part of Horst Welding’s broader Canadian manufacturing operation.

What’s the difference between the HLA 3500 and 3500X?

The 3500 has fixed working width (you choose 7, 8, 9, 10, or 12 ft at purchase). The 3500X has hydraulically actuated expandable mouldboard — working width adjusts on the fly from the operator’s seat between retracted (6, 7, or 8 ft) and extended (10, 11, or 12 ft) dimensions. The 3500 has taller mouldboard (38″ vs 24″) and deeper end plates (36″ vs 16″), so it contains more snow per pass at fixed width. The 3500X costs approximately 70-100% more than equivalent 3500 configurations.

Is the expandable feature worth the premium?

Only if you genuinely use it regularly. Operations with mixed-width clearing requirements (wide lots + narrow access, multi-property routes, gated commercial properties) benefit substantially from the expandable design. Operations clearing at predominantly one width often regret paying the premium over the fixed-width 3500.

Honest evaluation question: in a typical clearing operation, how often would you actually change pusher width if you could? If the answer is “frequently” — the 3500X pays back. If the answer is “rarely” — the 3500 is the better value.

What hydraulic flow does the 3500X require?

The 3500X requires the host machine to provide auxiliary hydraulic supply with sufficient flow for cylinder operation. Most current commercial skid steers, compact wheel loaders, and ag tractors with hydraulic remotes are compatible. Verify hydraulic capacity with your machine’s specifications and your HLA dealer.

Can the 3500X mount to my Kubota SVL75-3?

Yes. The 3500X mounts via universal SSL Quick-Tach (compatible with all current Kubota SVL/SSV models). The Kubota SVL75-3’s operating weight (~9,500 lb) is within the 3500X’s 6,000-10,000 lb target range. The 7→11 ft model is the most-common choice for the SVL75-3.

What size 3500X do I need?

Match the model to your machine and typical work:

• 6→10 ft model: Small commercial operations, 6,000-7,500 lb machines, tight-quarter retracted operation
• 7→11 ft model: Most-installed size, 7,000-9,000 lb machines, balanced commercial use
• 8→12 ft model: Larger commercial operations, 8,500-10,000 lb machines, predominantly wide working width

All three models share the 10,000 lb maximum operating weight rating; choose primarily based on your typical clearing width requirements.

Does the 3500X have spring-trip protection standard?

Yes. The 3500X includes a spring-trip cutting edge as standard equipment, with adjustable compression springs for tension. This protects the cutting edge, skid shoes, mounting hardware, and the host machine from obstacle-strike damage.

Does the 3500X have a back-drag?

Yes. The 3500X has a built-in back-drag — integrated into the structure as standard equipment (not optional). The back-drag pulls snow when the machine is reversed, useful for clearing along garage doors, walls, and tight corners.

Can the 3500X mount on a rear 3PH (3-point hitch)?

Yes — HLA offers an optional rear 3PH mount kit that allows the 3500X to attach to a tractor’s rear 3-point hitch for back-drag operation. This is useful for operations where the operator wants both forward-push capability (via front loader mount) AND rear-pull capability (via 3PH mount).

What’s the typical price of an HLA 3500X SnowPusher in Canada?

As of 2026, the HLA 3500X typically ranges:

• SP3500X610LF (6→10 ft): $11,000-$13,500 CAD
• SP3500X711LF (7→11 ft): $12,500-$15,500 CAD
• SP3500X812LF (8→12 ft): $14,000-$18,000+ CAD

Bolt-on kit (frame mount) is approximately $400-700 CAD additional. Rubber cutting edge option, snowblade marker, poly bolt-on endplate runner, and rear 3PH mount add to base pricing. Confirm current pricing with your local HLA dealer.

How long does an HLA 3500X SnowPusher last?

The structural pusher typically lasts 15-25+ years with proper care. The hydraulic system requires periodic inspection and occasional cylinder seal replacement throughout that service life — but most components are serviceable without replacing the entire pusher. Strong resale value due to HLA brand recognition.

How does the 3500X compare to Kage SnowFire or Western Pile Driver XL?

All three are commercial variable-width pusher concepts but with different mechanical approaches. Kage SnowFire converts between pusher and angle-plow modes using hydraulic side wings. Western Pile Driver XL also uses hydraulic side wings. HLA’s 3500X uses a sliding-mouldboard design that’s mechanically simpler than wing designs. For straight push-only operations with width variation, the 3500X is typically the most cost-effective choice. For operations needing both push AND angle-plow capability, Kage or Western may be more appropriate. Cross-shop based on your specific operational needs.

Can the 3500X work in –30°C prairie operation?

With proper preparation, yes. Use cold-weather-rated hydraulic fluid, allow the hydraulic system to warm up before full-extension cycles, and verify hose flexibility regularly during extreme cold. Most Canadian commercial operators in prairie provinces successfully operate hydraulic pushers year-round with appropriate setup. For complete prairie operation guidance, see our prairie winter skid steer operation guide.

What’s the warranty on the 3500X?

HLA Snow backs the 3500X with the 2-Year Commercial Warranty that applies to the 3000, 4000, 5000, and 6000 series (the heavy-duty designation). The warranty covers manufacturing defects under commercial duty cycles. Wear items (cutting edges, skid shoes, paint) are not covered.

Reviews & Ratings on Aglist

Share your experience

Similar Equipment

• HLA SnowPusher 3500 — fixed-width commercial pusher for same machine class
• HLA SnowPusher 3530W — hybrid pusher with hydraulic wings (push + angle plow)
• HLA Snow — brand catalog with complete product lineup

Note: We try our best to keep specs and information accurate, but some details can be missing or different depending on the source. Before you buy, service, or repair equipment, please double-check key specs with the manufacturer, the owner’s manual, or your dealer.

About reviews: Reviews on Aglist are written by real users. We moderate them for spam and abuse, but opinions and claims are still personal—so use them as guidance, not as a guarantee.
