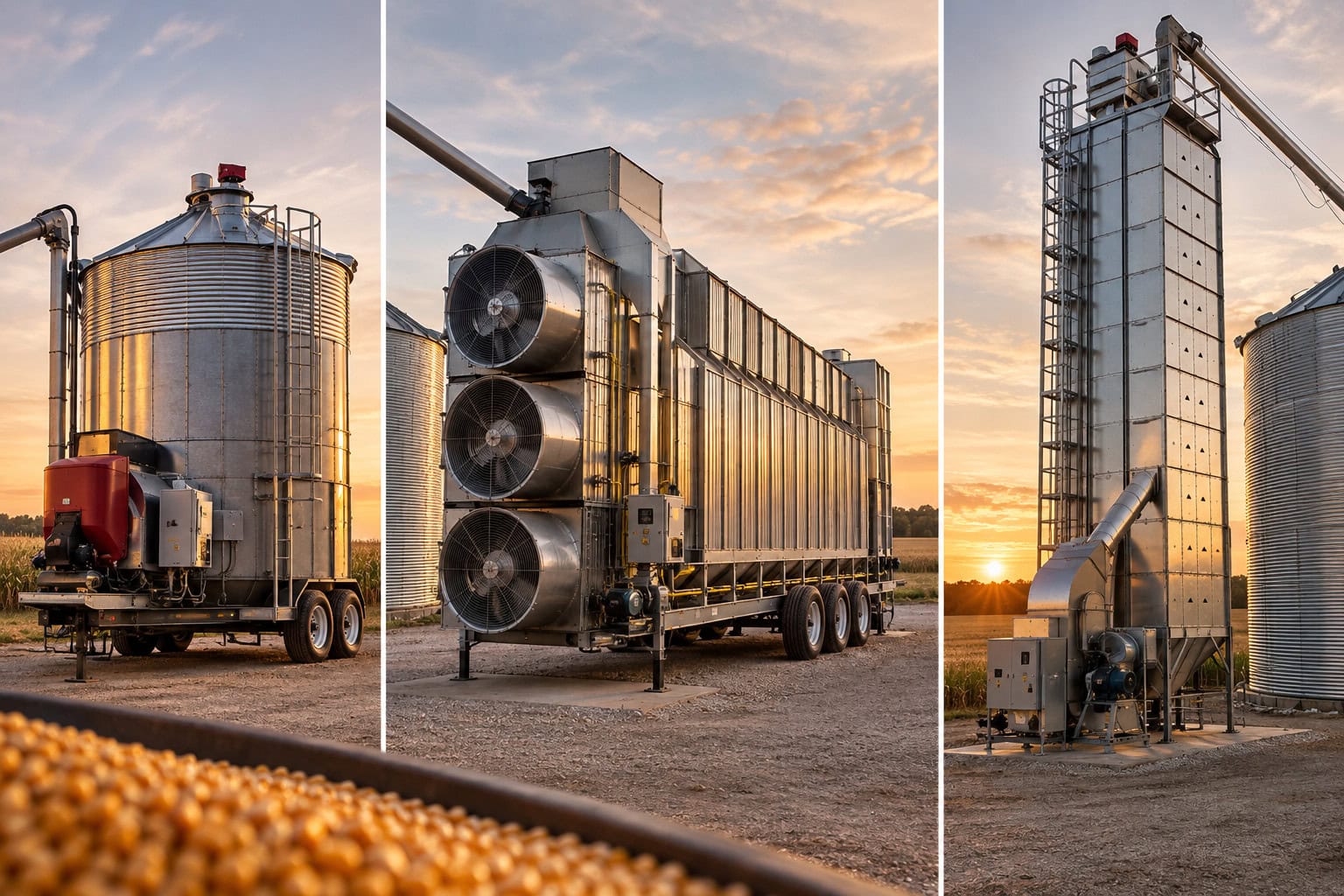

Batch vs Continuous-Flow vs Mixed-Flow Grain Dryers: Which Type Is Right for Your Farm?

Choosing a grain dryer starts long before comparing model numbers or burner sizes.

The first decision is how you want grain to move through the drying system.

For most Canadian farms, the main choice comes down to:

• batch drying
• continuous-flow drying

Mixed-flow is often listed as a third category, but technically that can be misleading.

A mixed-flow dryer is normally a type of continuous-flow dryer. Grain continuously moves through the machine while heated air passes through the grain from alternating directions.

That distinction matters because a farm comparing a GT recirculating batch dryer with a GSI portable dryer and a mixed-flow system is really making two decisions:

1. Batch or continuous operation?
2. If continuous, which dryer architecture?

This guide explains both decisions and how they apply to wheat, canola, barley, corn and other crops on Canadian farms.

Quick Comparison

Feature	Recirculating Batch	Continuous-Flow	Mixed-Flow
Grain movement	One batch at a time	Grain enters and exits continuously	Continuous
Typical farm size	Small to medium	Medium to very large	Medium to very large
Throughput	Lower to moderate	Moderate to very high	Moderate to very high
Moisture flexibility	Excellent	Good, best with steady incoming grain	Good
Grain mixing during drying	Recirculated repeatedly	Usually limited	Air passes through grain from multiple directions
Automation potential	Moderate to high	High	High
Infrastructure requirement	Often simpler	Higher	Higher
Wet holding bin importance	Moderate	Very important	Very important
Best strength	Control and simplicity	High sustained throughput	Uniform drying and screenless designs
Typical example	GT RB Series	GSI portable, Super-B SQ	GSI Mixed Flow and other mixed-flow dryers

The most important thing to remember is that mixed-flow belongs inside the continuous-flow family.

What Is a Batch Grain Dryer?

A batch dryer processes a defined amount of grain at one time.

The process normally looks something like this:

1. Load the dryer.
2. Heat and dry the grain.
3. Recirculate or mix the grain if the machine is designed for it.
4. Reach the target moisture.
5. Unload the batch.
6. Load the next batch.

Some batch dryers cool grain before unloading. Others move hot grain to storage where cooling occurs later.

One of the most common farm-scale examples is the recirculating batch dryer.

GT Manufacturing specializes in this type of dryer.

For example, the GT RB500 holds 500 bushels and continuously recirculates the batch through the drying chamber during operation.

The grain is still processed as one batch even though it is constantly moving inside the machine.

How a Recirculating Batch Dryer Works

A recirculating batch dryer uses an internal auger or circulation system to repeatedly move grain through the dryer.

Instead of the same kernels remaining in one position beside the burner or plenum, grain is mixed throughout the drying process.

The objective is more uniform moisture removal.

This can be especially useful when incoming grain varies.

Imagine several loads of wheat coming from different parts of a field.

One load may test 17 percent moisture.

Another may be 19 percent.

A third may contain wetter pockets.

A batch system gives the operator the ability to treat that group of grain separately rather than immediately feeding everything into one continuous stream.

Advantages of Batch Grain Dryers

Simple Operating Concept

Batch drying is easy to understand.

Fill it.

Dry it.

Check moisture.

Unload it.

Repeat.

Modern automation can handle much of the process, but the basic workflow remains straightforward.

Good Control Over Each Batch

A major advantage is the ability to adjust drying around a specific load.

That can help when:

• moisture changes significantly between fields
• crops change frequently
• small volumes are being dried
• grain quality needs careful monitoring

Grain Is Mixed During Drying

Recirculating designs repeatedly mix the grain.

That can reduce moisture variation within the batch.

Lower Infrastructure Requirements

A farm-scale batch dryer can often be installed with less surrounding infrastructure than a large continuous-flow system.

Some GT machines can even use PTO power, which can be attractive where electrical service is limited.

The GT 245XL, for example, represents the smaller end of this approach.

Good Fit for Smaller Operations

A farm drying a moderate number of bushels each season may not need an expensive permanent continuous-flow installation.

Batch drying can provide enough capacity without building the entire grain site around the dryer.

Disadvantages of Batch Drying

The biggest limitation is throughput.

Every batch involves a cycle.

There is loading time.

Drying time.

Possibly cooling time.

Unloading time.

Then another batch has to begin.

Even highly automated batch dryers still have this basic limitation.

As harvested volume grows, the dryer can eventually become the bottleneck.

A combine producing grain faster than the dryer can process it creates a simple problem:

the wet grain has to go somewhere.

When Batch Drying Starts Becoming a Bottleneck

Suppose a dryer processes 300 bushels per hour under the moisture conditions you normally encounter.

If your combine brings in 600 bushels per hour for several hours, the difference accumulates.

After one hour:

300 bushels behind

After five hours:

1,500 bushels behind

After ten hours:

3,000 bushels behind

A large wet holding bin can absorb some of that difference.

But eventually the dryer has to catch up.

This is why daily throughput matters more than simply asking how many bushels the dryer holds.

Who Should Consider a Batch Dryer?

Batch drying deserves serious consideration for:

• smaller grain farms
• farms drying moderate seasonal volumes
• mixed farms
• operations with variable incoming moisture
• farms frequently switching crops
• operations with limited electrical infrastructure
• farms where a PTO-powered dryer is useful
• operators who prefer simple equipment

As acreage and combine output rise, continuous flow becomes increasingly attractive.

What Is a Continuous-Flow Grain Dryer?

A continuous-flow dryer operates differently.

Wet grain enters the dryer while dried grain exits at the same time.

Once the dryer reaches normal operating conditions, the process does not stop between loads.

Think of it as a processing line rather than a series of containers.

Wet grain enters.

Heat and airflow remove moisture while grain moves through the dryer.

Dry grain exits.

More wet grain enters behind it.

This allows the system to run for many hours without stopping for a normal batch cycle.

GSI describes its portable dryers as continuous-flow machines available in single, double and triple-module configurations. They can operate in All Heat or Dry/Cool modes. citeturn294158search2

Super-B’s current SQ range also centres around continuous-flow drying, while Aglist’s GSI grain dryer hub covers continuous portable models from the 1100 through 2300 Series. citeturn969966view1turn969966view2

The Main Advantage of Continuous Flow

Throughput.

A correctly sized continuous dryer can stay much closer to combine output throughout the harvest day.

There is no need to:

fill a complete batch,

wait,

empty it,

and start again.

This becomes increasingly important as combine capacity increases.

A Class 8 or Class 9 combine can move a tremendous amount of grain during a good harvest day.

Two combines can overwhelm a smaller drying system very quickly.

At that point, the dryer needs to operate more like permanent farm infrastructure than an occasional piece of equipment.

Continuous Flow Still Needs a Wet Bin

A continuous dryer does not eliminate wet-grain storage.

In many ways, it makes wet holding even more important.

The dryer needs a consistent supply of grain.

If the dryer can process 1,000 BPH but the wet bin or loading system can only deliver 600 BPH, you effectively own a 600 BPH drying system.

The same problem exists after the dryer.

The takeaway system also needs sufficient capacity.

A continuous drying site normally includes:

• wet holding
• dryer
• loading auger, conveyor or leg
• dry-grain takeaway
• storage bins
• aeration
• fuel supply
• adequate electrical service
• controls and sensors

The dryer is only one part of the system.

Advantages of Continuous-Flow Dryers

High Sustained Throughput

This is the main reason large farms move toward continuous flow.

Once the system is running properly, grain can keep moving.

Easier to Match Multiple Combines

Continuous drying is easier to integrate into high-output harvesting operations.

It still needs to be sized correctly, but the system is better suited to sustained incoming grain.

High Level of Automation

Modern dryers can automatically monitor and adjust:

• discharge rate
• grain temperature
• moisture
• burner operation
• fan operation

Some systems can also be monitored remotely.

GSI Connect, for example, supports remote monitoring and control of compatible portable dryers, including temperature, moisture, status and unload settings. citeturn294158search12

Wide Capacity Range

Continuous flow does not automatically mean a massive commercial tower.

Portable continuous-flow dryers can serve farm operations, while tower systems can reach commercial-scale capacities.

GSI’s current portfolio alone includes portable dryers, mixed-flow dryers, modular towers and T-Series tower dryers. citeturn294158search0

Disadvantages of Continuous Flow

More Infrastructure

The dryer needs grain arriving continuously and leaving continuously.

That means the surrounding site becomes critical.

Higher Initial Investment

The dryer itself may cost more, but infrastructure can add substantially to the project.

Less Forgiving of Poor Sizing

A continuous dryer that is too small creates a harvest bottleneck.

A dryer that is dramatically oversized can leave expensive capacity unused.

Consistent Feeding Matters

Continuous systems generally perform best when they have a steady supply of grain.

Repeated starting and stopping can reduce the advantage of continuous operation.

What Is a Mixed-Flow Grain Dryer?

This is where terminology often becomes confusing.

A mixed-flow dryer is normally a continuous-flow dryer design.

It is not simply another operating mode like batch drying.

Grain enters at the top and gradually moves downward through the dryer.

Air ducts are positioned throughout the grain column.

Heated air enters the grain from multiple directions and exhaust air leaves through alternating ducts.

As grain moves downward, different kernels experience airflow from different directions.

This is where the term mixed-flow comes from.

GSI currently lists Mixed Flow Dryers directly inside its Continuous Flow Drying product family and emphasizes their screenless design. citeturn294158search0

Why Mixed-Flow Dryers Are Often Screenless

Many conventional portable dryers use perforated screens to contain the grain while allowing heated air to pass through.

Mixed-flow systems can instead use internal air ducts.

This can eliminate the need for large external grain screens.

For Canadian crops, that can be attractive.

Fines, chaff and small seeds can create cleaning issues on screened dryers.

A screenless dryer can reduce exterior screen cleaning.

That does not mean a mixed-flow dryer requires no maintenance.

It simply changes where and how cleaning is required.

Vertec Is Another Useful Example

Older Vertec dryers are highly relevant to Prairie farmers because many remain in service across Western Canada.

Aglist’s Vertec grain dryer hub describes the machines as screenless continuous multi-flow dryers.

Grain moves downward through the dryer while hot and cooler airflow passes through different sections.

For used-dryer buyers in Saskatchewan or Alberta, this is an important reminder that screenless continuous drying is not a new concept. citeturn812955search10

Advantages of Mixed-Flow Drying

More Uniform Air Exposure

Air enters the grain mass from alternating directions.

This can help reduce differences between grain closer to the hot-air source and grain farther away.

Screenless Designs

Many mixed-flow dryers eliminate external perforated screens.

That can reduce screen plugging and exterior cleanout requirements.

High Continuous Throughput

Because mixed-flow is continuous, the design can handle significant daily grain volume.

Good Fit for Mixed Crops

Mixed-flow systems can be attractive for farms handling several crops where consistent moisture and gentle handling matter.

Disadvantages of Mixed-Flow Dryers

More Permanent Installation

Most mixed-flow systems are designed as part of a grain site rather than as a simple portable batch machine.

Infrastructure Cost

Wet holding, grain handling, electrical service and fuel infrastructure still need to match dryer capacity.

More Dryer Than Some Farms Need

A smaller operation drying only a limited amount of tough grain each year may struggle to justify the investment.

Dealer and Service Support Matter

Dryer architecture is only useful if the farm can keep it running.

A simpler dryer with strong local support can be a better investment than a theoretically superior dryer with parts several days away.

Cross-Flow vs Mixed-Flow

Another distinction worth understanding is cross-flow versus mixed-flow.

Cross-Flow

Air generally moves across the grain column from one side toward the other.

Grain closest to the hot-air side can experience different conditions from grain closer to the exhaust side.

Many portable and tower dryers use versions of this architecture.

Mixed-Flow

Air enters and exits through alternating ducts throughout the grain mass.

The grain experiences changing airflow directions as it descends.

The goal is more uniform exposure.

Neither architecture automatically wins.

Dryer performance depends on:

• column depth
• airflow
• burner control
• grain speed
• crop
• incoming moisture
• ambient temperature
• cooling strategy

Is a Tower Dryer the Same as a Continuous-Flow Dryer?

No.

This is another common terminology problem.

A tower dryer is one physical form of continuous-flow dryer.

Continuous flow describes how grain moves through the process.

Tower describes the physical dryer architecture.

There are also portable continuous-flow dryers.

For example, GSI separately offers portable dryers and T-Series tower dryers within its continuous-flow product range. citeturn294158search0turn294158search10

So:

All tower dryers used this way are continuous-flow systems, but not every continuous-flow dryer is a tower dryer.

All Heat vs Dry & Cool Is Another Separate Decision

These terms also describe operating modes, not fundamental dryer types.

All Heat

Most or all of the dryer is used for heating and moisture removal.

Grain leaves the dryer hot and is cooled later in storage.

The advantage is higher dryer throughput.

The disadvantage is that your bins and aeration system have to handle the cooling process correctly.

Dry & Cool

Part of the dryer removes moisture while another section cools the grain before discharge.

Throughput is generally lower because part of the machine is being used for cooling rather than drying.

The benefit is that grain arrives in storage closer to its final temperature.

GSI portable dryers officially support both All Heat and Dry/Cool operation. citeturn294158search2

Batch vs Staged Batch

There is another distinction worth making.

A dedicated GT recirculating batch dryer and a continuous dryer operating in a staged batch mode are not necessarily the same thing.

GT builds machines specifically around recirculating batch operation. Its current dryer lineup is explicitly marketed around recirculating batch and automatic batch drying. citeturn294158search1

Some GSI portable configurations can also operate in staged or batch modes.

That gives one dryer additional operational flexibility, but it does not turn it into the same mechanical design as a GT recirculating batch dryer.

Which Dryer Type Is Better for Wheat?

All three approaches can dry wheat successfully.

The better choice depends more on volume.

Smaller wheat operation

A batch dryer can work very well.

The farm gets strong control over individual batches without requiring a large permanent grain-handling system.

Large wheat operation

Continuous flow becomes more attractive as combine output increases.

The dryer can process grain steadily while harvesting continues.

Heavy continuous wheat volume

Mixed-flow may become attractive where the farm wants continuous capacity with a screenless design and more uniform airflow.

For Prairie wheat, capacity at your actual moisture removal matters more than the largest brochure number.

Which Is Better for Canola?

Canola deserves more attention because of its small seed size, oil content and sensitivity to excessive drying temperature.

The dryer needs:

• accurate temperature control
• consistent airflow
• careful moisture management
• good cleanout
• appropriate configuration for small seeds

Batch drying can offer excellent control for smaller volumes.

Continuous-flow systems work well for larger canola operations when properly configured.

Screenless mixed-flow systems can also be attractive because external screens are not collecting the same amount of fines and debris.

But no dryer architecture eliminates the need for correct canola temperatures and close monitoring.

Which Is Better for Corn?

Corn often creates much larger moisture-removal requirements than Prairie cereals.

A farm removing 10 points of moisture has a fundamentally different drying problem from a farm removing 3 points from wheat.

High-volume continuous-flow and tower dryers become particularly attractive where large amounts of wet corn need to be processed every day.

GSI’s largest current T-Series tower configurations are designed for extremely high continuous capacity. citeturn294158search10

For smaller corn volumes, batch drying can still work.

The issue is whether the batch cycle can keep up.

Batch vs Continuous Flow for a Single-Combine Farm

There is no automatic winner.

A single combine does not necessarily mean a small drying requirement.

A modern combine in a high-yield crop can still produce substantial daily grain volume.

But generally:

Batch makes more sense when:

• seasonal drying volume is moderate
• moisture varies significantly
• the farm values simplicity
• infrastructure is limited
• the dryer does not need to run continuously

Continuous flow makes more sense when:

• the combine runs long days
• the dryer frequently struggles to catch up
• significant wet holding already exists
• harvest delays are expensive
• acreage is growing

Two or More Combines Change the Equation

Once multiple combines are feeding one drying site, sustained throughput becomes increasingly important.

The question becomes:

Can the dryer process grain as quickly as the harvest system delivers it?

If not, the farm needs enough wet storage to absorb the difference.

A high-capacity continuous dryer is often the more natural solution.

But even a large dryer will fail to improve harvest if the grain-handling system around it cannot keep up.

The Real Dryer Bottleneck May Not Be the Dryer

Before upgrading from batch to continuous flow, inspect the whole system.

Wet holding

Can it store several hours of harvest output?

Loading capacity

Can the leg or auger feed the dryer at its full rated throughput?

Dryer capacity

What is its output at the moisture removal you actually need?

Takeaway

Can dry grain leave as quickly as the dryer produces it?

Storage

Are enough bins available?

Cooling

Can the aeration system safely cool hot grain if using All Heat?

A 2,000 BPH dryer surrounded by 1,200 BPH handling equipment remains roughly a 1,200 BPH system.

Fuel Efficiency: Does One Type Always Win?

No.

Fuel efficiency depends on much more than batch versus continuous.

Important factors include:

• moisture removed
• ambient temperature
• airflow
• burner efficiency
• heat recovery
• cooling strategy
• grain temperature
• crop
• dryer loading

Large continuous-flow systems can use heat-recovery designs to improve efficiency.

Batch systems can benefit from uniform grain mixing and careful control.

Comparisons should ideally use energy per bushel per point of moisture removed rather than simply total fuel burned per hour.

A bigger dryer burning more fuel per hour may still be more efficient per bushel.

Labour and Automation

Batch drying traditionally requires more attention because each batch must progress through a cycle.

Modern automatic batch systems reduce that workload.

Continuous dryers are particularly well suited to automation because the process can operate steadily.

But automation creates another requirement:

reliable sensors.

Moisture sensors, temperature sensors and discharge controls need to be properly calibrated.

A highly automated dryer running from bad sensor data can consistently produce the wrong result.

Which Type Is Easiest to Move?

Portable batch dryers are generally the easiest option when mobility matters.

GT has several current dryers built on portable running gear.

GSI also describes its portable continuous-flow line specifically as portable dryers.

So portability itself does not determine whether a dryer is batch or continuous.

There are:

• portable batch dryers
• portable continuous-flow dryers
• permanent continuous-flow dryers
• tower continuous-flow dryers
• mixed-flow continuous dryers

This is why dryer terminology can become confusing quickly.

Used Grain Dryers Change the Decision

On the used market, condition can matter more than architecture.

A clean, maintained continuous dryer with modern controls may be an excellent investment.

A neglected high-capacity dryer can become an expensive repair project.

Likewise, an older simple batch dryer can remain useful for decades if:

• burner is sound
• augers are good
• fan is healthy
• controls are safe
• structure is solid

Western Canada also has a significant population of older Vertec and Super-B dryers still in service.

When comparing used dryers, evaluate the machine you are actually looking at, not simply the design category.

Batch Dryer Examples on Aglist

Aglist currently has several GT recirculating batch dryers documented.

Examples include:

• GT 245XL
• GT 300
• GT RB500

GT’s official current lineup continues to centre on recirculating batch and automatic batch machines. citeturn294158search1

Continuous-Flow Examples on Aglist

Aglist has much deeper coverage on the continuous-flow side.

The GSI grain dryer lineup includes the 1100, 1200 and high-capacity 2300 Series.

The Super-B SQ Series covers continuous-flow models from smaller farm dryers through large SQ configurations.

The Vertec grain dryer lineup provides another important Canadian example, particularly for farms considering older screenless continuous dryers.

For an overview across manufacturers, browse Grain Dryers in Canada or read the Best Grain Dryers in Canada guide.

How to Choose: A Simple Decision Process

Step 1: Calculate actual daily wet grain

Do not start with dryer brochures.

Start with your harvest.

How many wet bushels can your combine or combines deliver on a strong harvest day?

Step 2: Determine normal moisture removal

A dryer rated at 1,000 BPH under one moisture-removal test may produce far less when significantly more moisture needs to be removed.

Always compare capacity at similar conditions.

Step 3: Decide whether batch cycles can keep up

If yes, batch may remain the simpler and more economical option.

If no, continuous flow deserves serious consideration.

Step 4: Evaluate your grain site

Continuous drying needs supporting infrastructure.

Do not size the dryer without sizing:

• wet storage
• electrical service
• fuel supply
• loading
• unloading
• cooling
• dry storage

Step 5: Choose continuous-flow architecture

If continuous drying is the better fit, compare:

• portable screened dryers
• mixed-flow dryers
• tower dryers
• screenless multi-flow designs

Step 6: Compare dealer support

Harvest downtime is expensive.

A dryer with slightly better theoretical performance may be the worse choice if parts and service are difficult to obtain in your area.

Which Grain Dryer Type Is Best?

There is no universal winner.

Choose a recirculating batch dryer when:

• drying volume is moderate
• you want simple operation
• moisture varies significantly
• infrastructure is limited
• PTO operation is useful
• controlling each batch is more important than maximum throughput

Choose a conventional continuous-flow dryer when:

• daily grain volume is high
• harvest needs to keep moving
• wet holding and takeaway systems can support continuous operation
• automation is valuable
• higher sustained BPH is required

Choose a mixed-flow continuous dryer when:

• you already need continuous throughput
• uniform airflow is a major priority
• a screenless design is attractive
• your grain site can support a permanent drying system

The right dryer is the one that removes moisture fast enough to keep harvest moving without sacrificing grain quality or creating an expensive capacity mismatch elsewhere in the system.

Final Thoughts

The most useful grain dryer comparison is not batch versus continuous versus mixed-flow as three completely separate categories.

The better way to think about it is:

First: Batch or continuous?

Then, if continuous is the answer:

What kind of continuous-flow system fits the farm?

Portable cross-flow?

Tower?

Mixed-flow?

Screenless multi-flow?

For smaller and moderate-volume farms, a recirculating batch dryer can remain one of the simplest ways to gain control over harvest moisture.

For larger farms, continuous flow removes the stop-and-start limitation and makes it easier to match modern combine output.

Mixed-flow then becomes one of several continuous architectures worth comparing, particularly when screenless construction and more uniform air distribution are priorities.

Do not choose based on dryer size alone.

Calculate harvest volume, moisture removal, wet holding, fuel requirements, handling capacity and storage first.

The dryer has to fit the entire grain system.

Browse Grain Dryers on Aglist to compare models, specifications and owner reviews across the major dryer types.

Frequently Asked Questions

What is the difference between batch and continuous-flow grain dryers?

A batch dryer processes a fixed amount of grain before unloading it and beginning another batch. A continuous-flow dryer has wet grain entering and dry grain leaving at the same time during normal operation.

Is a mixed-flow dryer a continuous-flow dryer?

Yes, in most agricultural dryer terminology, mixed-flow describes a type of continuous-flow dryer. Grain continuously descends through the dryer while air enters and exits through alternating ducts.

Is a tower dryer the same as a continuous-flow dryer?

Not exactly. Tower describes the physical dryer design. Continuous flow describes the operating process. Tower dryers are generally continuous flow, but many portable dryers are continuous flow as well.

What is a recirculating batch grain dryer?

A recirculating batch dryer repeatedly moves a fixed batch of grain through the drying system to help equalize moisture before the batch is discharged.

Are GT grain dryers batch dryers?

GT Manufacturing’s current lineup is centred around recirculating batch and automatic batch grain dryers.

Are GSI portable dryers continuous flow?

GSI’s current portable dryer range is part of its continuous-flow product family, although certain configurations can also support staged or batch operating modes.

Are Super-B dryers continuous flow?

The current Super-B Energy Miser SQ Series is primarily a continuous-flow dryer lineup with several configuration and drying-mode options.

Are Vertec dryers continuous flow?

The Vertec machines currently documented on Aglist are screenless continuous multi-flow dryers commonly found on the Canadian used market.

Is mixed-flow better than cross-flow?

Neither design is automatically better. Mixed-flow provides alternating airflow through the grain and often uses screenless construction. Cross-flow dryers can provide very high capacity and are available in many portable and tower configurations.

Which dryer type is best for a small farm?

A recirculating batch dryer can be attractive for smaller farms because of simpler operation, lower infrastructure requirements and good control over individual batches.

Which dryer type is best for a large farm?

Continuous-flow systems generally become more attractive as daily harvest volume increases because they can provide sustained throughput without batch loading and unloading cycles.

Which grain dryer is best for canola?

Batch, continuous-flow and mixed-flow systems can all dry canola when correctly configured. Temperature control, airflow, small-grain compatibility and moisture management are more important than dryer type alone.

Does continuous flow require a wet holding bin?

A wet holding bin is highly valuable because it provides a steady grain supply while allowing the combines and dryer to operate at different instantaneous rates.

Is All Heat the same as continuous flow?

No. All Heat is a drying mode where most or all dryer capacity is used for heating and grain is cooled later. A continuous-flow dryer may operate in All Heat or Dry/Cool depending on its design.

How do I know what dryer capacity I need?

Start with peak daily combine output and the amount of moisture you normally need to remove. Then ensure the dryer, wet holding, loading equipment, takeaway system and storage can all support the required throughput.
