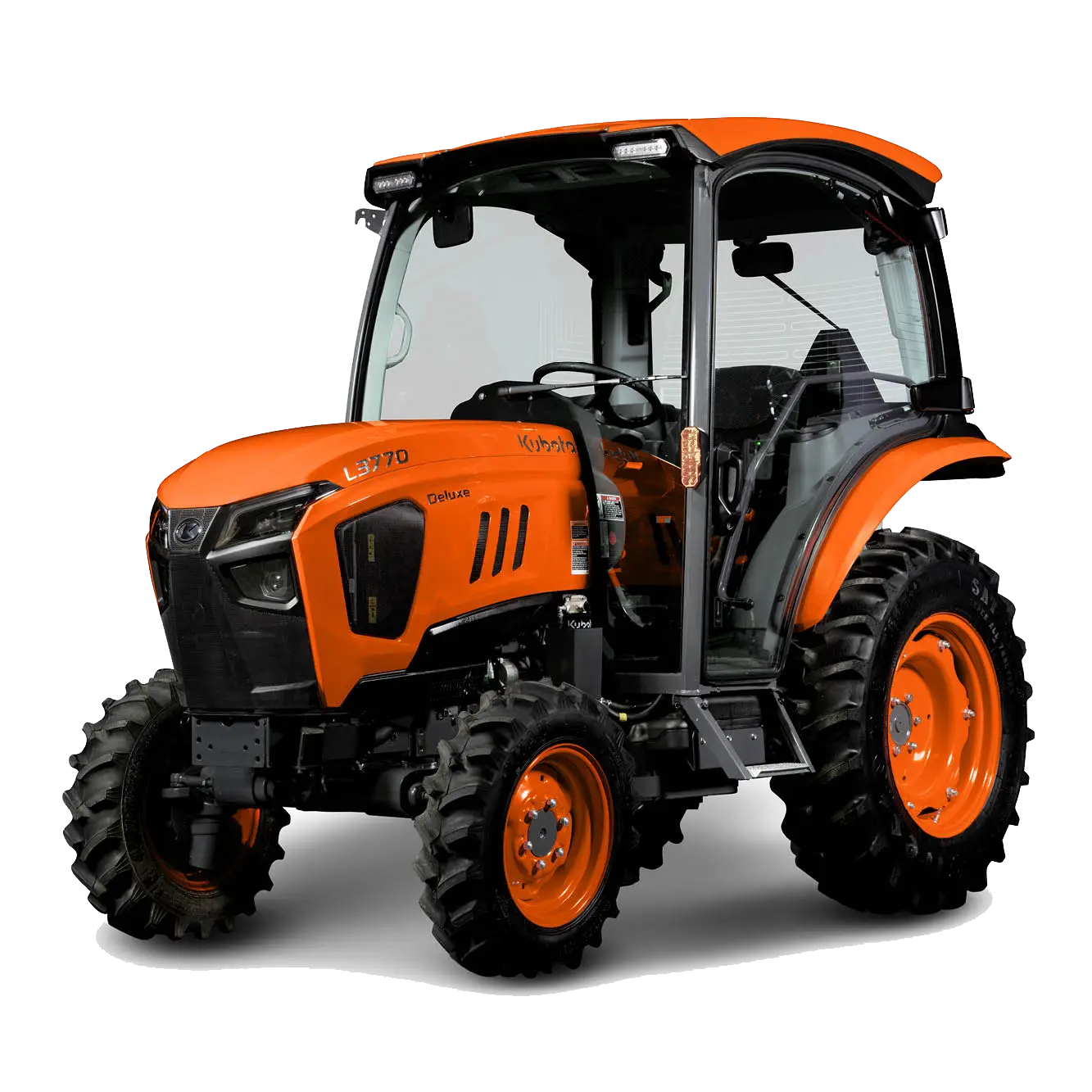

Kubota L6070 Tractor Specs, Features & Buyer Guide

The Kubota L6070 is the top model in the Grand L70 lineup, built for owners who want maximum PTO output, stronger loader capability, and a stable platform for year-round work. With 60 gross horsepower, a turbocharged intercooled 2.4L diesel, and a 3-range hydrostatic (HST) transmission, it’s a great fit for heavy snow removal, material handling, driveway maintenance, and demanding PTO implements.

---

Kubota L6070 Quick Specs

• Series / Class: Grand L70 (L70 Series), Compact Utility
• Model years: 2026–
• Original price (listed): $52,200 (2026)
• Engine (gross): 60 hp (44.7 kW)
• PTO (claimed): 53 hp (39.5 kW)
• Drive / Steering / Brakes: 4WD, power steering, wet disc brakes
• ROPS / Cab: Folding ROPS; cab optional with A/C
• Transmission: Hydrostatic, infinite F/R (3-range)
• Hydraulic pump flow: 9.83 gpm (37.2 lpm)
• 3-pt hitch: Rear Type II/I; lift 3,858 lb (ends)

---

Engine Details

The L6070 uses the Kubota V2403 — a 4-cylinder, liquid-cooled, turbocharged intercooled diesel with common-rail direct injection. It’s designed to hold power under sustained load for PTO work and repeated loader cycles.

Engine specs

• Engine model: Kubota V2403
• Displacement: 148.5 cu in (2.4 L)
• Rated speed: 2300 rpm
• Torque: 180.7 lb-ft (245.0 Nm)

---

Transmission & Drivetrain

The 3-range HST provides infinite forward and reverse speed control—ideal for loader work, snow clearing, and precision manoeuvring around buildings.

• Type: Hydrostatic (HST)
• Ranges: Infinite F/R (3-range)

---

Hydraulics & 3-Point Hitch

With 9.83 gpm hydraulic flow and a Type II/I rear hitch, the L6070 is set up for heavier implement work and ballast setups—especially useful when running a loader.

• Pump flow: 9.83 gpm (37.2 lpm)
• Rear valves: up to 3 (optional)
• Lift capacity (ends): 3,858 lb (1749 kg)
• Lift @ 24” behind: 2,976 lb (1349 kg)

---

PTO

• Rear PTO: Independent
• Type: 540 rpm (1.375”)
• Engine rpm for 540: 540 @ 2258 rpm

---

Dimensions, Weight & Tires

These “fit and haul” specs help users plan storage, trailer capacity, and stability.

• Wheelbase: 81.3 in (206 cm)
• Length: 133.9 in (340 cm)
• Width: 67.3 in (170 cm)
• Height: 98 in (ROPS) / 93.3 in (cab)
• Ground clearance: 15.4 in (39 cm)
• Weight: 4,387 lb (ROPS) / 4,762 lb (cab)
• Standard (Ag) tires: Front 9.5-16 / Rear 14.9-26
• Tread width: Front 52.2 in; Rear 52.2–56.3 in

---

Compatible Attachments (popular combos)

Front-End Loader: LM1056

• Lift (full height at pin): 2,471 lb (1120 kg)
• Lift (1.5 m at pin): 3,025 lb (1372 kg)
• Breakout (at pin): 4,061 lb (1842 kg)
• Reach at ground: 82.5 in (209 cm)
• Rollback: 45.2°
• Max height at pin: 117 in (297 cm)

Backhoe: BH92A

• Transport height: 102.4 in (260 cm)
• 2-ft flat digging depth: 104.6 in (265 cm)
• Reach from pivot: 150 in (381 cm)
• Loading height: 88.5 in (224 cm)
• Bucket rotation: 180°

---

Kubota L6070 FAQ

How much horsepower does the Kubota L6070 have?

It’s rated at 60 gross horsepower with 53 claimed PTO horsepower.

What transmission does the L6070 use?

A 3-range hydrostatic (HST) with infinite forward and reverse speeds.

What is the 3-point hitch lift capacity?

Listed lift is 3,858 lb at the ends and 2,976 lb at 24 inches behind.

Which loader is commonly paired with the L6070?

The LM1056 loader is listed, with 2,471 lb lift at full height (pin).
