JCB 520-40 Compact Telehandler

Introduction

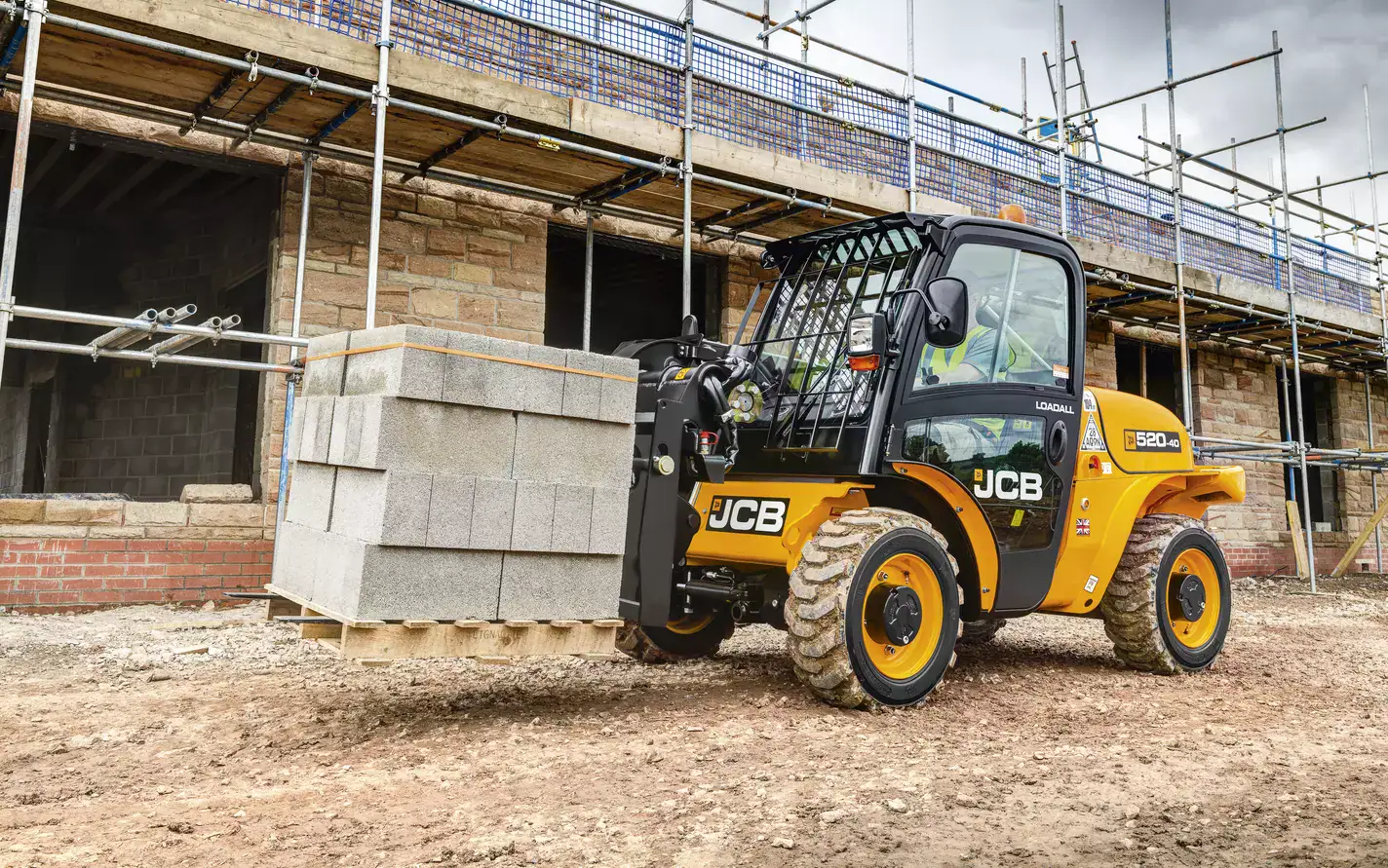

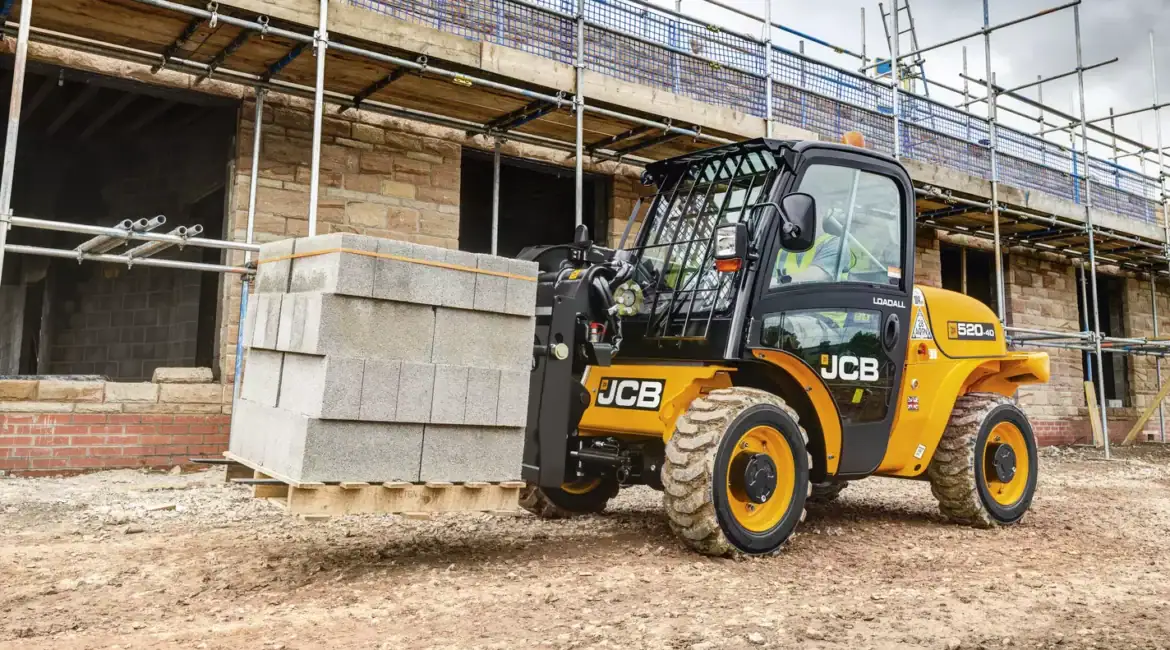

The JCB 520-40 is the highest-capacity machine in JCB’s 4-metre compact Loadall range — lifting a full 2 tonnes while keeping the tight dimensions that let the compact range work in confined farm spaces. It’s the machine for operations that need more lift than the 514-40 or 516-40 but still work in narrow yards, low barns, and livestock buildings. With 2-tonne capacity, a 4-metre height, and 4WD, it bridges the gap between the smallest Loadalls and the taller 6-metre compact machines, offering the most muscle available in the sub-6-metre compact class. For prairie operations needing capable, compact handling, it’s a versatile choice from the telehandler’s inventor.

On Aglist, the value is in understanding where the 520-40 fits in the agricultural telehandler market, with real owner and operator feedback beside the spec sheet. The numbers tell you what it lifts; the reviews tell you how it handles, how the controls feel, and how it holds up. It sits at the top of JCB’s 4-metre compact range.

As with any telehandler, the load chart is the most important thing to understand — how much the machine lifts at a given height and reach. We explain that below.

Configurations & Pricing Context

The 520-40 is part of JCB’s compact Loadall range, in the 2-tonne class with a 4-metre lift height — the highest capacity in the 4-metre compact group. It’s a ROPS/FOPS-certified machine with 4WD, twin-lever joystick control, and JCB’s Q-fit carriage for pallet forks, buckets, and other attachments.

The 520-40 runs pallet forks, bale spikes, buckets, and other attachments via single or double auxiliary services. Its combination of 2-tonne capacity and compact dimensions suits tight-access farm work that needs more lift than the smaller compact machines.

Pricing varies by configuration, attachments, and dealer. Because Dmytro has direct knowledge of Saskatchewan dealer and used pricing, we defer to local market figures over manufacturer-advertised numbers.

Key Specifications

Specification	JCB 520-40
Machine class	Compact telehandler
Maximum lift capacity	2.0 tonne (~4,409 lb)
Maximum lift height	4.0 m (~13 ft 1 in)
Engine	Perkins 403J-17 diesel
Engine power	~18.4 kW (~25 hp)
Displacement	1.7 L, 3-cylinder
Hydraulic flow	~40 L/min
Drive	4WD
Joystick	Twin lever
Carriage	JCB Q-fit
Certification	ROPS / FOPS

Specifications are verified against JCB specification data and independent spec databases. Confirm exact figures for the specific machine, year, and configuration with your dealer, and always consult the load chart for capacity at a given height and reach.

Understanding the Load Chart (Read This First)

On any telehandler, the load chart is the most important spec to understand — and on the 520-40, it’s what makes the machine’s 2-tonne capacity meaningful.

The 520-40’s headline figures are a 2-tonne maximum capacity and a 4-metre maximum lift height — but those don’t happen simultaneously. The load chart shows how much the machine lifts safely at every combination of height and forward reach, and capacity drops as the boom extends up and out. The full 2 tonnes is available at low height and close reach; at maximum height or reach, safe capacity is lower.

For the 520-40, the higher capacity gives it more useful lift across its working envelope than the smaller compact machines — meaning at a given height and reach, it can typically handle heavier loads than the 514-40 or 516-40. Still, match your real tasks to the chart: stacking, loading, feeding — check what it lifts at that specific height and reach. As the top of the 4-metre compact range, the 520-40 offers the most compact-class lift while keeping tight dimensions.

Build & Engineering Detail

The 520-40 takes the compact range’s design — telehandler capability in a tight package — and maximizes capacity within the 4-metre class. Its Perkins 1.7-litre three-cylinder diesel and hydraulic flow support the 2-tonne lifting and attachment work, with twin-lever joystick control and 4WD for traction on prairie ground.

The Q-fit carriage accepts JCB’s attachments, single and double auxiliary services run hydraulic tools, and the high-tensile-steel boom with low-maintenance wear pads is built for durability. ROPS and FOPS certification protects the operator, and the compact cab prioritizes visibility.

Like the rest of the compact range, the 520-40’s dimensions let it work in narrow aisles, gates, and low buildings — but with the highest lift capacity in the 4-metre group, it suits operations that need to handle heavier loads in those confined spaces.

Best Applications

The 520-40 is a strong fit for:

• Heavier confined-space handling — the 2-tonne capacity handles heavier bales, feed, and loads in tight spaces.
• Livestock and yard work — narrow aisles and low buildings, with more lift than the smaller compacts.
• Mixed farm handling — a versatile compact machine for operations needing capability and access.
• Buyers wanting maximum compact-class lift — the top of the 4-metre range.

It is a compact machine, capped at a 4-metre lift height. For higher stacking, step up to the 525-60 Hi-Viz (6-metre) or a full-size Loadall. Its niche is maximum lift within the compact, low-height class.

How the 520-40 Fits the JCB Loadall Range

The 520-40 is the highest-capacity machine in JCB’s 4-metre compact Loadall range, above the 514-40 and 516-40. Above it, the 525-60 Hi-Viz adds a taller 6-metre lift, and the full-size AGRI Loadalls step up to serious capability and reach. It’s the choice for buyers who need the most lift available in a compact, low-height Loadall. Explore the full range on the JCB brand hub.

JCB 520-40 Reviews & Ratings

On Aglist, open the Reviews & Ratings section on this page to see how the 520-40 performs where it matters: lifting capacity for its size, access and maneuverability, visibility, reliability, and ease of use. If you own a 520-40, your review helps the next prairie buyer judge this compact Loadall.

Frequently Asked Questions

How much can the JCB 520-40 lift? Maximum lift capacity is 2 tonnes (about 4,409 lb) to a maximum height of 4 metres (about 13 feet) — the highest capacity in JCB’s 4-metre compact range. Full capacity is at low height and close reach; capacity decreases as the boom extends, so consult the load chart.

What’s the difference between the JCB 520-40 and the 516-40? The 520-40 lifts more (2 tonnes vs 1.6) while sharing the same 4-metre height and compact dimensions. It’s the top-capacity machine in the 4-metre compact range, for operations needing to handle heavier loads in tight spaces.

What engine does the JCB 520-40 have? A Perkins 403J-17 diesel — a 1.7-litre three-cylinder engine of about 25 horsepower, the same engine as the 516-40, driving the higher-capacity 520-40.

Can the JCB 520-40 work in low buildings? Yes — it shares the compact range’s tight dimensions, suiting narrow aisles, low barns, and livestock buildings, while offering the most lift in the 4-metre compact class.

What attachments does the JCB 520-40 use? It uses JCB’s Q-fit carriage, accepting pallet forks, bale spikes, buckets, and other attachments, with single or double auxiliary services for hydraulic tools.

Is the JCB 520-40 4WD? Yes — 4WD is standard for traction on muddy or uneven prairie ground, with twin-lever joystick control.

Should I choose the 520-40 or the 525-60 Hi-Viz? The 525-60 Hi-Viz offers a taller 6-metre lift, more capacity (2.5 tonnes), a full-size cab, and a more powerful engine. If you need to stack higher and lift more, it’s the step up; if a 4-metre height and 2-tonne capacity suit your confined-space work, the 520-40 is more compact and simpler.
