JCB 546-70 Telehandler

Introduction

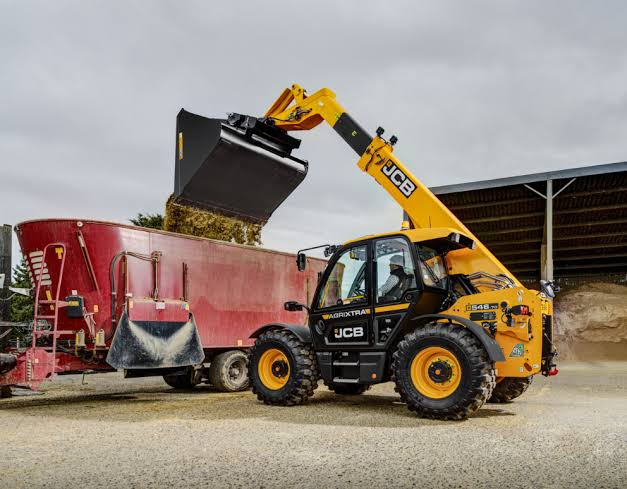

The JCB 546-70 is one of two new Loadall telehandlers JCB launched in late 2025, and it answers a question prairie farmers have been asking: more lifting capacity without a bigger machine. It lifts 4.6 tonnes to a 7-metre (23-foot) height — an 8.7% capacity increase over the outgoing 542-70 — while keeping exactly the same overall machine size, so it remains just as agile inside barns and around tight yards. Add greater tear-out force for pushing into silage clamps, muck heaps, and grain piles, a choice of three power packages up to 173 horsepower, and JCB’s new IntelliAssist and IntelliWeigh systems, and the 546-70 becomes the sensible all-rounder for mixed, livestock, and dairy operations. For farms whose daily work is feeding, mucking, bedding, and general handling, it hits the balance point of JCB’s agricultural range.

On Aglist, the value is in understanding where the 546-70 fits in the agricultural telehandler market, with real owner and operator feedback beside the spec sheet. The numbers tell you what it lifts; the reviews tell you how it performs day to day, how the new operator-assist systems work in practice, and how it holds up. It’s a new machine, available in AGRI Super, AGRI Xtra, and top-spec AGRI Pro.

As with any telehandler, the load chart is the most important thing to understand — how much the machine lifts at a given height and reach. We explain that below.

Configurations & Pricing Context

The 546-70 is a new full-size machine in JCB’s agricultural Loadall range, in the 4.6-tonne class with a 7-metre lift height. It’s available in three specifications: AGRI Super (97 kW / 130 hp), AGRI Xtra (112 kW / 150 hp), and top-spec AGRI Pro (129 kW / 173 hp). All versions come with 160 litre/min load-sensing Smart Hydraulics and DualTech VT transmission — JCB’s award-winning 2-in-1 hydrostatic-and-powershift system with seamless automatic transitions.

AGRI Pro versions add the 50 km/h High Speed DualTech VT for faster travel between yards and fields, plus automatic four-wheel-drive engagement under braking for shorter stopping distances. Options across the range include Sway Control (a hydraulic levelling system for cross-slopes, on AGRI Xtra and AGRI Pro), IntelliAssist (automated boom and attachment controls, including programmable return-to-dig and return-to-load), IntelliWeigh (integrated real-time load weighing, no calibration required, reporting via LiveLink), and air trailer braking.

Pricing varies by configuration, attachments, and dealer. Because Dmytro has direct knowledge of Saskatchewan dealer and used pricing, we defer to local market figures over manufacturer-advertised numbers.

Key Specifications

Specification	JCB 546-70
Machine class	Full-size agricultural telehandler
Maximum lift capacity	4.6 tonne (~10,141 lb)
Maximum lift height	7.0 m (~23 ft)
Engine	JCB DieselMAX
Engine power (AGRI Super)	97 kW (130 hp)
Engine power (AGRI Xtra)	112 kW (150 hp)
Engine power (AGRI Pro)	129 kW (173 hp)
Transmission	DualTech VT (50 km/h on AGRI Pro)
Hydraulics	160 L/min load-sensing Smart Hydraulics
Cab	CommandPlus (69 dBA)
Levelling	Sway Control (optional, AGRI Xtra/Pro)
Load weighing	IntelliWeigh (optional)
Telematics	LiveLink (standard)

Specifications are verified against JCB specification data and manufacturer announcements. Confirm exact figures for the specific machine, year, and configuration with your dealer, and always consult the load chart for capacity at a given height and reach.

Understanding the Load Chart (Read This First)

On any telehandler, the load chart is the most important spec to understand — and on the 546-70, it’s central to the machine’s whole design story.

The 546-70’s headline figures are a 4.6-tonne maximum capacity and a 7-metre lift height — but those don’t happen at the same time. The load chart shows how much the machine lifts safely at every combination of height and forward reach, and capacity drops as the boom extends up and out, because the load moves farther from the machine’s center of gravity. The full 4.6 tonnes is available at low height and close reach; at the full 7-metre height, or reaching well forward, safe capacity is lower.

What makes the 546-70 notable is where JCB added the capacity. Repositioned compensation rams forward of the main boom pivot, twin underslung rams, and a larger lift ram together increase lifting power and tear-out force across the range of the load chart — not just at the headline maximum. In practice, that means the 546-70 pushes deeper into a silage clamp, muck heap, or grain pile, and lifts more when it gets there, compared to the 542-70 it steps above. As always, check the chart for capacity at your specific working height and reach, rather than relying on the 4.6-tonne maximum.

Build & Engineering Detail

The 546-70’s central engineering achievement is delivering more capability in the same package. JCB increased maximum lift by 400 kg (8.7%) over the 542-70 with no increase in overall machine size — preserving the easy, confident maneuverability that matters inside buildings and around tight prairie yards. The boom redesign (repositioned compensation rams, twin underslung rams, a larger lift ram) raises both lifting power and tear-out/break-out force.

Three power packages let buyers match the machine to their work: AGRI Super (130 hp) for general handling, AGRI Xtra (150 hp) for heavier duty, and AGRI Pro (173 hp) for maximum performance. All run 160 litre/min load-sensing Smart Hydraulics — regenerative circuit, auto SmoothRide, boom-end damping — and DualTech VT, JCB’s award-winning transmission combining hydrostatic control at low speed with powershift efficiency at road speed, transitioning automatically.

The new operator-assist systems are the other headline. IntelliAssist automates boom and attachment functions, letting operators program movements like return-to-dig and return-to-load — reducing repetitive workload during long loading sessions. IntelliWeigh integrates real-time load weighing based on hydraulic pressure and boom angle: accurate loading straight from the cab, no calibration required, with load data tracked through LiveLink for record-keeping. Sway Control(AGRI Xtra and AGRI Pro) uses a double-acting hydraulic cylinder between chassis and front axle to keep the machine vertical on cross-slopes — valuable on uneven prairie ground when the boom is raised and extended.

Best Applications

The 546-70 is a strong fit for:

• Everyday mixed, livestock, and dairy farm work — feeding, mucking, bedding, and general handling, where JCB positions it as the sensible balance.
• Pushing into silage clamps, muck heaps, and grain piles — greater tear-out force pushes deeper and lifts more.
• Operations wanting more capacity without a bigger machine — 8.7% more lift, same footprint, same agility in buildings.
• Farms valuing operator-assist technology — IntelliAssist and IntelliWeigh reduce workload and improve loading accuracy.

For even more capacity, the new 555-70 (5.5 tonnes) steps up; for lower cost, the 542-70 or 538-70 fit. The 546-70’s niche is a capable all-rounder with meaningfully more lift than the 542-70 in an identically sized, agile package.

How the 546-70 Fits the JCB Loadall Range

The 546-70 is a new model (launched late 2025) that sits above the 542-70 in JCB’s full-size agricultural Loadall range, offering 8.7% more lift capacity in the same overall machine size. Alongside it, the new 555-70 goes further (5.5 tonnes, with a new N-shaped boom), while the high-lift 536-95 and heavy-lift 560-80 serve specialist roles. JCB positions the 546-70 as the middle of its agricultural telehandler offering — the versatile, hard-working machine for everyday yard, field, and livestock duties. Explore the full range on the JCB brand hub.

JCB 546-70 Reviews & Ratings

On Aglist, open the Reviews & Ratings section on this page to see how the 546-70 performs where it matters: lifting capacity and tear-out force in real work, how IntelliAssist and IntelliWeigh perform day to day, the DualTech VT transmission, cab comfort, maneuverability in buildings, and reliability. As a newer machine, owner feedback is especially valuable — if you own a 546-70, your review helps the next prairie buyer.

Frequently Asked Questions

How much can the JCB 546-70 lift? Maximum lift capacity is 4.6 tonnes (about 10,141 lb) to a maximum height of 7 metres (about 23 feet) — an 8.7% (400 kg) increase over the 542-70. Full capacity is available at low height and close reach; capacity decreases as the boom extends, so consult the load chart for your specific tasks.

What’s new about the JCB 546-70? Launched in late 2025, it delivers 8.7% more lift capacity than the 542-70 and greater tear-out force — with no increase in machine size, preserving maneuverability in buildings. It also introduces JCB’s new IntelliAssist (automated boom controls) and IntelliWeigh (real-time load weighing) systems, plus optional Sway Control.

What is IntelliWeigh? JCB’s integrated real-time load weighing system, based on hydraulic pressure and boom angle. It allows accurate loading straight from the cab with no calibration required, and tracks load data through LiveLink telematics for record-keeping — useful for loading trailers and trucks to exact weights.

What is IntelliAssist? A suite of automated boom and attachment controls that lets operators program repetitive movements — such as return-to-dig and return-to-load — reducing workload during long loading sessions and improving consistency.

What power options does the JCB 546-70 have? Three: AGRI Super with 97 kW (130 hp), AGRI Xtra with 112 kW (150 hp), and top-spec AGRI Pro with 129 kW (173 hp). All come with 160 litre/min Smart Hydraulics and DualTech VT transmission; the AGRI Pro adds a 50 km/h top speed.

What is Sway Control on the JCB 546-70? An optional hydraulic levelling system (on AGRI Xtra and AGRI Pro) that uses a double-acting cylinder between the chassis and front axle to keep the machine vertical on cross-slopes and uneven ground — improving stability when the boom is raised and extended. Operators activate it from the CommandPlus cab.

Should I choose the JCB 546-70 or the 555-70? The 555-70 lifts more (5.5 tonnes vs 4.6) with a new N-shaped boom and uprated axles, suited to bulk handling — large square bales, biomass, big tonnages of grain and muck. The 546-70 is the all-rounder for everyday feeding, mucking, bedding, and general handling. Choose the 555-70 if you regularly handle heavy bulk loads; the 546-70 if you want a versatile, capable everyday machine.

Is the JCB 546-70 bigger than the 542-70? No — that’s the point. JCB increased its lift capacity by 8.7% with no increase in overall machine size, so it’s just as agile within and around buildings as the 7-metre machines it joins. You get more capability without giving up maneuverability.
