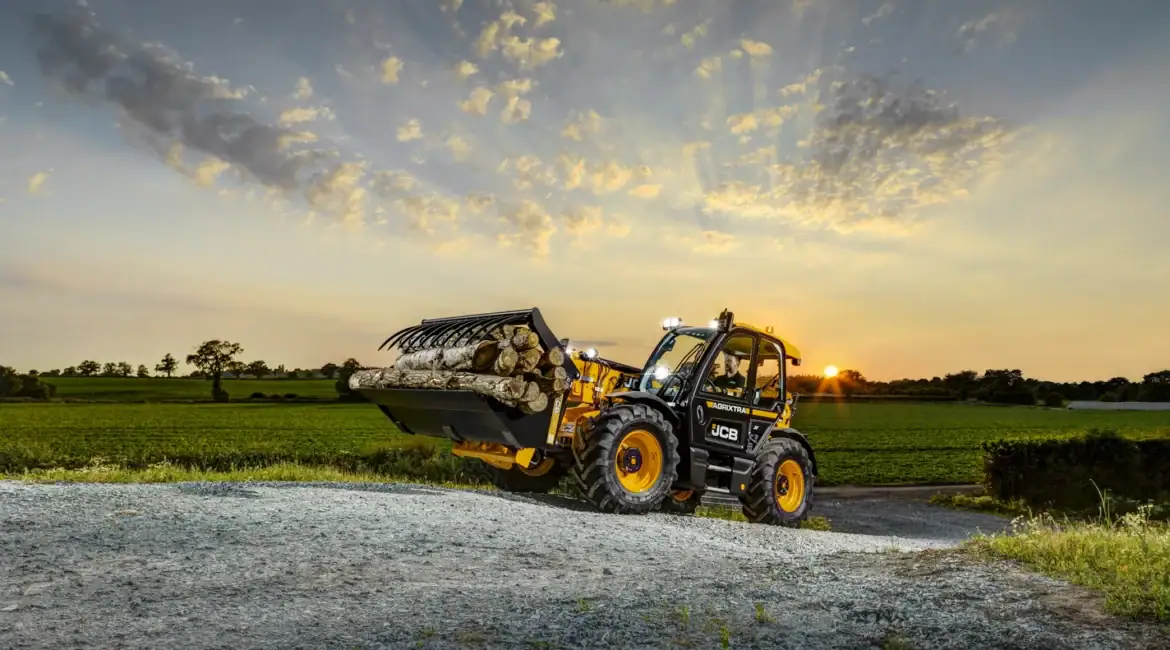

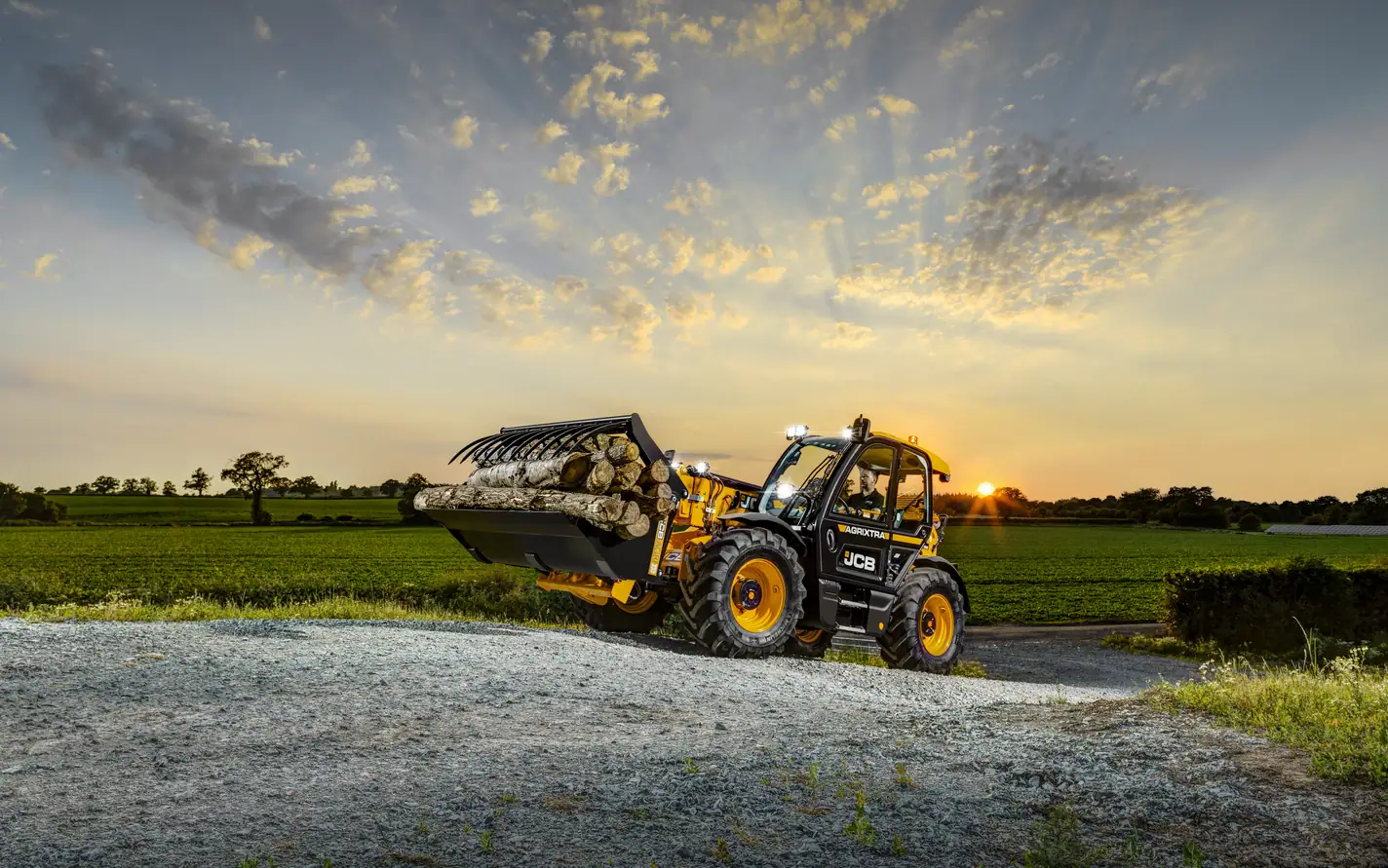

JCB 536-95 Telehandler

Introduction

The JCB 536-95 is the high-lift specialist of the Loadall range — a full-size agricultural telehandler with a 9.5-metre (31-foot) reach that stacks bales, fills tall bins, and places loads far higher than any standard 6- or 7-metre machine can manage. Long a favourite for bale handling, it pairs that exceptional reach with a 3.6-tonne lift capacity, the CommandPlus cab, and JCB’s Sway axle-levelling system, which keeps the machine stable on uneven prairie ground when the boom is raised and extended. For operations where stack height is the limiting factor — maximizing straw and hay storage, working tall buildings, reaching over obstacles — the 536-95 is the Loadall built for the job, from the brand that invented the telescopic handler.

On Aglist, the value is in understanding where the 536-95 fits in the agricultural telehandler market, with real owner and operator feedback beside the spec sheet. The numbers tell you how high it reaches; the reviews tell you how stable and controllable it feels at full extension, how the cab visibility works when looking up, and how it holds up. It’s the high-lift machine in JCB’s Series III AGRI range.

As with any telehandler — and especially a high-lift one — the load chart is the most important thing to understand. We explain that below.

Configurations & Pricing Context

The 536-95 is the high-lift machine in JCB’s Series III AGRI Loadall range, in the 3.6-tonne class with a 9.5-metre lift height. It’s built around the CommandPlus cab with single-lever servo joystick control, all-wheel steering with three modes, and JCB’s Q-fit self-levelling carriage, powered by a DieselMAX engine with Smart Hydraulics. Along with the 542-70, it’s one of the models offered with JCB’s Sway system — electro-hydraulic front-axle-to-chassis levelling — which is especially valuable given its reach.

The 536-95 runs the full range of agricultural attachments via its hydraulics, with hydraulic auxiliary venting for quick changes. Its reach suits operations maximizing stack height and working tall structures.

Pricing varies by configuration, attachments, and dealer. Because Dmytro has direct knowledge of Saskatchewan dealer and used pricing, we defer to local market figures over manufacturer-advertised numbers.

Key Specifications

Specification	JCB 536-95
Machine class	High-lift agricultural telehandler
Maximum lift capacity	3.6 tonne (~7,935 lb)
Maximum lift height	9.49 m (~31 ft)
Engine	JCB DieselMAX / EcoMAX
Engine power	~109–145 hp depending on spec
Transmission	Powershift / DualTech VT (spec dependent)
Top speed	~40 km/h
Steering	All-wheel steer, three modes
Carriage	JCB Q-fit self-levelling
Cab	CommandPlus (69 dBA)
Levelling	Sway (front axle to chassis)
Hydraulics	JCB Smart Hydraulics (regenerative)

Specifications are verified against JCB specification data and independent spec databases. Confirm exact figures for the specific machine, year, and configuration with your dealer, and always consult the load chart for capacity at a given height and reach.

Understanding the Load Chart (Read This First)

On any telehandler the load chart matters — on a high-lift machine like the 536-95, it’s essential, because the whole point of the machine is working at extension.

The 536-95’s headline figures are a 3.6-tonne maximum capacity and a 9.49-metre lift height — and these emphatically do not happen at the same time. The load chart shows how much the machine lifts safely at every combination of height and forward reach, and capacity drops significantly as the boom extends up and out, because the load moves far from the machine’s center of gravity. The full 3.6 tonnes is available at low height and close reach; at the full 9.5-metre extension, safe capacity is a fraction of that.

This is the fundamental trade-off of a high-lift machine, and understanding it is what separates a good purchase from a frustrating one. Buy the 536-95 for reach, not for maximum capacity. If your bales weigh a given amount and you need them stacked at 8 or 9 metres, check the load chart at that exact height — that number, not the 3.6-tonne maximum, is what determines whether the machine does your job. Conversely, if you rarely stack above 6 or 7 metres but often lift heavy, a machine like the 538-70 or 546-70 will serve you better with far more capacity at working height. Match the chart to how you actually work.

Build & Engineering Detail

The 536-95’s engineering is oriented around one goal: exceptional reach with control and stability. Its long boom takes loads to 9.49 metres — roughly 31 feet — far beyond standard full-size machines, making it a long-standing favourite for bale handling where stack height determines storage capacity.

Reaching that high demands stability, which is why the 536-95 is one of the models fitted with JCB’s Sway system: an electro-hydraulically controlled front-axle-to-chassis levelling system, operated from the cab, that keeps the machine vertical on cross-slopes and uneven ground. When the boom is raised and extended, a machine that isn’t level is a machine that’s less safe — Sway addresses that directly, which is why JCB fits it here and on the 542-70.

The DieselMAX/EcoMAX engine (part of JCB’s fully in-house drivetrain) powers a Powershift or DualTech VT transmission with a 40 km/h top speed. Smart Hydraulics brings regenerative boom lowering (particularly valuable on a long boom, where cycles take time), boom-end damping for load retention at height, and auto bucket control. The CommandPlus cab’s improved upward visibility through one-piece curved glazing matters more here than on any other Loadall — you spend a lot of time looking up at the load. An eye-level load moment indicator continuously monitors forward stability, essential when working at reach.

Best Applications

The 536-95 is a strong fit for:

• Maximizing bale stack height — its long-standing role, where storage capacity depends on how high you can stack.
• Filling tall bins and structures — reaching where standard machines can’t.
• Working over obstacles — placing loads beyond walls, machinery, or trailers.
• Operations where reach is the limiting factor — the high-lift specialist.

It trades capacity for reach: at full height, capacity is much lower than the headline 3.6 tonnes. If you need heavy lifting at moderate height, the 538-70, 546-70, or 555-70 offer far more capacity in the working range. The 536-95’s niche is reach — buy it for how high you need to go.

How the 536-95 Fits the JCB Loadall Range

The 536-95 is the high-lift specialist in JCB’s Series III AGRI Loadall range, reaching 9.49 metres — far beyond the 6- and 7-metre standard machines. It sits apart from the capacity-focused machines: where the 555-70 and 560-80 maximize lift, the 536-95 maximizes height. Alongside the flagship 542-70, it’s one of the models fitted with JCB’s Sway axle-levelling system, reflecting the stability demands of working at reach. It’s the choice for operations where stack height, not lifting weight, is the constraint. Explore the full range on the JCB brand hub.

JCB 536-95 Reviews & Ratings

On Aglist, open the Reviews & Ratings section on this page to see how the 536-95 performs where it matters for a high-lift machine: stability and control at full extension, real capacity at working height, how the Sway system performs on uneven ground, upward visibility from the cab, boom cycle times, and reliability. If you own a 536-95, your review helps the next prairie buyer judge this high-lift Loadall.

Frequently Asked Questions

How high can the JCB 536-95 lift? Maximum lift height is 9.49 metres (about 31 feet) — far beyond standard 6- and 7-metre Loadalls, making it JCB’s high-lift agricultural specialist. Its maximum lift capacity is 3.6 tonnes, but that full capacity is only available at low height and close reach; at full extension, capacity is significantly lower. Always consult the load chart.

How much can the JCB 536-95 lift at full height? Considerably less than its 3.6-tonne maximum. On a high-lift machine, capacity drops sharply as the boom extends to full reach, because the load moves far from the machine’s center of gravity. Check the specific load chart for the capacity at your target stacking height — this is the number that determines whether the machine suits your job.

Is the JCB 536-95 good for stacking bales? Yes — it’s long been a favourite for bale handling, precisely because its 9.5-metre reach lets you stack higher than standard machines, maximizing straw and hay storage in a given footprint. Confirm the load chart shows adequate capacity for your bale weight at your target stack height.

What is the Sway system on the JCB 536-95? An electro-hydraulically controlled front-axle-to-chassis levelling system, operated from the CommandPlus cab, that keeps the machine vertical on cross-slopes and uneven ground. It’s fitted on the 536-95 (and the 542-70) because stability matters most when the boom is raised and extended — a level machine at 9 metres is a safer machine.

Should I buy the 536-95 or a higher-capacity machine? Buy the 536-95 if reach is your constraint — if you need to stack or place loads at 8 to 9.5 metres. If you need to lift heavy at moderate height, machines like the 538-70, 546-70, or 555-70 offer far more capacity in the working range. Match the load chart to the height and weight you actually work with.

What engine does the JCB 536-95 have? A JCB DieselMAX/EcoMAX engine, in the region of 109–145 horsepower depending on specification, part of JCB’s fully in-house drivetrain, with a Powershift or DualTech VT transmission and a 40 km/h top speed.

How does the 536-95 compare to the 542-70? The 542-70 is the flagship general-purpose machine (4.2-tonne capacity, 7-metre height) with far more capacity in the working range and, in AGRI Pro form, much more power. The 536-95 trades capacity for a much taller 9.5-metre reach. Both are fitted with Sway. Choose the 536-95 for height, the 542-70 for capacity and power.
