JCB 514-40 Compact Telehandler

On This Page

Introduction

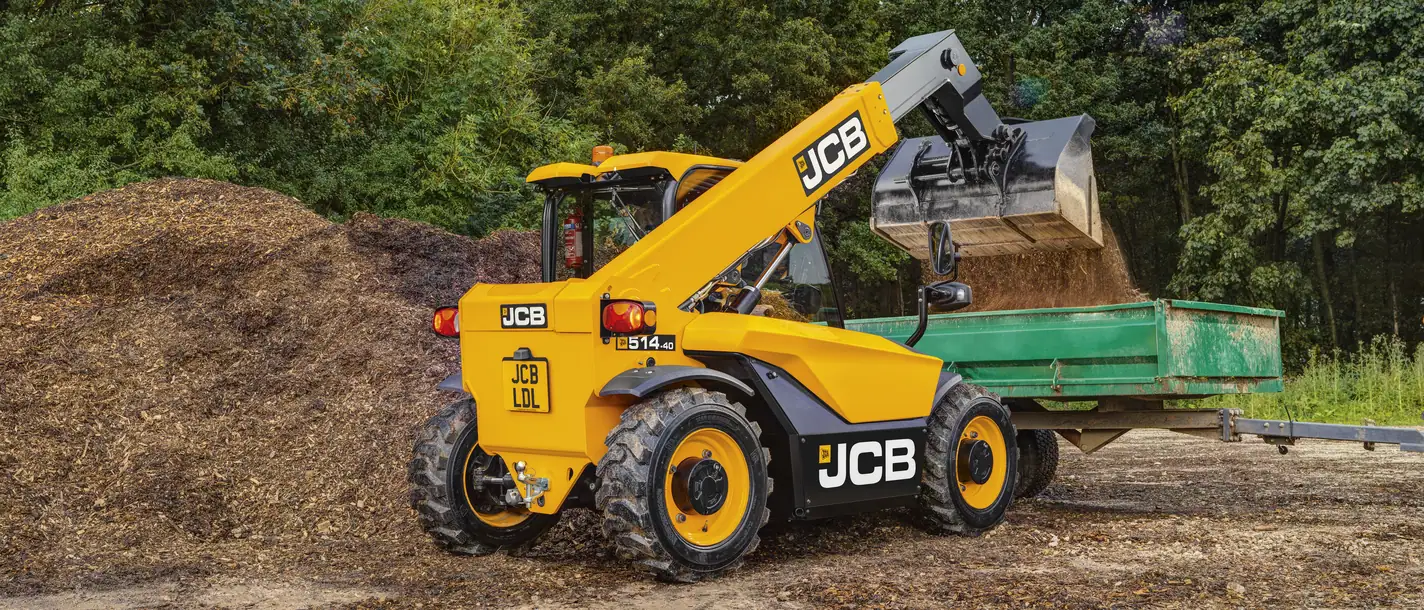

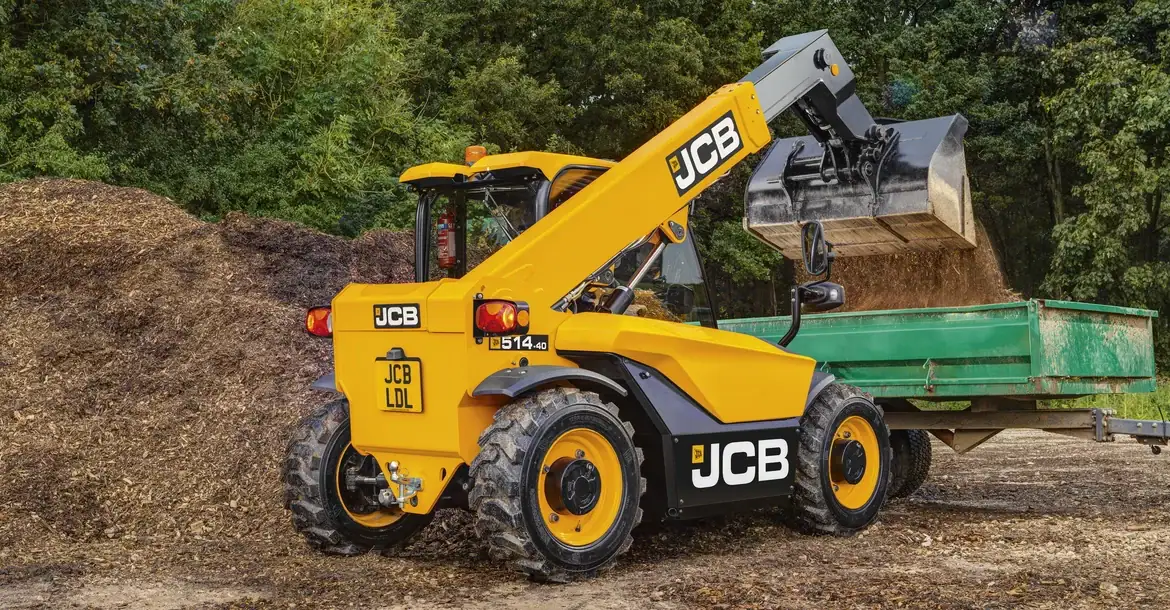

The JCB 514-40 is the smallest telehandler JCB builds — an ultra-compact Loadall designed to bring telescopic-handler capability into spaces where nothing bigger fits. Measuring under 6 feet wide and about 6 feet tall, it slips through a standard 6-foot gap, down narrow livestock aisles, and into low-ceilinged barns, poultry sheds, and older farm buildings. Yet it still lifts 1.4 tonnes to a 4-metre (13-foot) height, handling bales, feed, bedding, and yard work that would otherwise need a bigger, less maneuverable machine. For prairie operations with tight yards, low buildings, or livestock sheds, the 514-40 is the Loadall that goes where others can’t — from the brand that invented the telescopic handler.

On Aglist, the value is in understanding where the 514-40 fits in the agricultural telehandler market, with real owner and operator feedback beside the spec sheet. The numbers tell you what it lifts; the reviews tell you how it handles in confined spaces, how the controls feel, and how it holds up. It’s part of JCB’s compact Loadall range, and it competes with other compact telehandlers and skid-steer alternatives for tight-space work.

The most important thing to understand about any telehandler — and especially a compact one — is its load chart. We explain that below, because how much a machine lifts at a given height and reach matters far more than the headline number.

Configurations & Pricing Context

The 514-40 is the entry point of JCB’s compact Loadall range, in the 1.4-tonne class with a 4-metre lift height. It’s a ROPS/FOPS-certified machine with permanent four-wheel steer, 4WD, twin-lever joystick control, and JCB’s Q-fit carriage that accepts pallet forks, buckets, and other attachments. Its Perkins diesel keeps it simple and efficient for a compact machine.

The 514-40 runs pallet forks, bale spikes, buckets, and other attachments via single or double auxiliary services. Its ultra-compact dimensions make it a specialist for tight-access farm work — poultry and pig units, low barns, and confined yards.

Pricing varies by configuration, attachments, and dealer. Because Dmytro has direct knowledge of Saskatchewan dealer and used pricing, we defer to local market figures over manufacturer-advertised numbers.

Key Specifications

Specification	JCB 514-40
Machine class	Compact telehandler
Maximum lift capacity	1.4 tonne (~3,086 lb)
Maximum lift height	4.0 m (~13 ft 1 in)
Engine	Perkins 403J-11 diesel
Engine power	~18.4 kW (~25 hp)
Displacement	1.1 L, 3-cylinder
Hydraulic flow	~23 L/min
Overall width	~1.84 m (~6 ft)
Overall height	~1.80 m (~5 ft 11 in)
Steering	Permanent four-wheel steer
Drive	4WD
Joystick	Twin lever
Carriage	JCB Q-fit

Specifications are verified against JCB specification data and independent spec databases. Confirm exact figures for the specific machine, year, and configuration with your dealer, and always consult the load chart for capacity at a given height and reach.

Understanding the Load Chart (Read This First)

On any telehandler, the load chart is the most important thing to understand — and on a compact machine like the 514-40, it’s what tells you whether the machine suits your real tasks.

The 514-40’s headline figures are a 1.4-tonne maximum capacity and a 4-metre maximum lift height. But those two numbers don’t happen at the same time. The load chart shows how much the machine can safely lift at every combination of boom height and forward reach — and capacity drops as the boom extends up and out, because the load moves farther from the machine’s center of gravity. The full 1.4 tonnes is available at low height and close reach; at maximum height, or reaching well forward, the safe capacity is lower.

For the 514-40, this means: match your actual tasks to the chart. If you’re stacking bales two high inside a barn, or lifting feed onto a raised platform, check what the machine lifts at that specific height and reach — not just the maximum. For a compact machine, this is especially important, because its strength is access and maneuverability, not maximum lift. Understood correctly, the 514-40 is exactly right for confined light-to-medium handling; expecting full-size lift numbers at full height would be a mismatch.

Build & Engineering Detail

The 514-40 is built around a single, simple purpose: telehandler capability in the smallest possible package. Its Perkins 1.1-litre three-cylinder diesel is efficient and easy to service, sized appropriately for a compact machine’s light-to-medium tasks. Permanent four-wheel steer gives it a tight turning circle for maneuvering in confined yards and buildings, and 4WD provides traction on muddy or uneven prairie ground.

Despite its size, the 514-40 carries JCB’s telehandler DNA: the Q-fit carriage accepts the same style of attachments as larger Loadalls, single and double auxiliary services run hydraulic attachments, and the boom is built from high-tensile steel with low-maintenance wear pads. ROPS and FOPS certification means the operator is protected, and the compact cab is designed for visibility in tight work.

At under 6 feet wide and about 6 feet tall, the 514-40’s dimensions are its defining feature — it fits through gaps, gates, and doorways, and works under low ceilings where feeders and drinkers hang, making it ideal for poultry, pig, and other livestock buildings as well as older, tighter farm structures.

Best Applications

The 514-40 is a strong fit for:

Tight-access livestock work — poultry sheds, pig units, and low barns with narrow aisles and low ceilings.
Confined yard handling — moving bales, feed, and bedding where larger machines can’t maneuver.
Older farm buildings — structures with narrow doorways and restricted height.
Operations needing telehandler reach in a tiny footprint — the smallest Loadall for the tightest jobs.

It is a compact, light-duty machine by design. For higher stacking, heavier loads, or more reach, step up within the compact range (516-40, 520-40, 525-60 Hi-Viz) or to a full-size Loadall. But where access is the deciding constraint, the 514-40 does what bigger machines can’t.

How the 514-40 Fits the JCB Loadall Range

The 514-40 is the smallest machine in JCB’s compact Loadall range, below the 516-40, 520-40, and 525-60 Hi-Viz. As the entry point, it’s built for maximum access and maneuverability — the Loadall for the tightest yards and lowest buildings. Above it, the compact range adds capacity and height while staying maneuverable, and the full-size AGRI Loadalls step up to serious lift and reach for larger operations. Explore the full range on the JCB brand hub.

JCB 514-40 Reviews & Ratings

On Aglist, open the Reviews & Ratings section on this page to see how the 514-40 performs where it matters for a compact telehandler: access and maneuverability in tight spaces, lifting performance for its size, visibility, reliability, and ease of use. If you own a 514-40, your review helps the next prairie buyer judge whether this ultra-compact Loadall fits their work.

Frequently Asked Questions

What is the smallest JCB telehandler? The 514-40 is JCB’s smallest telehandler (Loadall). At under 6 feet wide and about 6 feet tall, it fits through a standard 6-foot gap and works in low-ceilinged buildings, while still lifting 1.4 tonnes to a 4-metre height.

How much can the JCB 514-40 lift? Maximum lift capacity is 1.4 tonnes (about 3,086 lb) to a maximum height of 4 metres (about 13 feet). As with any telehandler, the full capacity is available at low height and close reach — capacity decreases as the boom extends up and out, so consult the load chart for your specific tasks.

Can the JCB 514-40 fit inside a poultry or livestock shed? Yes — that’s a primary use case. Its compact dimensions (about 6 feet wide and tall) let it work in poultry sheds, pig units, and low barns with narrow aisles and low ceilings, fitting under raised feeders and drinkers.

What engine does the JCB 514-40 have? A Perkins 403J-11 diesel — a 1.1-litre three-cylinder engine of about 25 horsepower, sized for efficient, simple operation in a compact machine.

Does the JCB 514-40 have four-wheel steer? Yes — it has permanent four-wheel steer for a tight turning circle in confined spaces, plus 4WD as standard for traction on muddy or uneven ground.

What attachments does the JCB 514-40 use? It uses JCB’s Q-fit carriage, accepting pallet forks, bale spikes, buckets, and other attachments, with single or double auxiliary services for hydraulic tools.

Is the JCB 514-40 good for a small prairie farm? For operations with tight yards, low buildings, or livestock sheds, yes — it brings telehandler reach and versatility into spaces where larger machines can’t go. For higher stacking or heavier loads out in the open, a larger compact or full-size Loadall may suit better. Match the load chart to your tasks.

How does the 514-40 compare to a skid steer? A skid steer is more compact and lower-cost but lifts along a fixed arc; the 514-40 adds telescopic reach — extending up and forward to place loads higher and farther, like onto a stack or into a loft — which a skid steer can’t do. For reach and placement in tight spaces, the 514-40 offers capability a skid steer doesn’t.
