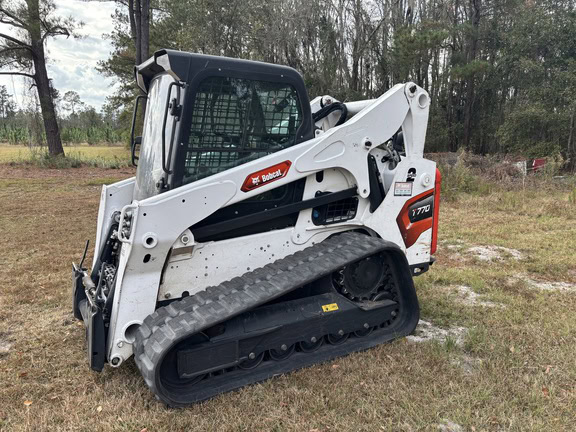

Bobcat T770 Compact Track Loader

Introduction

The Bobcat T770 is the flagship of Bobcat’s Classic compact track loader line — the tracked counterpart to the S770 skid steer, and one of the most capable machines in its class. With 92 horsepower, a vertical-lift boom, and a 3,475 lb rated operating capacity, the T770 moves serious material on ground where a wheeled machine would struggle: soft spring fields, muddy yards, and finished surfaces that wheels would tear up. For prairie operations that need both heavy lifting and flotation, it is the machine at the top of the Classic range.

On Aglist, the value is in deciding the question that matters most at this size — wheels or tracks, T770 or S770 — with real owner and operator reviews beside the spec sheet. The T770 competes head-to-head with the largest Kubota SVL track loaders and the John Deere P-Tier machines. The numbers tell you what it lifts; the reviews tell you how it behaves at the limit, how the undercarriage holds up, and whether the flotation justifies the cost over a wheeled machine.

The standard capacity note applies before any cross-brand comparison: Bobcat rates the T770 at the ISO standard (3,475 lb) and notes a 50%-of-tip figure (4,960 lb); John Deere rates at 35%. Always put numbers on a common basis first. Details below.

Configurations & Pricing Context

The T770 carries forward under Bobcat’s Classic designation following the 2026 ConExpo restructure, when Bobcat retired the M-Series and R-Series names. It kept its model number as the flagship Classic compact track loader.

For Canadian buyers, the practical specification is an enclosed cab with heat and A/C, high-flow hydraulics for snow blowers and mulchers, and attention to track type and undercarriage for the softest ground conditions. The optional automatic ride control improves comfort and reduces bucket spillage on rougher ground.

Pricing runs at the top of the Classic range — this is a large, capable, track-equipped machine, and tracks add cost both up front and over the machine’s life. Because Dmytro has direct knowledge of Saskatchewan dealer and used pricing, we defer to local market figures over manufacturer-advertised numbers.

Key Specifications

Specification	Bobcat T770
Machine type	Compact track loader
Lift path	Vertical
Rated operating capacity (ISO)	3,475 lb (1,576 kg)
Operating capacity (50% of tip)	4,960 lb (2,250 kg)
Tipping load	9,929 lb (4,504 kg)
Engine make/model	Bobcat D34, Tier 4 turbo diesel (non-DPF)
Gross horsepower	92 hp
Auxiliary flow (standard)	23 gpm
Auxiliary flow (high-flow option)	36.6 gpm
System pressure	3,500 psi
Operating weight	~10,515 lb (4,770 kg)
Ground pressure (rubber track)	6.6 psi
Travel speed (single-speed)	6 mph (9.7 km/h)
Travel speed (two-speed option)	9.3 mph (15 km/h)
Height to hinge pin	131.4 in (3,338 mm)
Lift height	~11 ft (vertical)

Specifications are verified against Bobcat specification data and independent spec databases. Confirm exact figures for a specific machine, year, undercarriage, and option package with your dealer.

Understanding the ROC Standard (Read This Before You Compare)

Rated operating capacity is a fixed percentage of a machine’s tipping load, and the standard cited differs by manufacturer. Bobcat publishes the T770 at the ISO standard (3,475 lb) and notes a 50%-of-tip figure (4,960 lb); John Deere rates at 35%.

For cross-shopping: the T770’s ISO and 50% figures sit on the same basis as Kubota’s SVL ratings, so those numbers compare directly. When comparing to a John Deere P-Tier track loader, convert to a common standard first. The machine itself does not change — only the number used to describe it. This is the single most common comparison error in this class.

Build & Engineering Detail

Unlike the mid-frame T650, which uses a Kubota engine, the T770 runs Bobcat’s own D34 — a Tier 4 turbo diesel producing 92 horsepower and meeting emissions standards without a diesel particulate filter. The non-DPF approach removes the regeneration cycle and its downtime, which matters on a machine that works hard across seasons.

The vertical-lift boom gives the T770 maximum reach and height at the top of the cycle — with about 11 feet of vertical lift, it loads high-sided grain trucks and stacks heavy pallets with confidence. This is a serious material-handling machine, and the vertical geometry is the right call for the heavy truck-loading work it is built for.

The undercarriage is what separates it from the wheeled S770. The T770’s tracks distribute its roughly 10,500 lb to a ground pressure of 6.6 psi, letting it work on soft, wet, and finished ground that would stop or rut a wheeled machine. The trade-off is cost: tracks and undercarriage components are more expensive to buy and maintain, and track wear is a real ongoing expense, especially on abrasive surfaces.

On hydraulics, the T770 matches the flagship skid steer: 23 gpm standard, up to 36.6 gpm with the high-flow option. That extra flow runs full-size mulchers, cold planers, and large snow blowers at rated performance — the demanding attachments that define top-tier compact loader work.

As with any track loader, undercarriage maintenance matters: inspect tracks, rollers, idlers, and sprockets regularly, particularly in mud and on abrasive ground. Keep the radiator and intake clear to prevent overheating under load.

Best Applications

The T770 is a strong fit for:

• Heavy material handling on soft ground — loading trucks, moving large volumes of grain, gravel, or feed on spring fields and muddy yards where wheels would sink.
• Serious snow contractors — the combination of 92 hp, 10,500 lb of weight, tracks for traction, and up to 36.6 gpm high-flow makes it a top-tier snow machine.
• Land clearing and forestry-adjacent work — the high-flow circuit runs full-size mulchers and brush cutters with the flotation to work on uneven, soft terrain.
• Finished-surface heavy work — large landscaping and site jobs where minimizing ground disturbance matters at scale.

It is the most expensive machine in the Classic range to buy and own. On hard, dry surfaces, the wheeled S770 is faster and cheaper to run. The T770 earns its premium only where flotation, traction, and ground protection genuinely matter.

How the T770 Fits the Bobcat Lineup

The T770 sits at the top of Bobcat’s Classic compact track loader range, above the T450, T595, and mid-frame T650. It is the direct tracked counterpart to the S770 skid steer — comparable power and capacity, with the undercarriage being the deciding difference.

For most buyers at this size, the real decision is the wheeled S770 versus the tracked T770. They share a capacity class and a 92-horsepower output; they differ in flotation, ground disturbance, road speed, and cost. Read both before choosing.

Bobcat T770 Reviews & Ratings

On Aglist, open the Reviews & Ratings section on this page to see how the T770 performs where it counts: flotation and traction on soft ground, heavy-load stability at full height, high-flow attachment behaviour, undercarriage wear and serviceability, and cab comfort over long shifts. If you own a T770, your review helps the next prairie buyer weigh tracks against wheels at the top of the range.

Frequently Asked Questions

What engine does the Bobcat T770 use? A Bobcat D34 — a Tier 4 turbo diesel producing 92 horsepower and meeting emissions standards without a diesel particulate filter. Note that unlike the mid-frame T650 (which uses a Kubota engine), the flagship T770 runs Bobcat’s own D34.

What is the rated operating capacity of the Bobcat T770? Bobcat publishes 3,475 lb at the ISO standard, with a 50%-of-tip figure of 4,960 lb. Tipping load is 9,929 lb. When comparing to a John Deere machine, convert to a common standard first.

What is the ground pressure of the Bobcat T770? About 6.6 psi on rubber tracks — far lower than a wheeled skid steer despite the machine’s size. That flotation is what lets it work on soft, wet, or finished ground.

How does the T770 compare to the S770 skid steer? They share a 92-horsepower output and a similar capacity class. The T770 rides on tracks (6.6 psi ground pressure) for flotation on soft ground; the S770 rides on wheels for lower cost and faster travel on hard surfaces. The choice comes down to ground conditions and budget.

Does the Bobcat T770 have high-flow hydraulics? Yes. Standard flow is 23 gpm; the high-flow option reaches 36.6 gpm at 3,500 psi — enough to run full-size mulchers, cold planers, and large snow blowers at rated performance.

How much does the Bobcat T770 weigh? Operating weight is approximately 10,515 lb — the heaviest machine in the Classic range. Plan your trailer and tow vehicle accordingly.

Is the Bobcat T770 good for snow removal? It is a top-tier snow machine. The combination of 92 hp, 10,500 lb of weight, tracks for traction, and up to 36.6 gpm high-flow lets it run large pushers and blowers in demanding conditions. Match the attachment to the machine’s actual gpm.

How does the T770 compare to a Kubota SVL? Both are large compact track loaders rated on the same ISO/50% basis, so their numbers compare directly. The decision often comes down to dealer support, cab preference, and price. See the Kubota SVL lineup comparison on Aglist for the full Kubota side.

What maintenance does the T770 undercarriage need? Inspect tracks, rollers, idlers, and sprockets regularly — especially in mud and on abrasive surfaces, where wear accelerates. Keep the radiator and intake clear of debris. Undercarriage wear is the main ongoing cost difference versus a wheeled machine.

What’s the difference between the T770 Classic and the new Pro models? At ConExpo 2026, Bobcat split its line into Classic and Pro. The T770 is a Classic machine — proven controls and durability at competitive pricing. The new Pro compact track loaders (T64-2 through T86-2) add advanced cab technology, drive modes, and an optional in-cab voice-command system; their full specifications are still being released.

Related Models

• Bobcat S770 — the wheeled skid-steer counterpart with the same 92 hp output; the key comparison for the wheels-versus-tracks decision.
• Bobcat T650 — the mid-frame Classic track loader one step down, with a Kubota engine.
• Kubota SVL Lineup Compared — the directly competing Kubota compact track loaders, rated on a comparable capacity basis.
